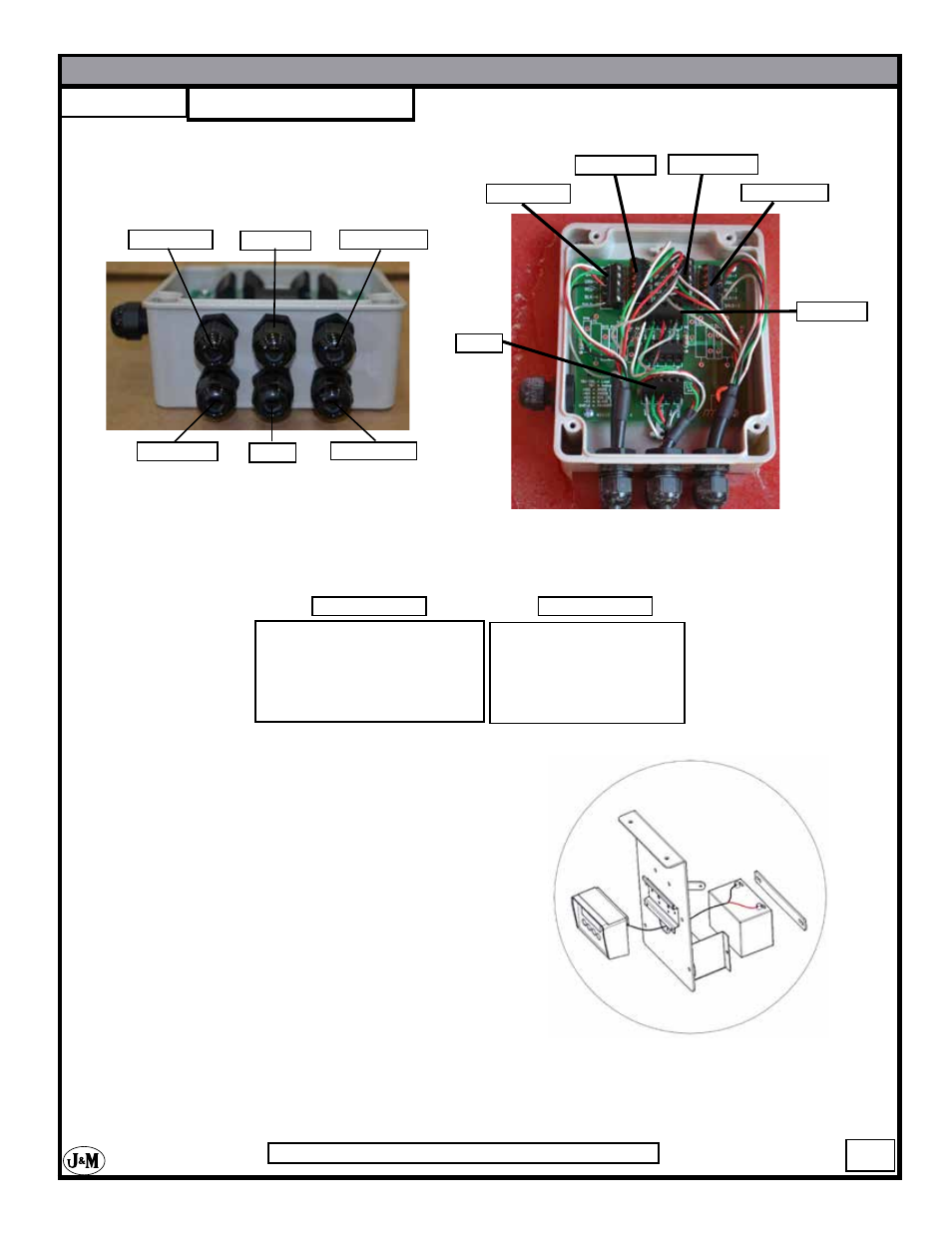

STEP - 92
Indicator
Hitch
Left Front
Left Rear Right Front
Right Rear
Left Front
Left Rear
Right Front
Right Rear
Indicator
Hitch
Insert all of the wires into the Junction Box according to the diagram above. Connect the wires to the
terminal of the Junction Box by matching the colored wires.
Junction Box Wiring Diagram
+Sig = White
-Sig = Red
+Exc = Green
-Exc = Black
Shield = Orange or Orange-White
Junction Box Wiring Diagram
+Sig = White
-Sig = Green
+Exc = Red
-Exc = Black
Shield = Orange
Weigh-Tronix Digi-Star
Once finished replace cover of the Junction Box.
Attach the cord wrap around the wires running from the frame
to the Junction Box.
Attach the cord wraps for all four rear weigh bars.
Connect the display screen to the battery. The red wire is to be
run to the positive side (+) and the black wire is to be run to
the negative side (-).
-Scale Option-
*Right & Left determined by facing the rear of cart.
