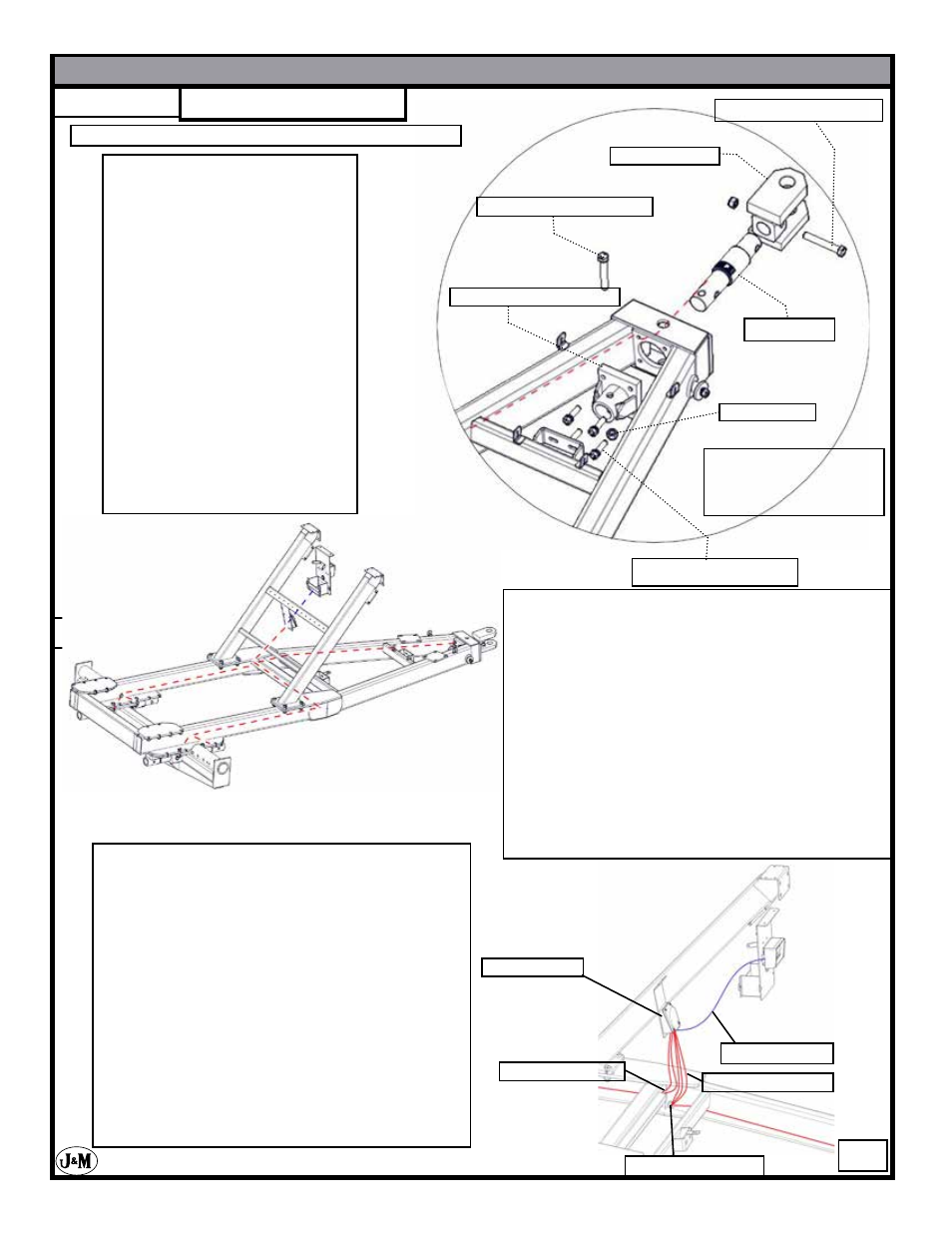

STEP - 2
STEP - 91
Feed the Weigh Bar wire through
the left side of the A-frame, exit-
ing out the grommet hole directly
behind the front leg weldment.
Use 3/4” x 3” Gr 5 bolts to attach
the Weigh Bar Weldment to the
A-frame.
Carefully slide the Weigh Bar
into the Weigh Bar Weldment
and attach it with 1” x 4 1/2” Gr 5
Bolt and locknut. Do not damage
Weigh Bar wire.
Attach Swivel Hitch with 1” x 5
1/2” Gr 5 Bolt and locknut to the
Weigh Bar.
3/4” x 3” Grd 8 Bolt
Weigh Bar
Weigh Bar Weldment
Swivel Hitch
1”x 4 1/2” Grd 5 Bolt
Feed wires from the right side weigh bars as
shown, through adapter plate then through the
frame.
Feed wires from left side weigh bars as shown,
through adapter plate, frame, then through the
cross bar on the frame (as shown in diagram to
the left).
Now all five wires should be ran to the left hole
above the center cross brace in the A- frame.
Junction Box
Indicator Wire
Right Weigh Bars
Left Weigh Bars
Hitch Weigh Bar
In the Junction Box are 7 connectors. The
connector that is on the left side of the Junc-
tion Box needs to be plugged. To install, loos-
en the connector, insert plug, then retighten.
Run indicator wire from back of the indicator
to the front center connector of the junction
box.
Run all five weigh bar wires to the Junction
-Box.
*See image on next page.
-Scale Option-
1” Locknut
*Right & Left determined by facing the rear of cart.
Note: Run wire from
weigh bar through left
side of frame as shown
1” x 6” Grd 5 Bolt
