J&M GC-31T Assembly - Manual (Page 4)

GC31
t
-1 G
rain
C
art
a
ssembly
-4-

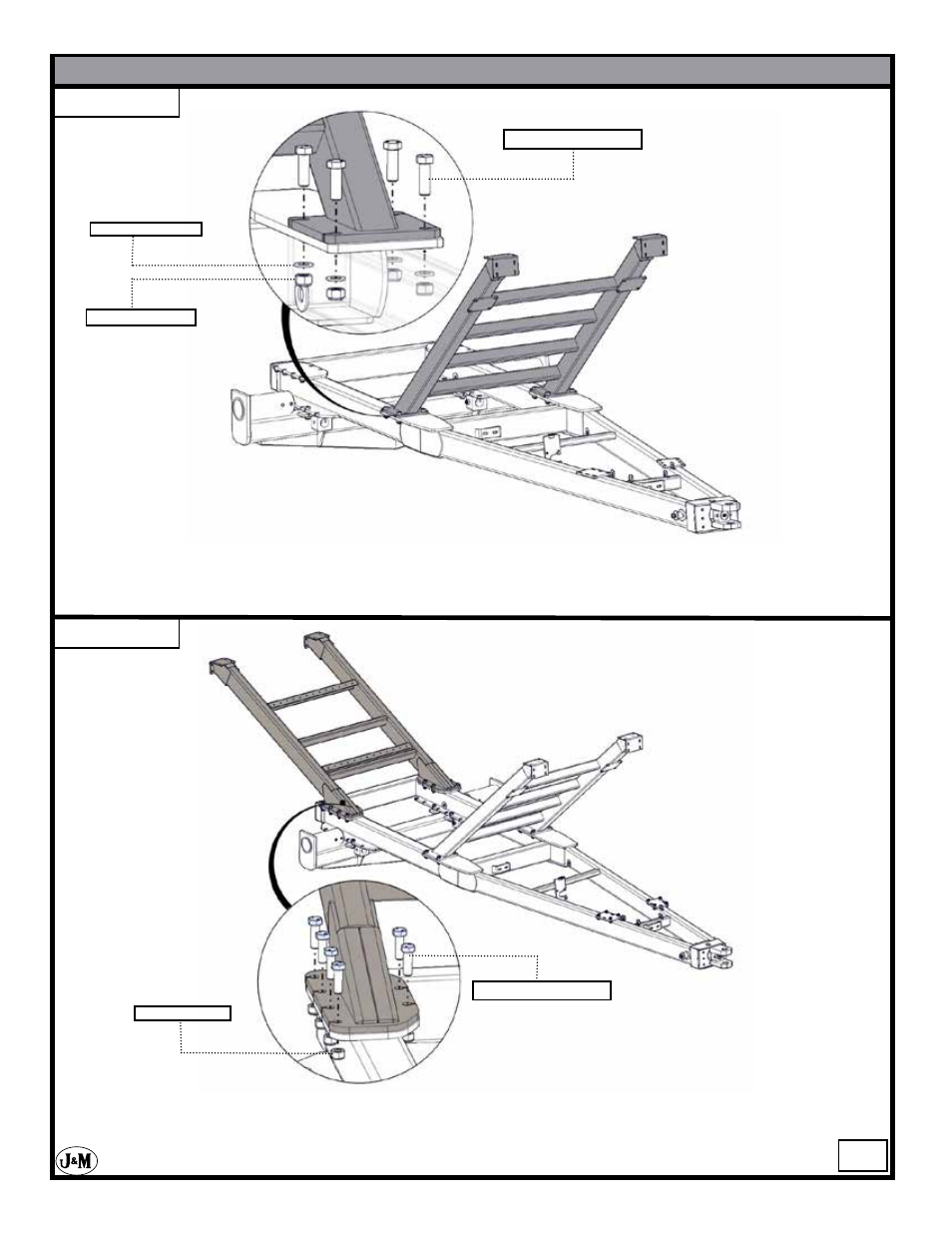

STEP - 6
STEP - 5
M24 Washer
M24 Lock Nut
Place the front leg onto the main frame using an overhead hoist. Use a drift pin to help line up the holes.
Attach the front leg with (8) M24 x 75MM hex head bolts, M24 washers, and M24 nylon locking nuts.
note: do not completely tighten. the legs will need to be able to slide for adjustment in a later step.
Place the rear leg onto the main frame using an overhead hoist. Use a drift pin to help line up the holes.
Attach the rear leg with (12) M24 x 75MM hex head bolts and (12) M24 nylon locking nuts.
The plate from the main frame then gets squared with the plate from the rear leg. Tighten bolts.
M24 Lock Nut
M24
x
75 MM B
olt
M24
x
75 MM B
olt
