J&M GC-31T Assembly - Manual (Page 3)

GC31
t
-1 G
rain
C
art
a
ssembly
-3-

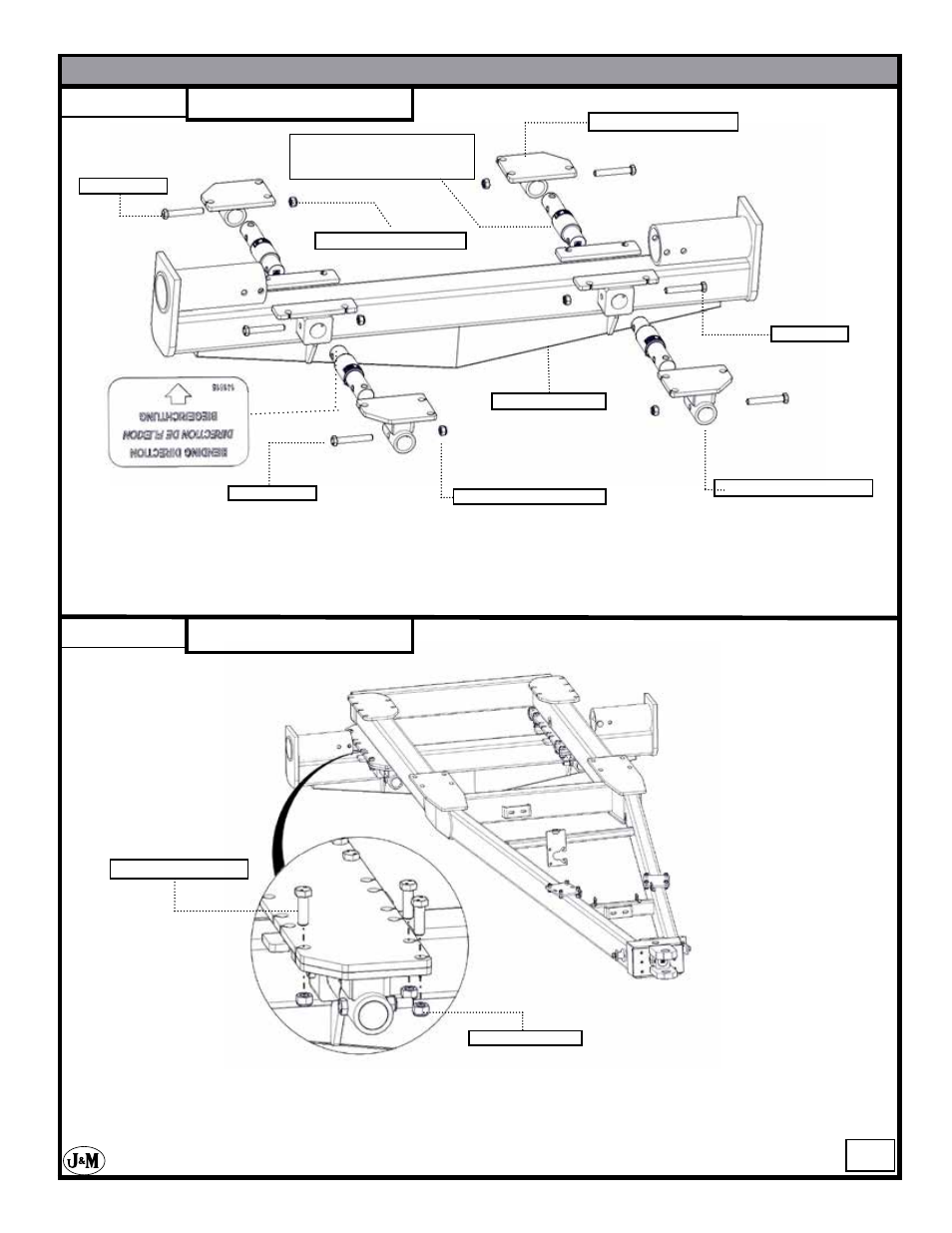

STEP - 4
STEP - 3
1”x 5” Bolt
1”x 5” Bolt
1”x 6” Bolt
1” Center Locking Nut
Left Scale Bar Mount
Right Scale Bar Mount
Axle Weldment
1” Center Locking Nut
Set the main frame onto the scale axle using an overhead hoist. Use a drift pin to line up the holes then
attach using (12) M24 x 75 MM hex cap screw bolts and (12) M24 nylon locking hex nuts. Make sure
scale wires are not in a position where they will be cut or smashed.
M24 Lock Nut
Set the axle weldment up on blocks. Insert four digistar weigh bars. Use 1” x 6” bolts to attach weigh
bars to axle weldment. Make sure that the arrows on all of the weigh bars are pointing up. Attach
the scale bar mounts to the weigh bars using 1” x 5” bolts. Be sure to use correct scale bar mounts in
correct positions. Use (8) 1” center locking nuts on the bolts.
-Scale Option-
-Scale Option-
M24
x
75 MM B
olt
Weigh Bar (short side
to the inside)
