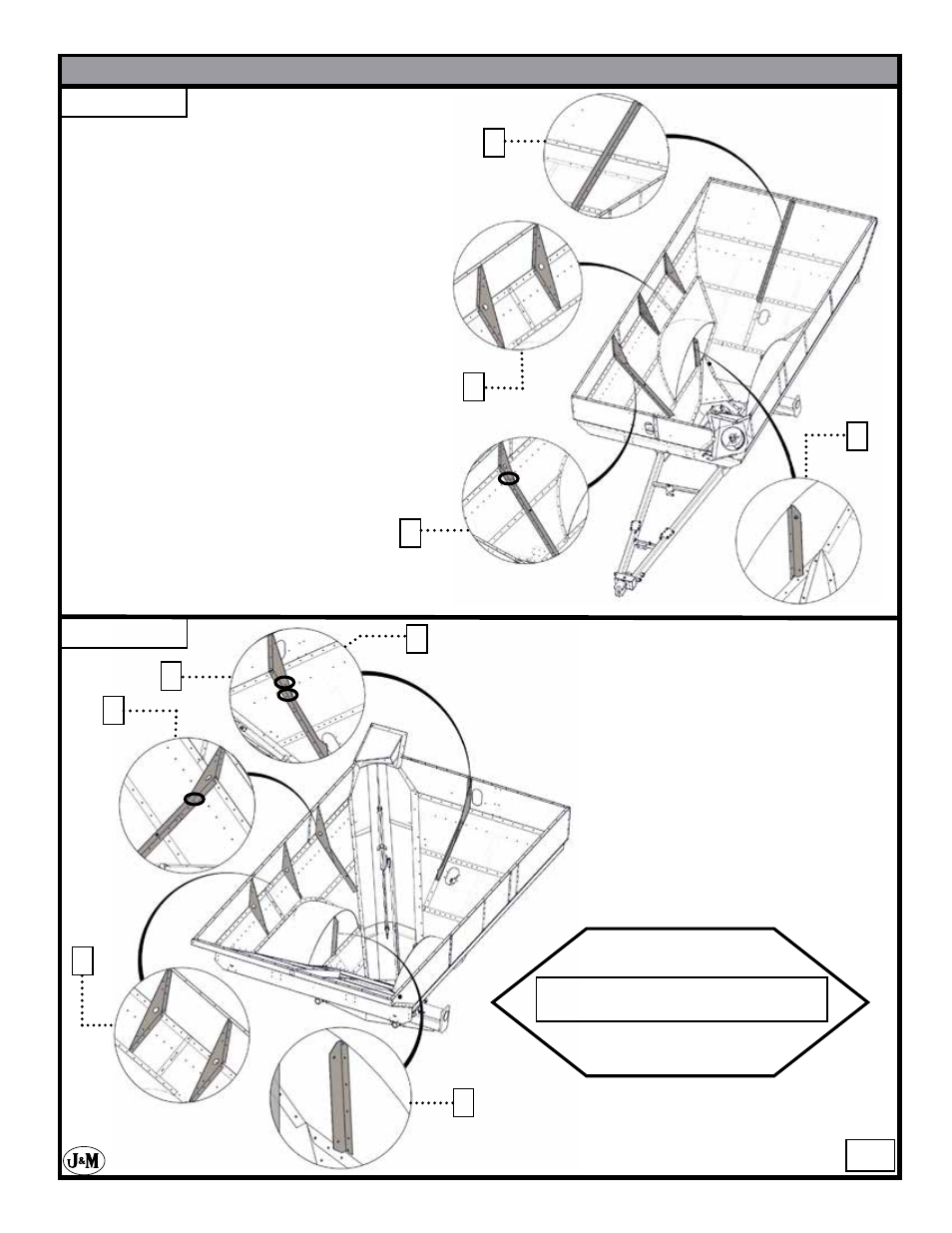

STEP - 59
Install the following items:
1. (3) Side Gussets
2. Fender Well Wall Support Brace
3. OAS Slope Brace
4. Rear Slope Brace.
Use (56) 8.8 M10 x 25 MM serrated
hex head bolts and (56) M10 serrated
hex nuts. Use (1) M12 hex head bolt
and (1) M12 serrated hex nut in the
outlined area.
Install the following items:
1. (3)Side Gussets
2. Tank Screen Support Brace
3. Front Side Gussets
4. AS Front Slope Brace
5. Front Slope Brace
Use (52) 8.8 M10 x 25 MM serrated
hex head bolts and (52) M10 serrated
hex nuts. Use (3) M12 hex head bolts
and (3) M12 serrated hex nuts in out-
lined areas.
STEP - 60
1
2
3
4
3
4
1
2
5
tighten all remaining bolts that are
not yet tightened,
