STEP - 75
STEP - 76
-39-

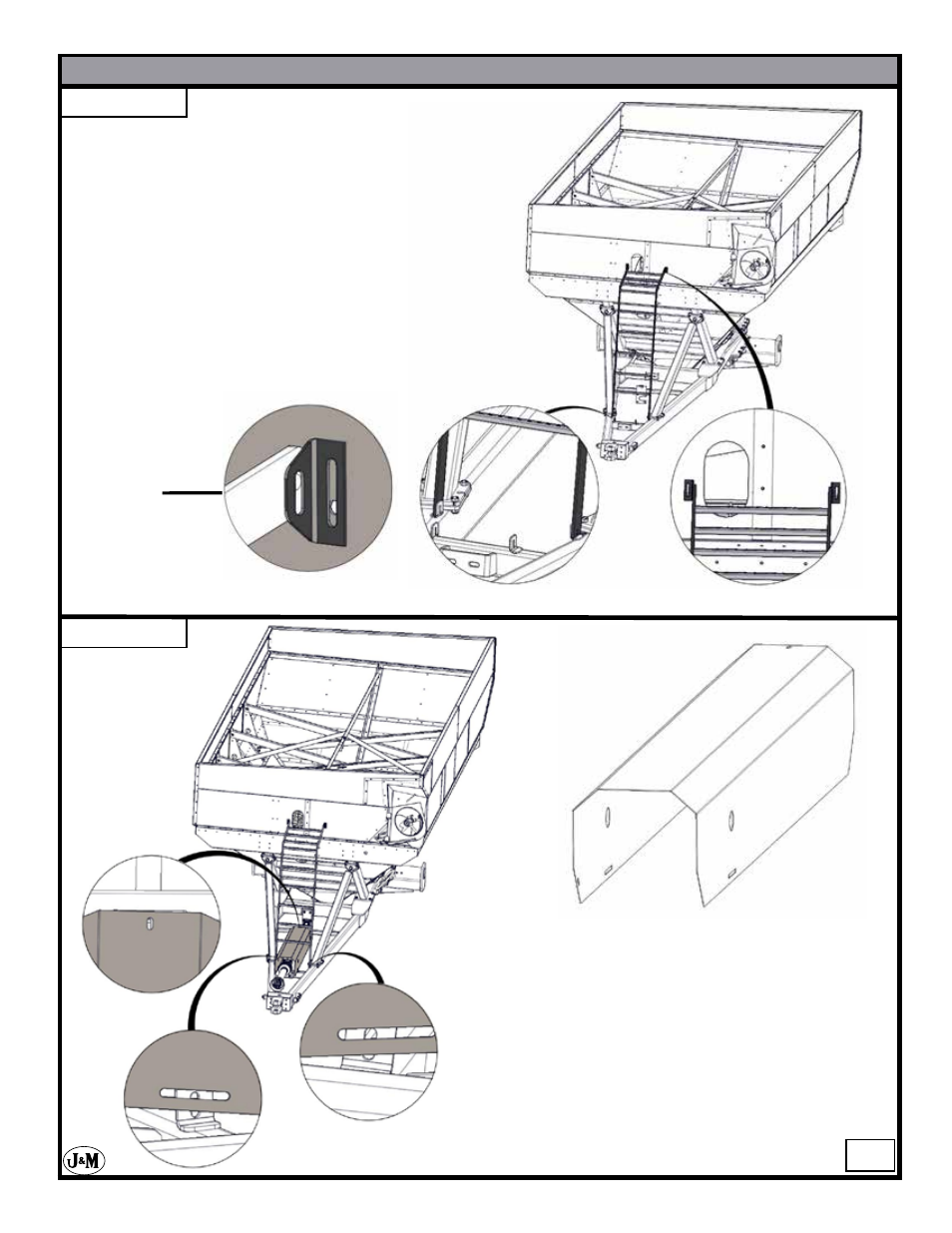

Install drive line shield. Use
(3) M10 x 25MM serrated hex
head bolts and (3) M10 serrated
hex flange nuts to attach the
drive line shield to the frame.
Install the ladder assembly. First attach the
ladder brackets to the front panels. Use (2)
M10 x 25MM serrated hex head bolts and
(2) M10 locking nuts. Now install the ladder.
Attach the top of the ladder to the brackets
using (2) M10 x 25MM serrated hex head
bolts and (2) M10 locking nuts. Use the same
hardware to attach the ladder to the bottom
brackets which are welded to the frame.
Right Ladder
Bracket
