Page 3 TG32D
Section B: Schematic Diagram

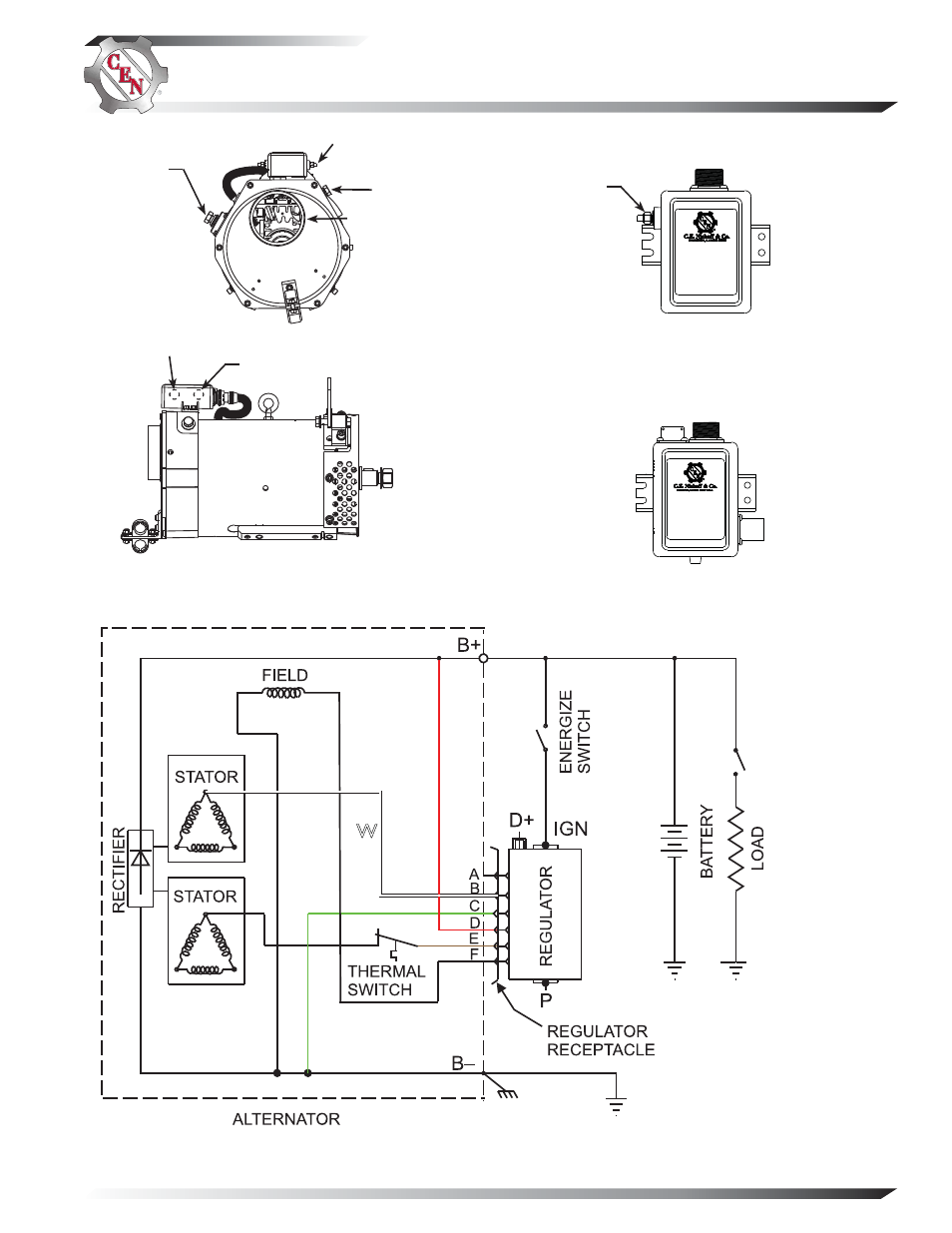

Figure 7 — C803D Alternator Schematic Diagram (A2-330, A2-336 & A2-361 Regulators Shown)
B– Terminal
B+ Terminal
D+ Terminal
IGN Terminal
Figure 4 — C803D Alternator and A2-330, A2-336,
& A2-346 Regulator Terminals
P Terminal
Open duct
IGN Terminal
Figure 6 — A2-363 Regulator Terminals
No External
Terminals
BR
R
G
W BK
*
* Pin B is not used in
regulator circuit
** Not available on A2-361
**
**
Figure 5 — A2-361 Regulator Terminals
