C.E. Niehoff & Co. N1375: N7289 DE Housing Installation User Manual

Page 3

background image

Page 3

II0073A

TWO 3/4” dia.
GRAY INSULATORS

TWO 3/4” dia.
GRAY INSULATORS

.25 x .3 x .9 INSULATOR

5/8” FLAT WASHER

5/8” FLAT WASHER

5/8” FLAT WASHER

BELLEVILLE WASHER

BELLEVILLE WASHER

5/8” WHITE INSULATOR

FUSE LINK

9/16” FLAT WASHER

BRASS NUT

Part

Qty. Req’d for Each Diode

Item

Number

Description

POS

NEG

N9351

3/4” dia. GRAY INSULATOR

2

2

N9338

5/8” FLAT WASHER

2

1

N9062

9/16” FLAT WASHER

1

N/A

N9346

BRASS NUT

1

1

N9347

BELLEVILLE WASHER

1

1

N9333

FUSE LINK 1 spans both diodes

N9352

.25 x .3 x .9 INSULATOR

N/A

1

N9349

5/8” WHITE INSULATOR

N/A

1

+

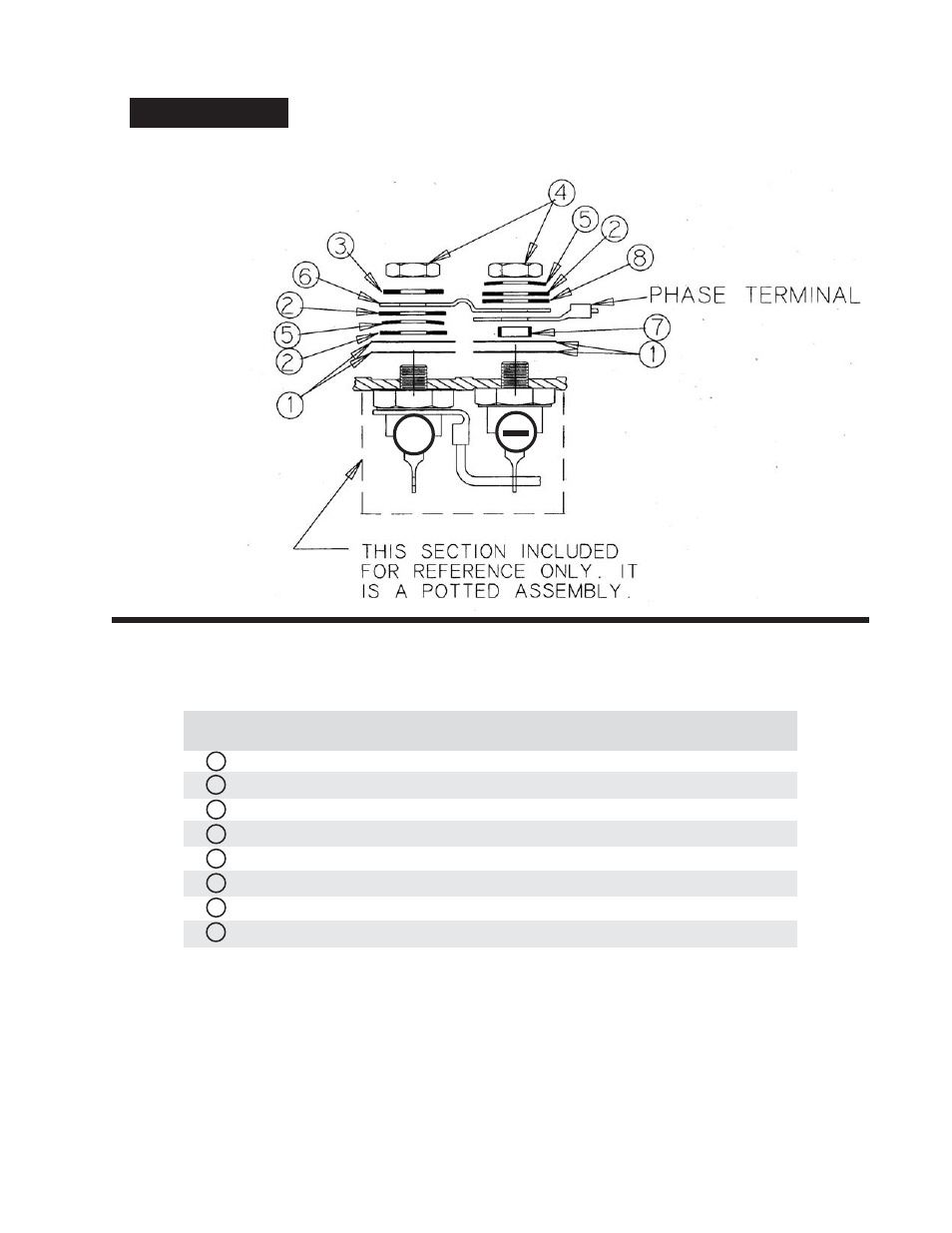

FUSE LINK STACKING ORDER

Fuse links must be installed in stacking order shown below.

DANGER

Failure to follow fuse link stacking order below or to install fuse links where shown on
page 2 will cause severe damage to equipment.

1
2
3
4
5
6
7
8

FUSE LINK PAIR PARTS LIST
