C.E. Niehoff & Co. N1375: N7289 DE Housing Installation User Manual
Page 2
II0073A
Page 2
+
+
+
+
+
+
+
+
+
+
+
+
+
PHASE LEAD
NEGATIVE DIODE
POSITIVE DIODE
P1
P1
P2
P3
P4
P5
P6
FUSE LINK
(1 per pair)
FUSE LINK
(1 per pair)
FUSE LINK
(1 per pair)
LEGEND:

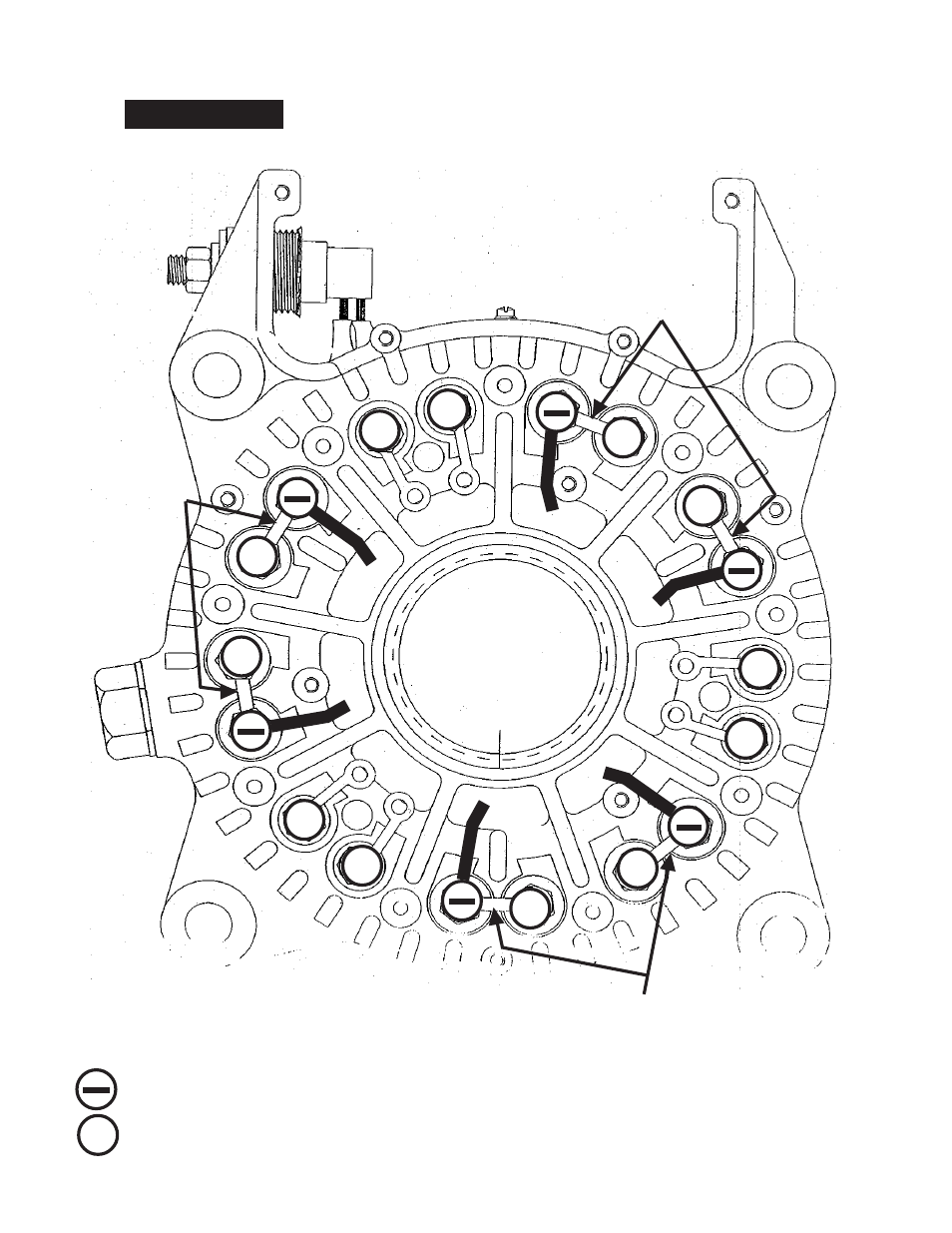

FUSE LINK INSTALLATION
Fuse links must be installed in locations shown below. Connect phase leads to negative diodes as indicated.
DANGER
Failure to install fuse links where shown below or to follow fuse link stacking order on
page 3 will cause severe damage to equipment.
