Oem installation instructions, Ii71e page 1 of 2

b. Re-install regulator on drive end housing and
torque mounting screws to 8.5 Nm/75 lb. in.
2. Install alternator:
a. Carefully place alternator on alternator
mounting bracket.
Use caution when lifting alternator
to prevent possible minor personal
injury. Use hoist along with alterna-
tor lifting ring located on top of
alternator.
b. Secure alternator to alternator mounting
bracket using four 1/2-13, grade 5 or higher
mounting bolts with lock washers. Mounting
bolts should extend 17.8/25.4 mm (0.7/1.0 in.)
into alternator mounting rail. Torque mounting
bolts to 88 Nm/65 lb. ft.
3. Units are shipped with pulley and hardware already
assembled. Install alternator drive belt and secure
belt tension bracket assembly. Loop alternator drive
belt over pulleys and align belt with polyvee grooves.
II71E
Page 1 of 2
C701/C701A and C703/C703A
Alternators
OEM Installation Instructions
This symbol is used to indicate the
presence of hazards that can cause
minor personal injury or property damage.
CAUTION
1. A2-213, A2-214, and A2-325 regulators are
flat-temperature compensated and factory-set at
lowest setting to accommodate 8D batteries. For
other batteries:
a. Remove regulator from housing and change
position on voltage selector switch. See Table 1.
CAUTION

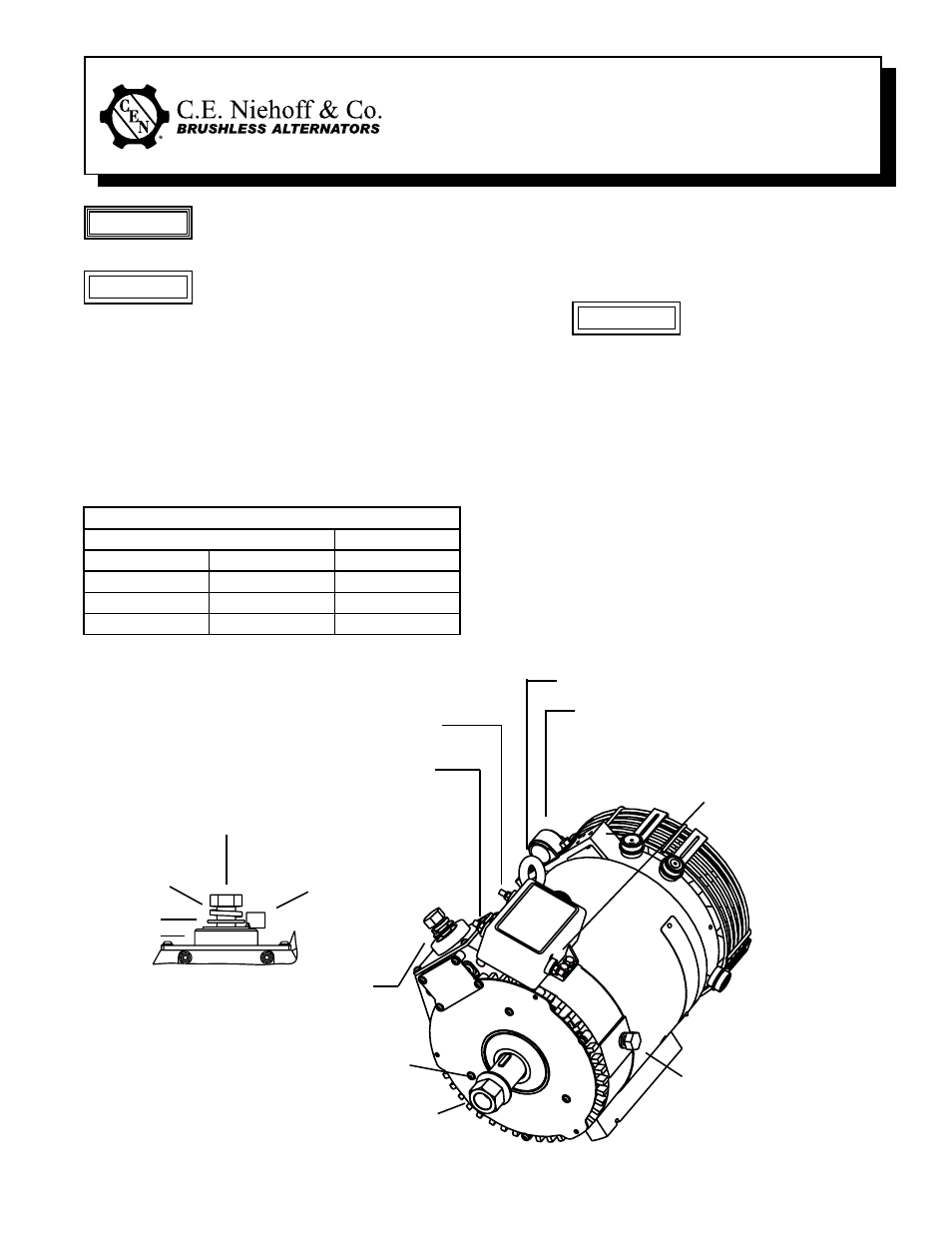

Figure 1 - C701/C701A/C703/C703A Alternator Installation Details
* Use this setpoint to maintain proper battery charge level during
shorter operating cycles.
B+ terminal –
see inset above
C701/C701A: B– terminal 3/8-16
bolt – torque to 15 Nm/11 lb. ft.
C703/C703A: B– terminal M10
bolt – torque to 15 Nm/11 lb. ft.
A2-214/A2-325: D+ terminal 1/4-20 nut – torque to 3.4 Nm/30 lb. in.
A2-213: D+ terminal M6 nut – torque to 4.5 Nm/40 lb. in.
A2-214/A2-325: IGN terminal #10-24 nut – torque to 3.4 Nm/30 lb. in.
A2-213: IGN terminal M5 nut – torque to 4.5 Nm/40 lb. in.
C701/C701A: 3/4-16 nut – torque to 163 Nm/120 lb. ft.
C703/C703A: M20 x 1.5 mm flange nut – torque to
163 Nm/120 lb. ft.
C701/C701A: Hardened flat washer
C703/C703A: Belleville washer
C701/C701A: 1/2-13 bolt – torque to 30 Nm/22 lb. ft.
C703/C703A: M12 bolt – torque to 30 Nm/22 lb. ft.
Flat washer
Battery output
cable terminal
Lock washer
Insulator
Cable clamp
Alternator lifting ring
A2-214/A2-325: P terminal 1/4-20 nut –
torque to 3.4 Nm/30 lb. in.
A2-213: P terminal M6 nut –
torque to 4.5 Nm/40 lb. in.
If an extended wiring harness is supplied with
alternator and regulator, see separate instructions
packed with harness.
Table 1 – Regulator Voltage Selector Switch Position
Position
Battery Type
1
27.5 V
Maintenance
2
28.0 V
Maintenance*
3
28.5 V
Maintenance-Free
4
29.0 V
Maintenance-Free*
This symbol is used to indicate the presence
of hazards that can cause severe personal
injury or substantial property damage.
WARNING
