j. Reconnect stators with interconnect splice:
1) Slide new sleeve over end of DE or ADE lead.
2) Crimp new connector socket on the DE
stator Y lead. Crimp new connector pin on
the ADE stator Y lead. Securely mate the
connectors.
3) Apply hi-temp solder over mated connection.
4) Completely cover mated connection with
Dow Corning ® SE 9186L RTV coating or
equivalent—wait until coating has hardened
to ensure waterproofness.
5) Position new sleeve over sealed connection.
6) Position spliced Y leads against wall of shell
so that field coil can fit into space between
stators without damaging interconnect splice
or Y leads.
Interconnect
splice
Return to CEN 600 Series Service Manual SM6
to fi nish C621 alternator assembly
Connector
socket
Connector pin
Sleeve

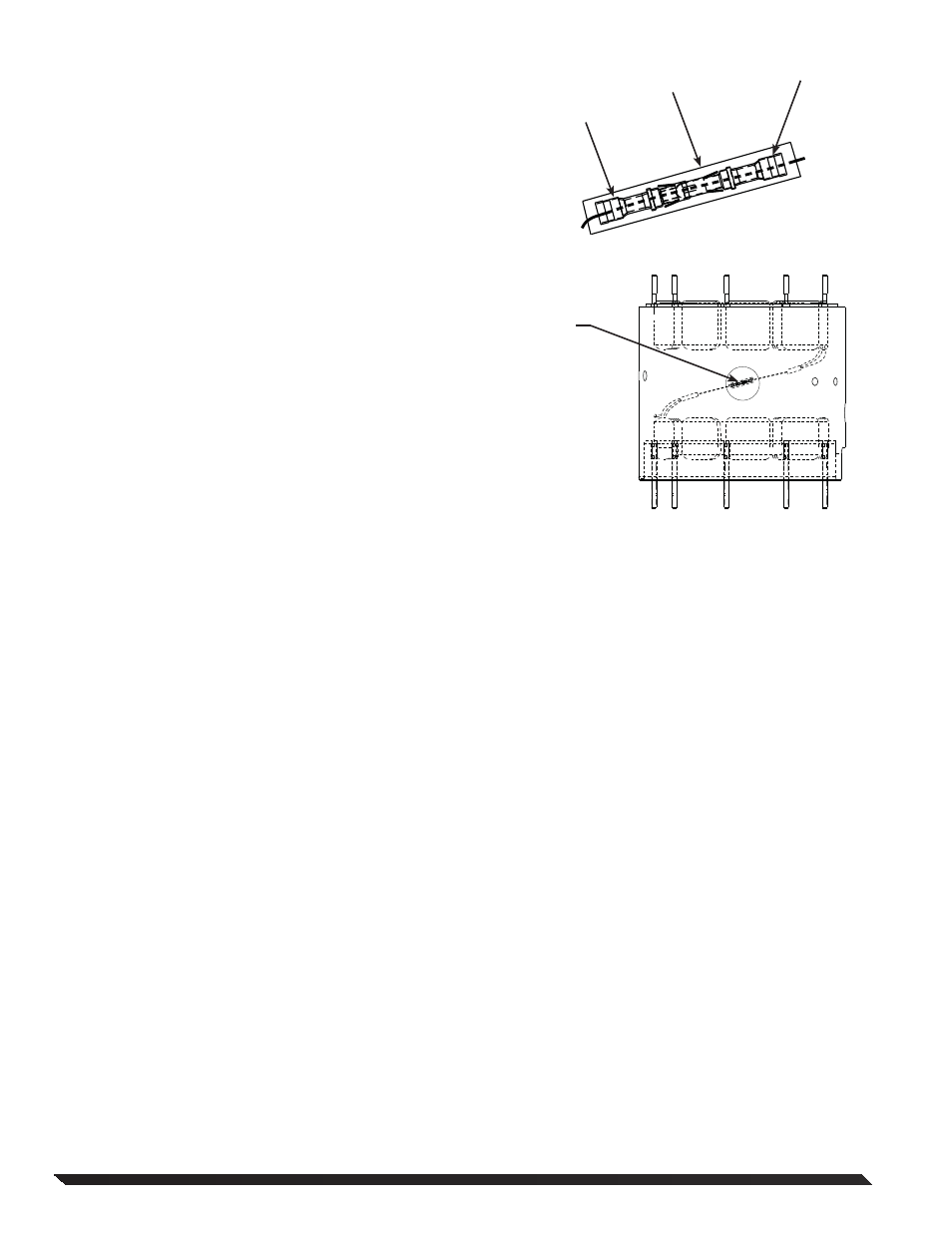

Figure F–1e Interconnect Splice Assembly
