C.E. Niehoff & Co. C621 Stator Replacement Instructions - Manual (Page 2)

Section F in CEN 600 Series Service Manual
SM6:
2. Install new ADE Stator or both new ADE/
DE Stators
Do not damage phase leads
when inserting stators in shell.
a. Set new ADE stator (longer phase leads face
down) on ADE edge of shell. Align scribe mark
on shell where tab is missing on ADE stator.
Arrange CEN A10–136 stator insertion tool on
stator. See Figure F–1a.
b. Press new ADE stator into position using a
spray lubricant if necessary. Make sure the
stator stops on the ledge inside the shell.
See Figure F–1a.
c. From the anti-drive end, insert 6 insertion
studs provided with CEN A10-136 stator inser-
tion tool into new ADE stator. See Figure F–1b.
CAUTION
NOTICE
If replacing ADE stator or both
stators, start with step 2a.
If replacing DE stator only, start
with step 2d.

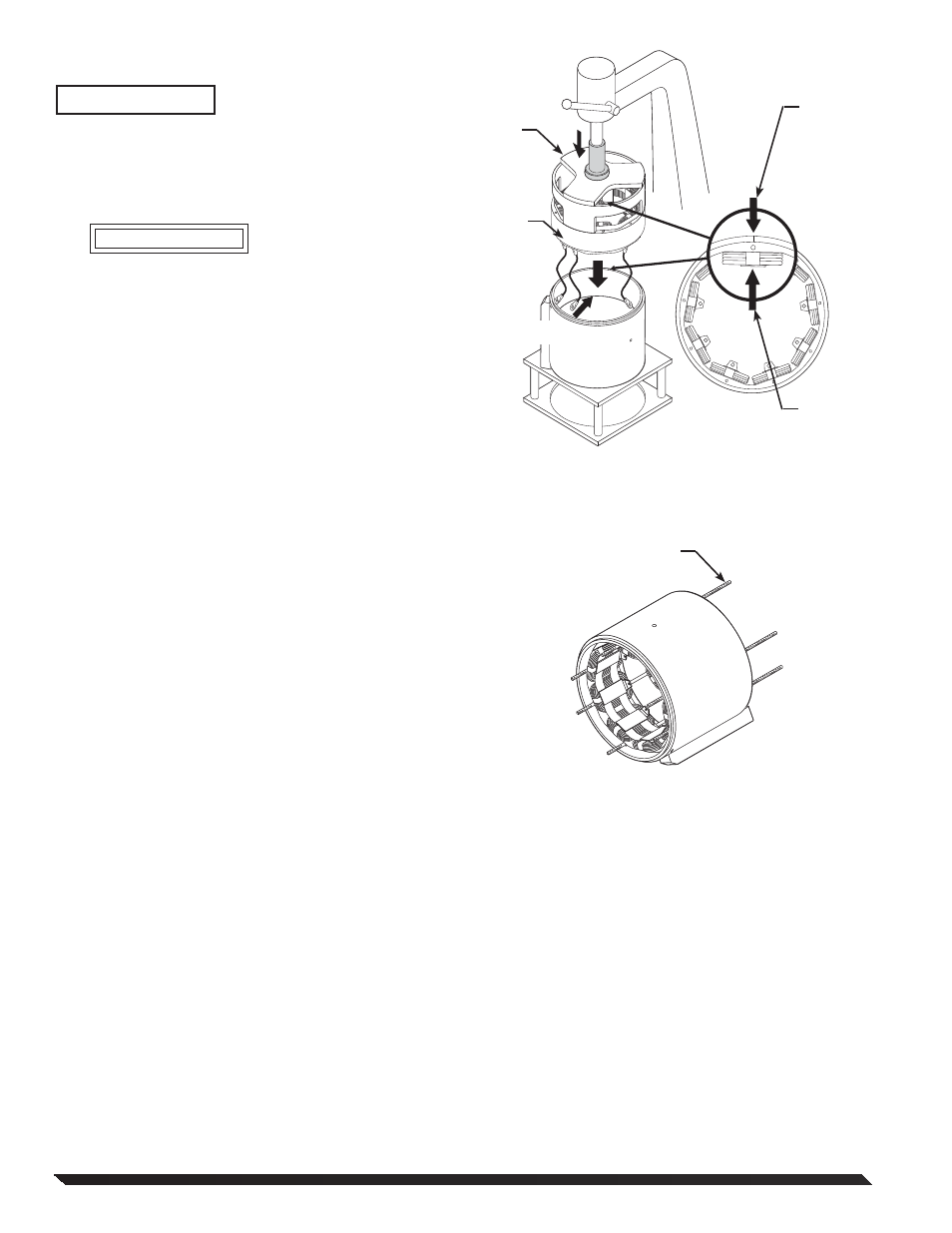

Figure F–1a ADE Stator Assembly
ADE stator
Missing
tab on
ADE stator
Ledge inside shell
A10–136
stator
insertion
tool
Original
scribe
mark
on shell
Figure F–1b Stator Insertion Studs
Stator
insertion
studs (6)
Page 2 of 4 II202A
