68 Appendices
To configure the PC with a fixed IP address:
1. Click Start | Settings | Control Panel
2. Double click on Network Connections
3. Double click on the connection that is used to connect to the ADL3,
usually Local Area Connection
4. Click Properties
5. Select Internet Protocol (TCP/IP) from the list
6. Click Properties
7. Select Use the following IP address

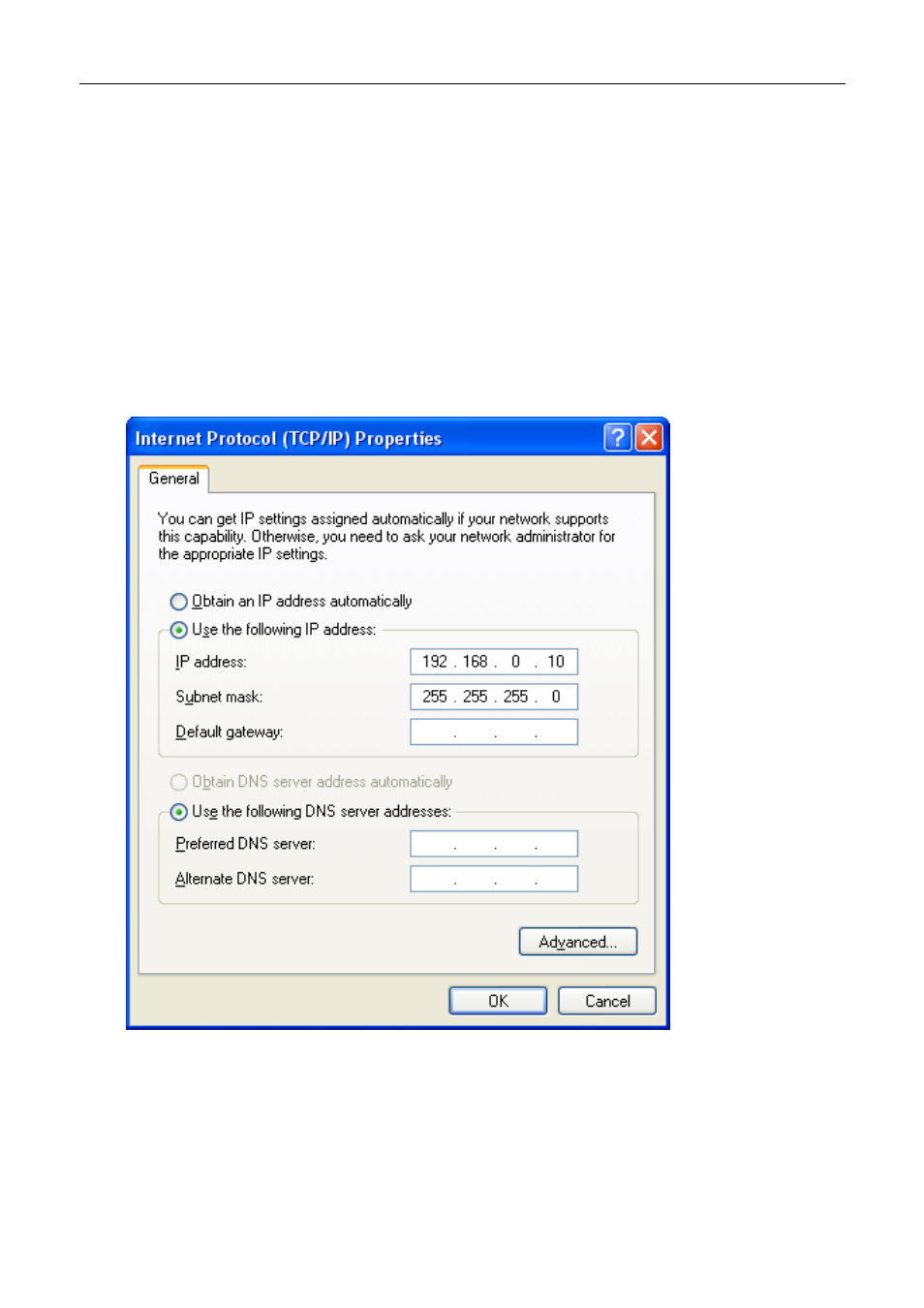

8. Enter the IP address and Subnet mask shown below.
Network Connection
The ADL3 can also be connected to a network rather than directly to a single
PC. This allows any PC on the network to communicate with the ADL3.
The connection time to the ADL3 will be less than 3 seconds (if the ADL3 is
already powered and running)
Note: The PC network settings should not be changed.
