Heatshrink Boots
Straight:
Raychem 202K153 or 202K163,
Hellerman
156-42-G or 157-42-G
Right Angle:
Raychem 222K153 or 222K163,
Hellerman
1156-4-G or 1157-42-G
PC Connection

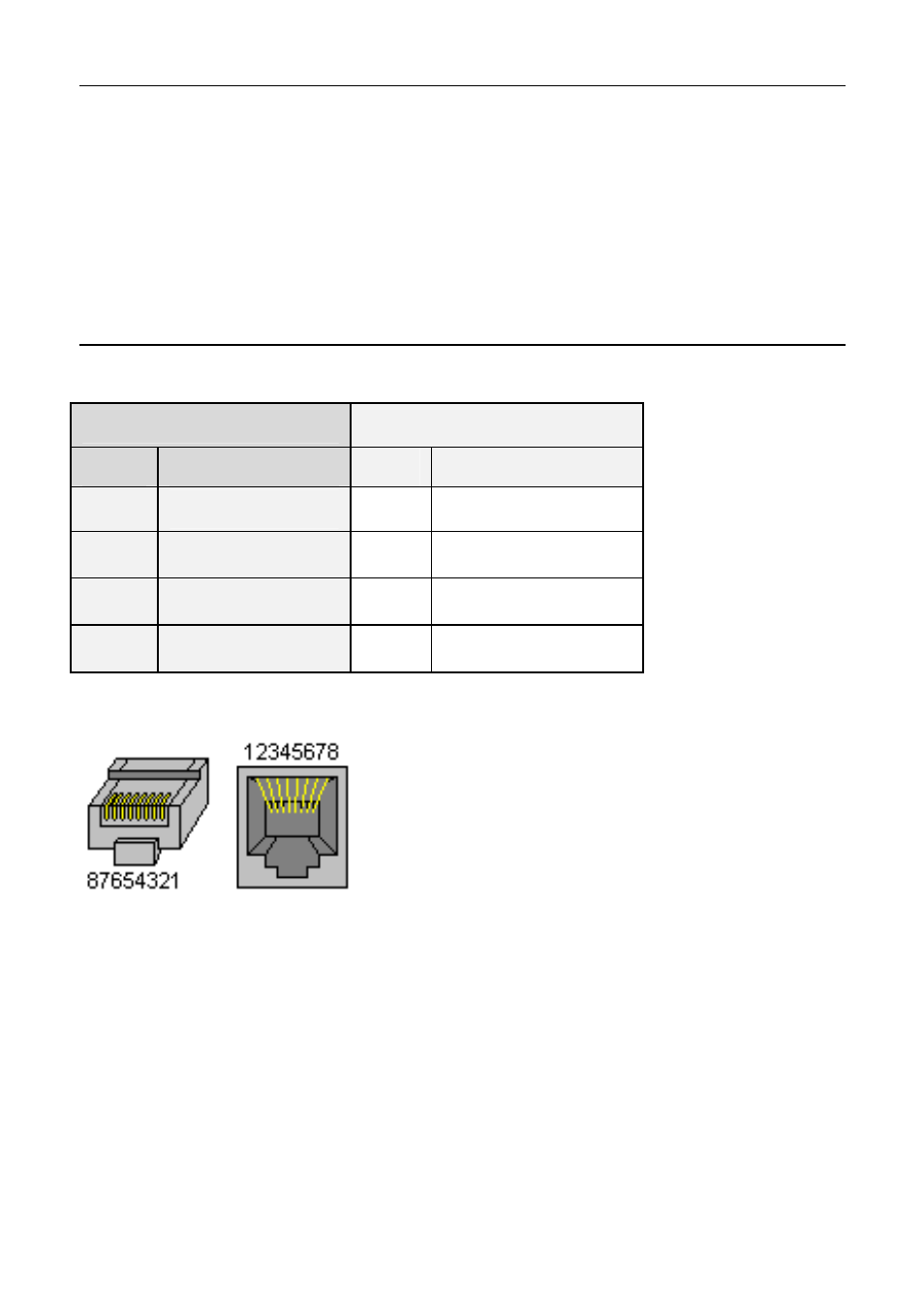

Ethernet Wiring Schematic:
ADL3
Ethernet Connector pin
Pin
Function
Pin
Function
67
Ethernet TX +
1
Ethernet RX +
68
Ethernet TX –
2
Ethernet RX –
77
Ethernet RX +
3
Ethernet TX +
78
Ethernet RX –
6
Ethernet TX –
Pin numbering
Wire
CAT5 UTP Ethernet cable
Cable
An Ethernet RJ45 socket, connecting to a standard Ethernet cable, is
provided on:
• #61213 ADL3 loom incorporating
• #61131 Ethernet cable, unterminated, 2 meter
• #61132 Ethernet to Autosport pins cable, 1.8 m
Plug Socket
