S70 DeviceNet Servo
Installation & Maintenance Manual
2000 BRAY CONTROLS
Page 23 of 24
4.3 DeviceNet Network Errors
If the DeviceNet LED D17 (
Figure 1) remains a solid or flashing Red color, then a DeviceNet network error has occurred.

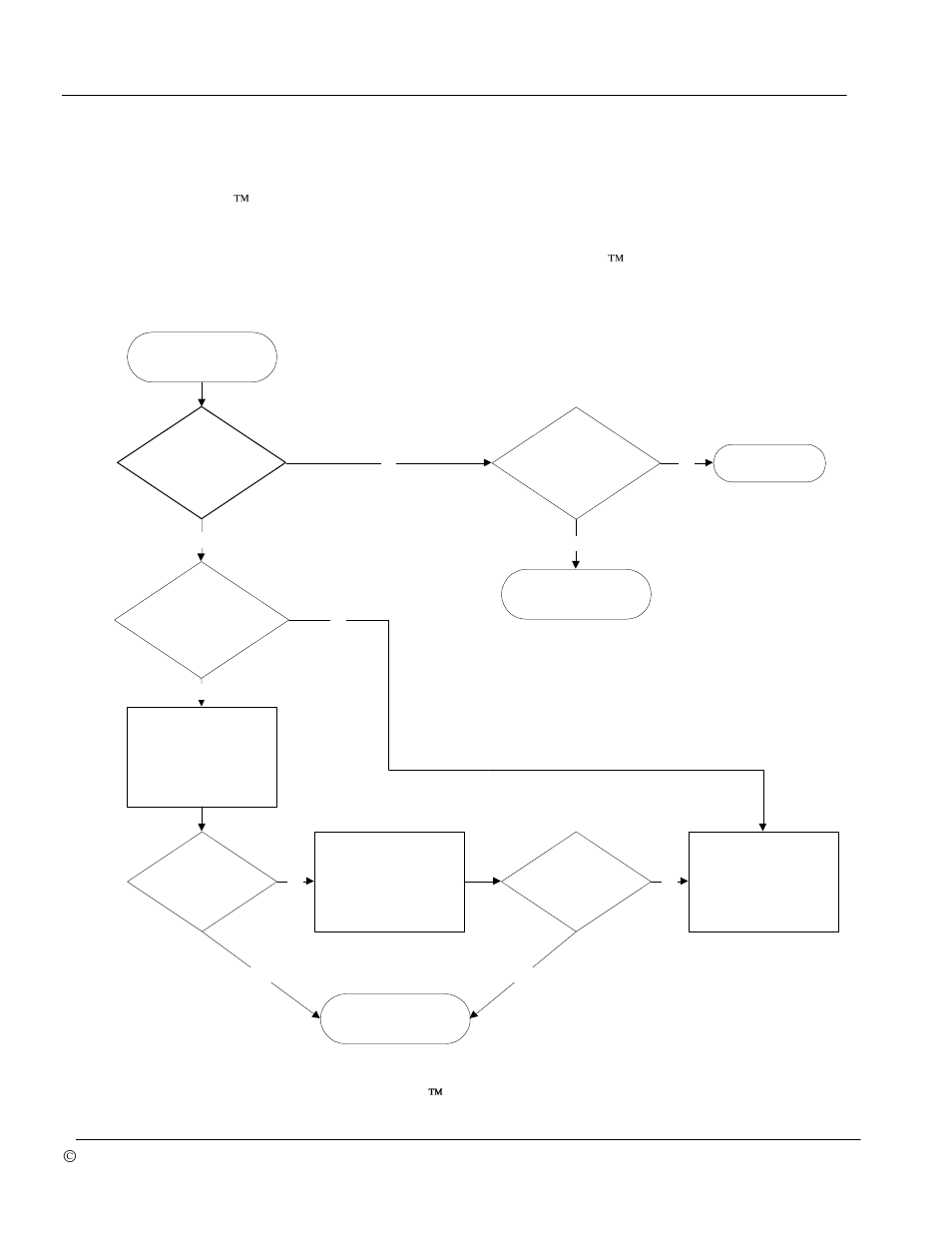

Refer to the flow chart in Figure 10 as a trouble-shooting guide.
DeviceNet Network
Trouble-shooting Start
LED D17 Flas hing or
Solid RED?
No
LED D17 Flas hing or
Solid Green?
No Power to the
S70
No
Yes
Was the S70 jus t
added to the Network?
Yes
Yes
Possible Duplicate
MacID. Refer to the
Duplicate MacID
Trouble-shooting
Section
DeviceNet Network is
Good, S70 is online
DeviceNet Network is
Good, S70 is online
Network LED
Flashing Green?
Network LED
Flashing Green?
Possible Baud Rate
Error. Refer to the
Baud Rate Trouble-
shooting Section
Possible Network
Power or connection
error. Refer to the
Network Connections
Trouble-shooting
Section
No
No
Yes
Yes
No
Figure 10: DeviceNet
Network Trouble-shooting guide
