DCR600-20

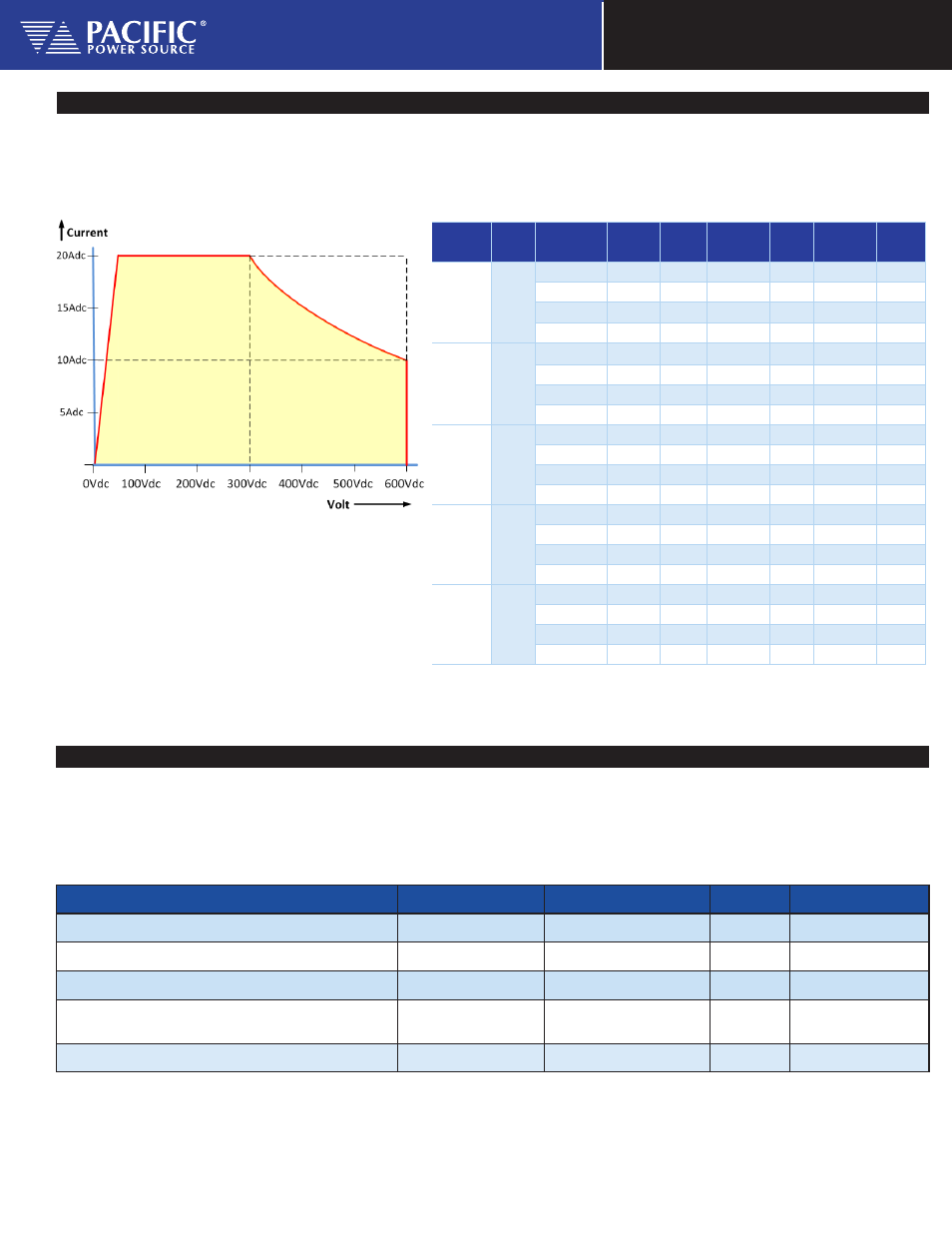

DC Output Power Rating Curve
Chart shown assumes AC Power Source model used is capable of supplying the required AC current as demanded by the DC
load on DCR output at the programmed voltage. Check relevant Pacific Power Source AC Model data sheet for AC voltage
and current rating charts.
Rated Continuous Load Current as a Function of Output Voltage
MODEL VA Vrange
Coupling
Vmax LN Vset
(AC)
Available
Arms
/Phs @ Vset
Vdc DC Curr.
(Adc)
Power
305AMXT 500
Direct 135 125 1.50 250 2.2 551
1.5:1 202 187 1.00 375 1.5 550
2.0:1 270 250 0.75 502 1.1 551
2.5:1 338 299 0.60 600 0.9 527
308AMXT 750
Direct 135 125 2.00 250 2.9 735
1.5:1 202 187 1.30 375 1.9 715
2.0:1 270 250 1.00 502 1.5 735
2.5:1 338 299 0.80 600 1.2 703
320AMXT 2000
Direct 135 125 6.00 250 8.8 2205
1.5:1 202 187 4.00 375 5.9 2200
2.0:1 270 250 3.00 502 4.4 2205
2.5:1 338 299 2.40 600 3.5 2110
345AMXT 4500
Direct 135 125 12.00 250 17.6 4410
1.5:1 202 187 8.00 375 11.7 4399
2.0:1 270 250 6.00 502 8.8 4410
2.5:1 338 299 4.8 600 7.0 4219
360AMXT 6000
Direct 135 125 13.6 250 20.0 4998
1.5:1 202 187 10.70 375 15.7 5884
2.0:1 270 250 8.00 502 11.7 5880
2.5:1 338 299 6.40 600 9.4 5626
All Data shown for 3 Phase Mode (FORM3)
Avionics DC Test Sotware Options
Owners of the DCR option may use the growing library of Avionics Compliance Test Sequence Software to perform DC
Power Group testing at either 28Vdc, 135Vdc or 270Vdc. The DC Test Sequence are included in the Avionics Test Options
available from Pacific Power Source for use with its UPC Studio Test Manager Windows Software. The table below shows
currently supported test standards. Contact Pacific Power Source to check on availability of DC test sequences.
Manufacturer / Organization Test Standard Airframe Revision PPS Part Number
Airbus Industries, Europe ABD0100.1.8 A380 E 149102
Airbus Industries, Europe ABD0100.1.8.1 A350 C 149125
Boeing, USA 787B3 787 Dreamliner C 149126
Radio Technical Commission for Aeronautics
(RTCA)
DO160, Section 16 Commercial Aviation G 149124
US Department of Defense (DoD) MIL-STD-704 Military Aviation F 149101
