DATA SHEET > NetWave Series 1-phase > 20130304

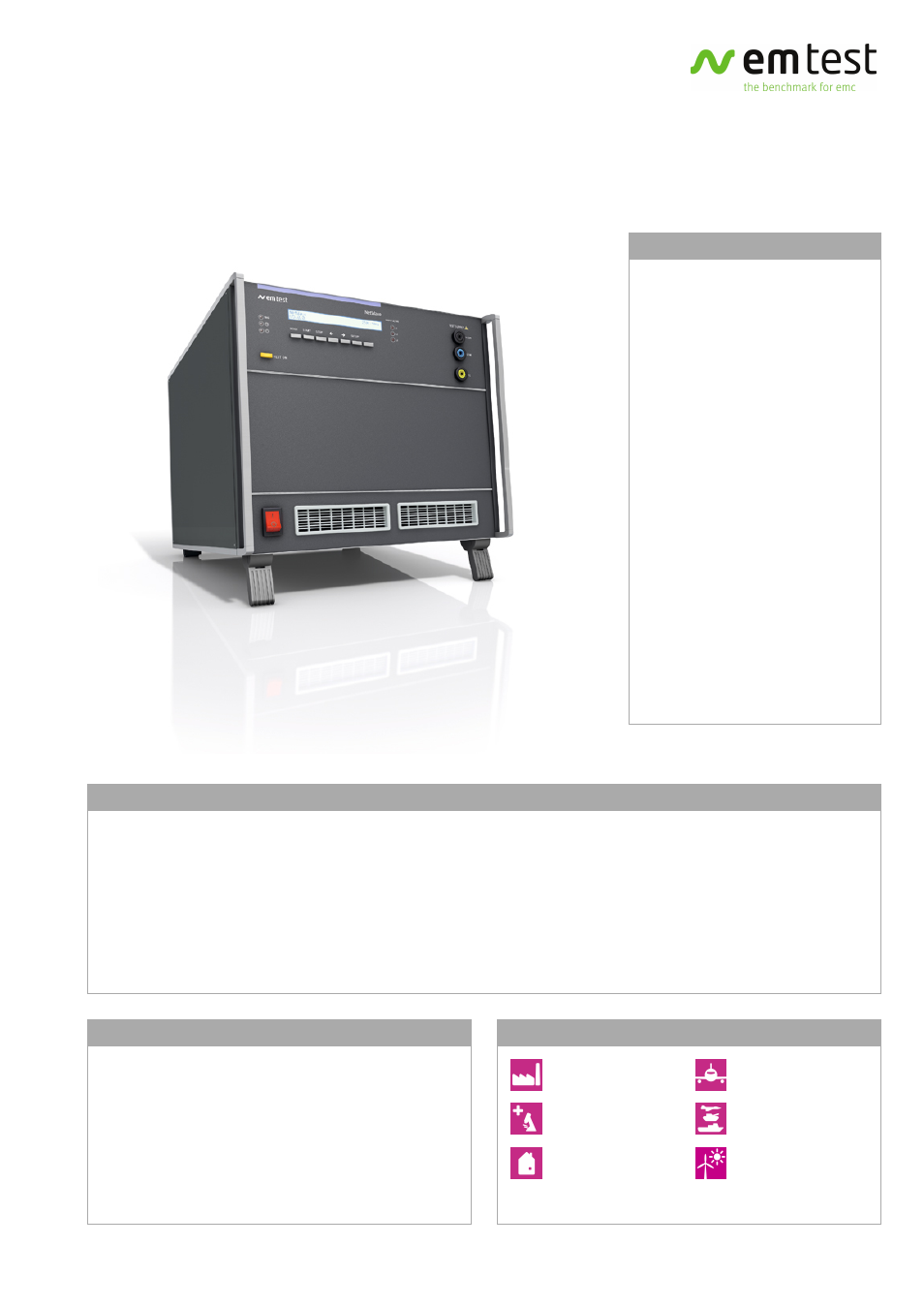

NETWAVE SERIES (1-PHASE)
SINGLE PHASE MULTIFUNCTIONAL AC/DC POWER SOURCES
FOR TESTS ACCORDING TO ...
> AIRBUS
> BOEING
> DO 160 Section 16
> EN 61000-3-11
> EN 61000-3-12
> EN 61000-3-2
> EN 61000-3-3
> EN 61000-4-11
> EN 61000-4-13
> EN 61000-4-14
> EN 61000-4-17
> EN 61000-4-28
> EN 61000-4-29
> IEC 61000-3-11
> IEC 61000-3-12 Ed.2:2011
> IEC 61000-3-2
> IEC 61000-3-3
> IEC 61000-4-11
> IEC 61000-4-13
> IEC 61000-4-14
> IEC 61000-4-17
> ...
NETWAVE - SIMULATION OF THE MOST REQUIRED POWER SUPPLY PHENOMENON
The NetWave series (1-phase) are single phase AC/DC power sources, specifically designed to meet the requirements as per
the standards IEC/EN 61000-4-13, -4-14 and -4-28. Used as a DC power source it covers the requirements as per the
standards IEC/EN 61000-4-17 (Ripple on DC) and IEC/EN 61000-4-29 for voltage dips and interruptions on DC supplies.
With its low distortion and high stability, even if supplying dynamic loads, the NetWave series guarantees full compliant
measurements for harmonics and flicker testing as per IEC/EN 61000-3-2,-3-3, -3-11 and -3-12 as well as JIS C 61000-3-2.
The NetWave series is well suited for testing inverters (e.g. solar power, wind power) and e-vehicles.
Additionally, the NetWave series (1-phase) offers the necessary capabilities for avionics testing as per DO-160, Airbus
ABD0100 and Boeing as well as per MIL-STD-704.
HIGHLIGHTS
> Wide Power Bandwidth; DC - 5kHz
> Output Power up to 7,500VA AC and 9,000W DC
> Output Voltage max. 360V AC and +/- 500V DC
> High Inrush Current Capability up to 200A
> Extended trigger and control capabilities
(NetWave 7.3)
APPLICATION AREAS
INDUSTRY
MEDICAL
RESIDENTIAL
AVIONICS
MILITARY
RENEWABLE ENERGY
