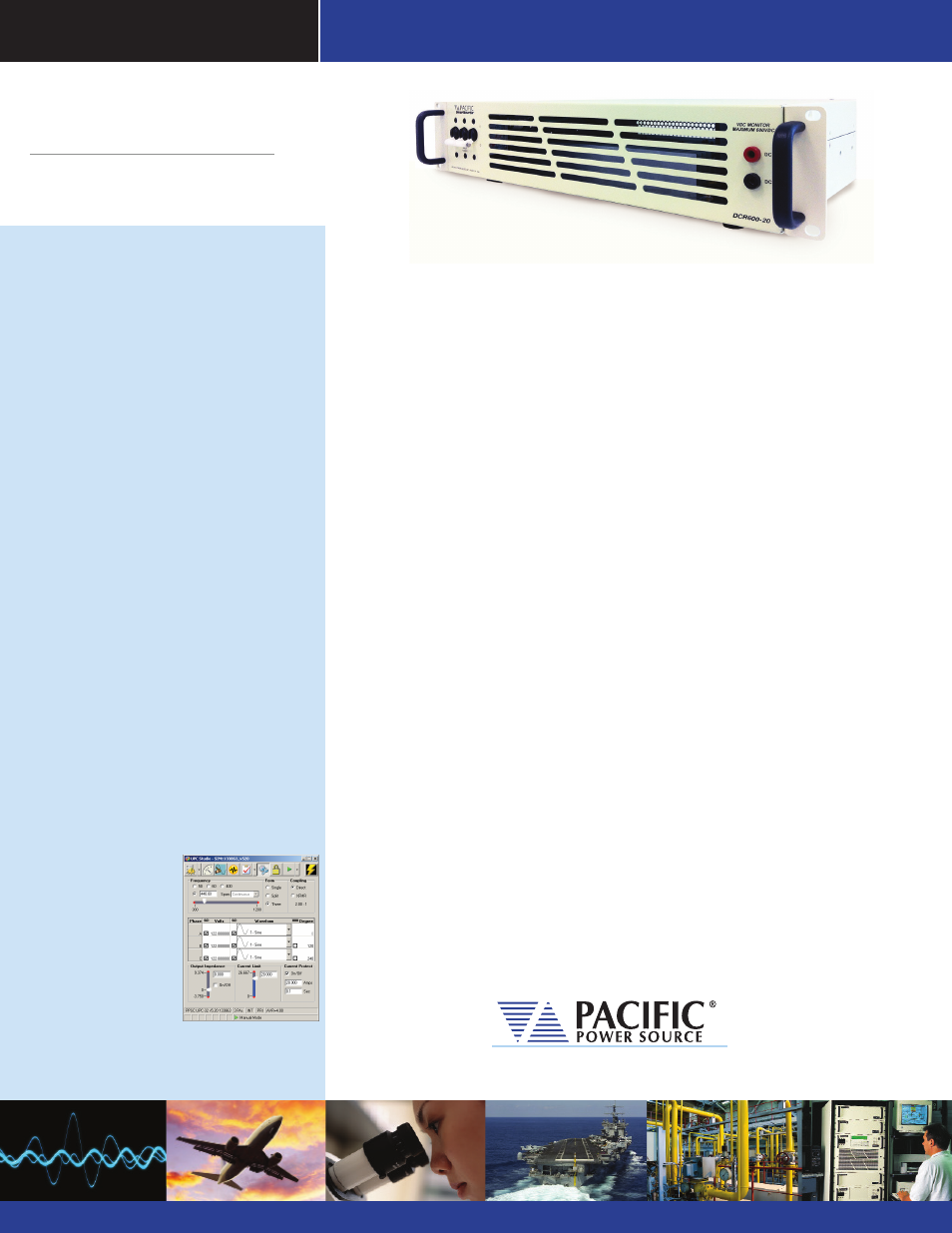

DCR600-20
DC Output Module
The DCR600-20 is a unique approach to generating programmable DC voltages to test
DC powered equipment using a Pacific Power Source AMX Series AC Power Source.
The DCR600-20 connects between the AC Power Source outputs terminals and the
UUT and rectifies the programmed AC output voltage into a stable DC voltage.
Leverage your existing investment in your AC Power Source by using it not only
for AC product development and test but for DC power products as well. The
same programmable features and function available on the AC Power Source
can be applied to an AC derived DC output. DC voltage is twice that of the AC
Line to Neutral voltage so scaling from AC to DC is easy.
Standard Features:
• Wide Useable Range
Up to 600Vdc Voltage and 20Adc Current Output
• Three Phase AC Input
Requires Programmable AC Power Source with
Square Wave Capability
• Adds DC capability to AC Power Source
DC Output Voltage Derived from Provided AC RMS
Input Voltage
• Program DC Transients Using UPC Controller
Functions
Run Dynamic Voltage Tests on DC Powered
Equipment
• Dual Banana Jacks Provided on Front and Rear Panel
Easy Connection of DMM or Scope to Monitor DC
Output Voltage
• Circuit Breaker on Front Panel
Quick AC Input Power Disconnect Removes DCR Unit
from AC Source Output
• 19” Rack Mount Enclosure with Removable Rack Ears
Fits easily on Lab Bench, on Top of the AC Power
Source Used or in Instrument Cabinet
Available Options:
• UPC Studio Software Suite (available at no cost)
• UPC Test Manager
UPC Manager Software Suite
Master the Power of the Wave!
UPC Manager Software
gives you the tools neces-
sary to quickly and easily
operate your DC output
unit through the AC Power
Source. This Windows soft-
ware supports controls over
all areas of your Power con-
trol all areas of your Power
Source testing with simple
presets, user prompts, test
sequences, test plans and
custom reports
T H E P O W E R O F E X P E R T I S E
The Leader in AC Power Technology now offers DC
FREQUENCY CONVERSION R & D MANUFACTURING AEROSPACE MILITARY CUSTOM
Pacific Power’s AMX and ASX-Series high performance Linear AC Power Sources offer
low output voltage noise and distortion, ease of installation, and high AC waveform
fidelity that is used to produce the required DC output voltage.
DC Test Capability From an AC Power Source
Simple Connection, Quiet Operation
The DCR unit is placed between the AC Power Source output and the DC load
under test. For best results, a three phase AC Power Source is recommended. No
other equipment is needed to provide DC power. A set of banana jacks is pro-
vided on the DCR unit to connect a DMM which can be used to monitor the DC
output voltage. No DC bias supply is needed to operate the DCR unit and only
convection cooling is needed to cool the unit so no fan noise is present.
DC Test Sequence Programming
By programming the required AC voltage output sequence on the AC Power
Source, sophisticated test sequences can easily be applied to a DC unit under
test.
An early pioneer in the development solid-state power conversion equipment,
Pacific Power Source continues to develop, manufacture, and market both linear
and high-performance PWM AC Power Sources. Pacific’s reputation as a market and
technology leader is best demonstrated by its continuing investments in both re-
search and development and world-wide customer support. With corporate owned
offices in the United States, Germany, the United Kingdom, and China, local person-
alized support is always available.
6,000W
0-600 Vdc / 0-20Adc
Three Phase AC Input
Requires AMX AC Power Source
DCR600-20 DC Output Module
