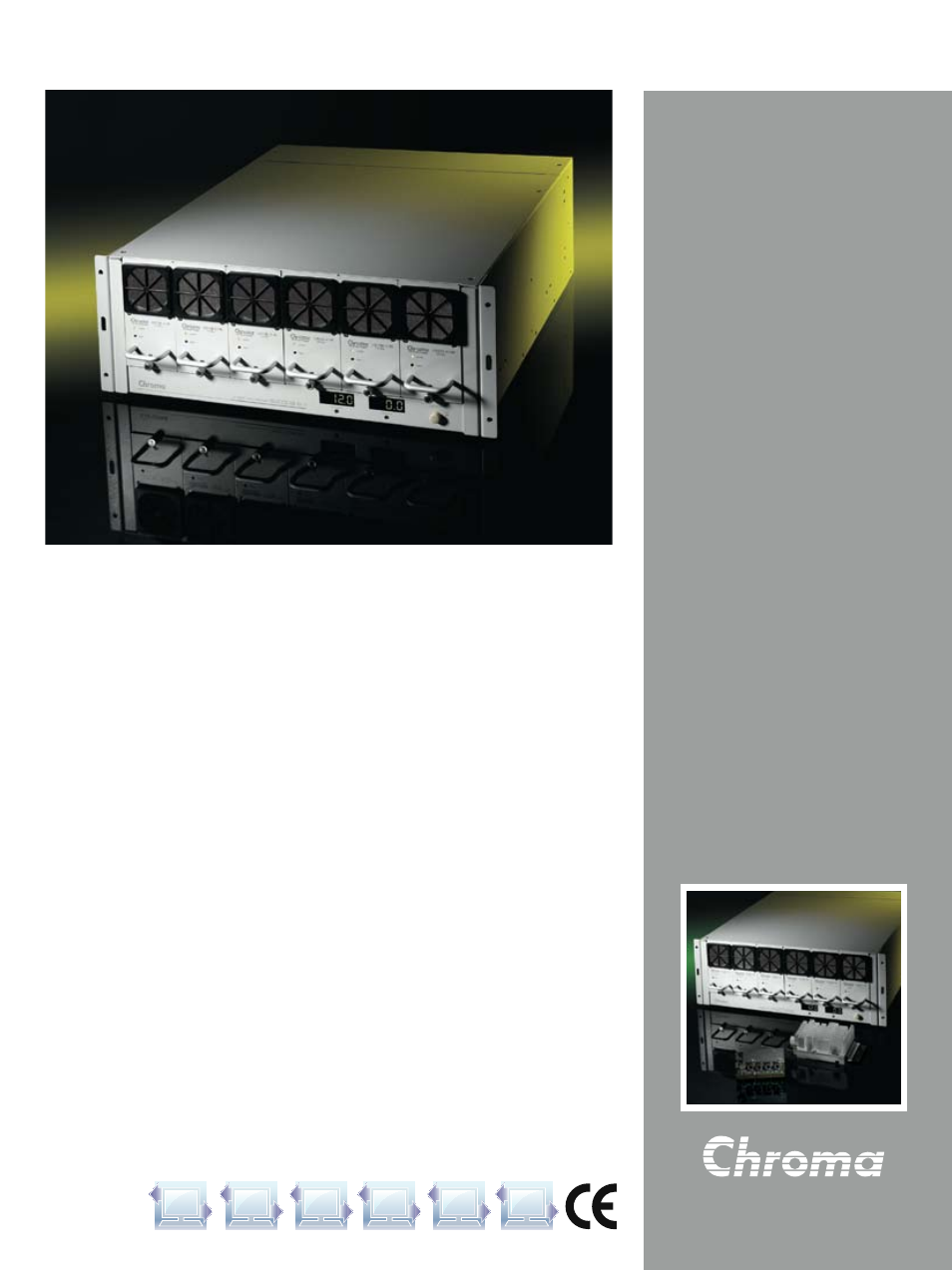

Modular DC Power Supply
Chroma's new 62000B series of Modular DC
Power Supplies offer many unique features for
Burn-in and plating/electrolysis applications.
The features include a N+1 redundancy, high
power densities, hot-swappable maintenance,
remote ON/OFF and programmable control via
the CAN bus.
The 62000B family offers 5 types of power
module with ranging from 1V to 150V, current
from 10A to 90A, and offers two mainframe
type of six and three position. The six position
mainframe can envelop in up to six power
modules paralleled operation for 9KW power
output. The 62000B can easily parallel up to
fourteen mainframe to 120KW with current
sharing and CAN bus control for bulk power
applications.
The Modular DC Power Supplies of 62000B
are very cost effective with high power density
and low current ripple. These instruments
have be designed for burn-in applications
such as the LCD panels, DC-DC converters,
power inverters, notebook computers, battery
chargers and many other types of electronic
devices.
Modern power factor correction circuitry is
incorporated in 62000B providing an input
power factor above 0.98 to meet the IEC
requirements. This PFC correction circuity
not only reduces the input current draw and
to greatly reduce generation of input current
harmonics. Optional graphic Soft Panels
and CAN bus control allow for control and
monitoring of the power system using an easy
to use graphical interface.
MODULAR DC POWER SUPPLY
MODEL 62000B SERIES
MODEL 62000B SERIES
Key Features :
■
Voltage range: 1 ~ 150V
■
Current range: Up to 2000A (System)
■
Power range up to 1.5KW per module
up to 120KW per system
■
High Power Density
(464 mW / cm
3
= 7.13 W/In
3
)
■
N+1 Redundancy
■
Hot-swappable
■
Ideal for Burn-in & Plating
■
Remote Sense
■
Remote ON / OFF
■
CAN Bus Control
■
DC OK Signal Output
CAN
Ethernet
RS-485
APG
GPIB
USB
