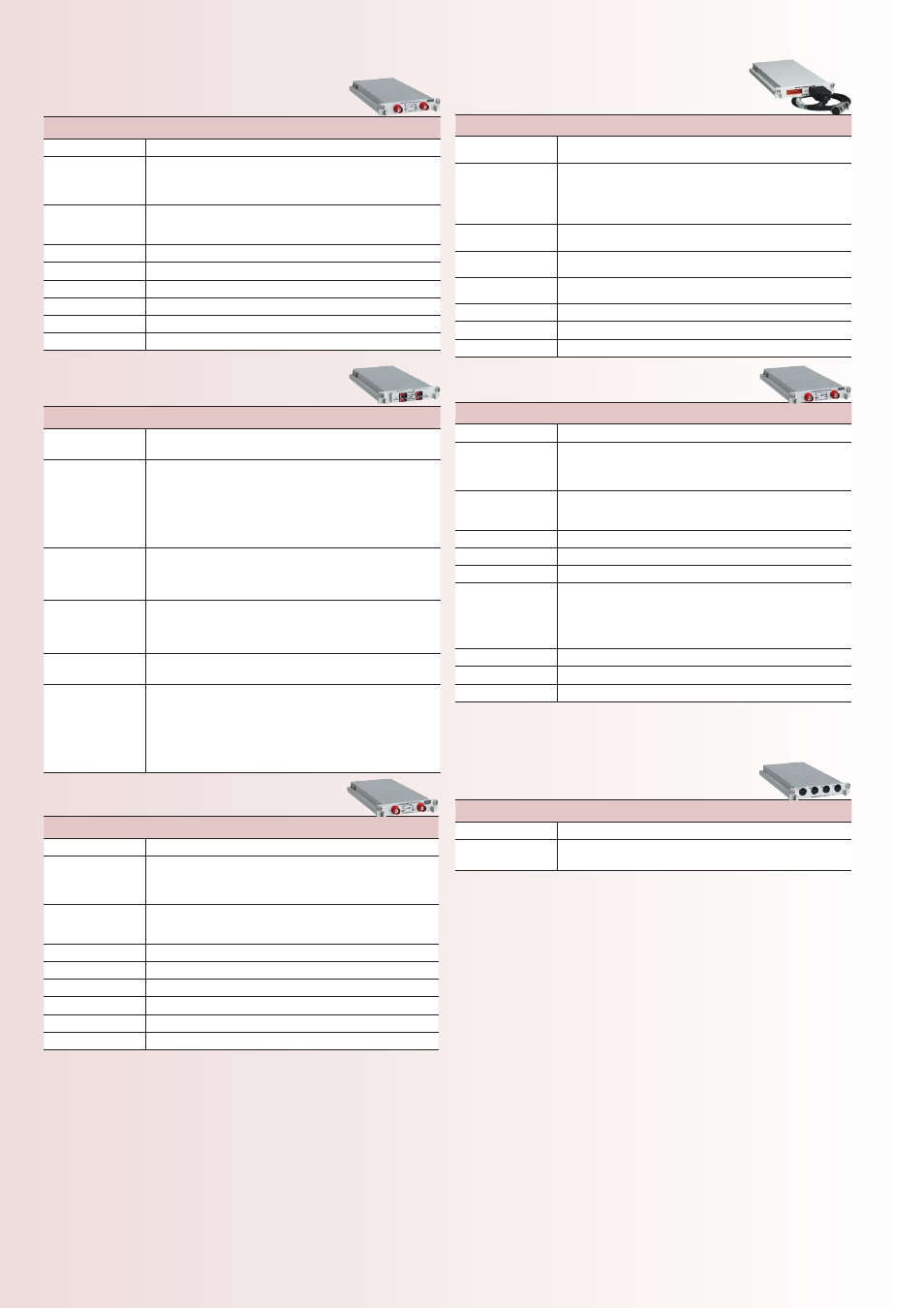

■ Options specifications
(sold separately, for the 8847 only)
ANALOG UNIT 8966 (Accuracy at 23 ±5 °C/73 ±9 °F, 20 to 80 % rh after 30 minutes of warm-up
time and zero adjustment; accuracy/product guaranteed for 1 year)
Measurement functions Number of channels: 2, for voltage measurement
Input connectors
Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF) ,
Max. rated voltage to earth: 300 V AC, DC (with input isolated from the
unit, the maximum voltage that can be applied between input channel and chassis and
between input channels without damage)
Measurement
range
5 mV to 20 V/div, 12 ranges, full scale: 20 div, AC voltage for possible
measurement/display using the memory function: 280 V rms,
Low-pass filter: 5/50/500 Hz, 5 k/50 k/500 kHz
Measurement resolution 1/100 of measurement range
(using 12-bit A/D conversion and when installed in the 8847)
Highest sampling rate 20 MS/s
(simultaneous sampling across 2 channels)
Measurement accuracy ±0.5 % of full scale
(with filter 5 Hz, zero position accuracy included)
Frequency characteristics DC to 5 MHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB
Input coupling
AC/DC/GND
Max. allowable input 400 V DC
(the maximum voltage that can be applied across input pins without damage)
Dimensions and mass: approx. 106 (4.17in) W × 19.8 (0.78in) H × 196.5 (7.74in) D mm,
approx. 250 g (8.8 oz) Accessories: None
TEMP UNIT 8967 (Accuracy at 23 ±5 °C/73 ±9 °F, 20 to 80 % rh after 30 minutes of warm-up
time and zero adjustment; accuracy/product guaranteed for 1 year)
Measurement functions Number of channels: 2, for temperature measurement with
thermocouple (voltage measurement not available)
Input connectors
Thermocouple input: plug-in connector,
Recommended wire diameter: single-wire, 0.14 to 1.5 mm
2 , braided
wire 0.14 to 1.0 mm 2 (conductor wire diameter min. 0.18 mm) , AWG 26 to 16
Input impedance: min. 5 MΩ
(with line fault detection ON/OFF) ,
Max. rated voltage to earth: 300 V AC, DC
(with input isolated from the unit, the maximum voltage that can be applied between
input channel and chassis and between input channels without damage)
Temperature
measurement range
Note: Upper and lower limit values
depend on the thermocouple
10 °C/div (-100 °C to 200 °C) , 50 °C/div (-200 °C to 1000 °C) , 100 °C/div
(-200 °C to 2000 °C) , 3 ranges, full scale: 20 div,
Measurement resolution: 1/1000 of measurement range (using 16-bit
A/D conversion and when installed in the 8847)
Thermocouple range
(JIS C 1602-1995)
(ASTM E-988-96)
K: -200 to 1350 °C, J: -200 to 1100 °C, E: -200 to 800 °C, T: -200 to 400 °C, N: -200 to
1300 °C, R: 0 to 1700 °C, S: 0 to 1700 °C, B: 400 to 1800 °C, W (WRe5-26): 0 to 2000 °C,
Reference junction compensation: internal/ external
(switchable) ,
Line fault detection ON/OFF possible
Data refresh rate 3 methods, Fast: 1.2 ms (digital filter OFF) , Normal: 100 ms (digital
filter 50/60 Hz) , Slow: 500 ms (digital filter 10Hz)
Measurement
accuracy
Thermocouple K, J, E, T, N: ±0.1 % of full scale ±1 °C (±0.1 % of full scale ±2 °C at
-200 °C to 0 °C) ,
Thermocouple R, S, W: ±0.1 % of full scale ±3.5 °C (at 0 °C to 400 °C or less) , ±0.1
% of full scale ±3 °C (at 400 °C or more)
Thermocouple B: ±0.1 % of full scale ±3 °C (at 400 °C or more) ,
Reference junction compensation accuracy: ±1.5 °C
(added to measurement accuracy
with internal reference junction compensation)
Dimensions and mass: approx. 106 (4.17in) W × 19.8 (0.78in) H × 204.5 (8.05in) D mm,
approx. 240 g (8.5 oz) Accessories: Ferrite clamp × 2
HIGH RESOLUTION UNIT 8968 (Accuracy at 23 ±5 °C/73 ±9 °F, 20 to 80 % rh after 30 minutes of warm-
up time and zero adjustment; accuracy/product guaranteed for 1 year)
Measurement functions Number of channels: 2, for voltage measurement
Input connectors
Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF) ,
Max. rated voltage to earth: 300 V AC, DC (with input isolated from the
unit, the maximum voltage that can be applied between input channel and chassis and
between input channels without damage)
Measurement
range
5 mV to 20 V/div, 12 ranges, full scale: 20 div, AC voltage for possible
measurement/display using the memory function: 280 V rms,
Low-pass filter: 5/50/500 Hz, 5k/50k Hz
Measurement resolution 1/1600 of measurement range
(using 16-bit A/D conversion and when installed in the 8847)
Highest sampling rate 1 MS/s
(simultaneous sampling across 2 channels)
Measurement accuracy ±0.3 % of full scale
(with filter 5 Hz, zero position accuracy included)
Frequency characteristics DC to 100 kHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB
Input coupling
AC/DC/GND
Max. allowable input 400 V DC
(the maximum voltage that can be applied across input pins without damage)
Dimensions and mass: approx. 106 (4.17in) W × 19.8 (0.78in) H × 196.5 (7.74in) D mm,
approx. 250 g (8.8 oz) Accessories: None
STRAIN UNIT 8969 (Accuracy at 23 ±5 °C/73 ±9 °F, 20 to 80 % rh after 30 minutes of warm-
up time and auto-balance; accuracy/product guaranteed for 1 year)
Measurement functions Number of channels: 2, for distortion measurement (electronic
auto-balancing, balance adjustment range within ±10000 με)
Input connectors
Weidmuller SL 3.5/7/90G (via Conversion Cable 9769, TAJIMI PRC03-12A10-
7M10.5)
Max. rated voltage to earth: 33 Vrms or 70 V DC (with input isolated from
the unit, the maximum voltage that can be applied between input channel and chassis
and between input channels without damage)
Suitable
transducer
Strain gauge converter, Bridge impedance: 120 Ω to 1 kΩ,
Bridge voltage: 2 V ±0.05 V, Gauge rate: 2.0
Measurement
range
20 με to 1000 με/div, 6 ranges, full scale: 20 division,
Low-pass filter: 5/10/100 Hz, 1 kHz
Measurement resolution 1/1250 of measurement range (using 16-bit A/D conversion and when
installed in the 8847)
Highest sampling rate 200 kS/s
(simultaneous sampling across 2 channels)
Measurement accuracy ±(0.5 % of full scale +4 με)
(at 5 Hz filter ON, After auto-balancing)
Frequency characteristics DC to 20 kHz +1/-3dB
Dimensions and mass: approx. 106 (4.17in) W × 19.8 (0.78in) H × 196.5 (7.74in) D mm,
approx. 220 g (7.8 oz) Accessories: Conversion cable 9769 × 2 (cable length 50 cm/1.64 ft)
DC/RMS UNIT 8972 (Accuracy at 23 ±5 °C/73 ±9 °F, 20 to 80 % rh after 30 minutes of warm-
up time and zero adjustment; accuracy/product guaranteed for 1 year)
Measurement functions Number of channels: 2, for voltage measurement, DC/RMS selectable
Input connectors
Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF) ,
Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum
voltage that can be applied between input channel and chassis and between input channels without
damage)
Measurement
range
5 mV to 20 V/div, 12 ranges, full scale: 20 div, AC voltage for possible
measurement/display using the memory function: 280 V rms,
Low-pass filter: 5/50/500 Hz, 5 k/100 kHz
Measurement resolution 1/100 of measurement range
(using 12-bit A/D conversion and when installed in 8847)
Highest sampling rate 1 MS/s
(simultaneous sampling across 2 channels)
Measurement accuracy ±0.5 % of full scale
(with filter 5 Hz, zero position accuracy included)
RMS
measurement
RMS amplitude accuracy: ±1 % of full scale (DC, 30 Hz to 1 kHz) , ±3 %
of full scale (1 kHz to 100 kHz) ,
Response time: SLOW 5 s (rise time from 0 to 90% of full scale) , MID 800 ms
(rise time from 0 to 90% of full scale) , FAST 100 ms (rise time from 0 to 90% of
full scale) , Crest factor: 2
Frequency characteristics DC to 400 kHz -3 dB, with AC coupling: 7 Hz to 400 kHz -3dB
Input coupling
AC/DC/GND
Max. allowable input 400 V DC
(the maximum voltage that can be applied across input pins without damage)
Dimensions and mass: approx. 106 (4.17in) W × 19.8 (0.78in) H × 196.5 (7.74in) D mm,
approx. 250 g (8.8 oz) Accessories: None
LOGIC UNIT 8973
(Product guaranteed for 1 year)
Measurement functions Number of channels: 16 channels
(4 ch/1 probe connector × 4 connectors)
Input connectors Mini DIN connector (for HIOKI logic probes only) ,
Compatible logic probes: 9320 -01 , 9327, 9321 -01
Dimensions and mass: approx. 106 (4.17in) W × 19.8 (0.78in) H × 196.5 (7.74in) D mm,
approx. 190 g (6.7 oz) Accessories: None
