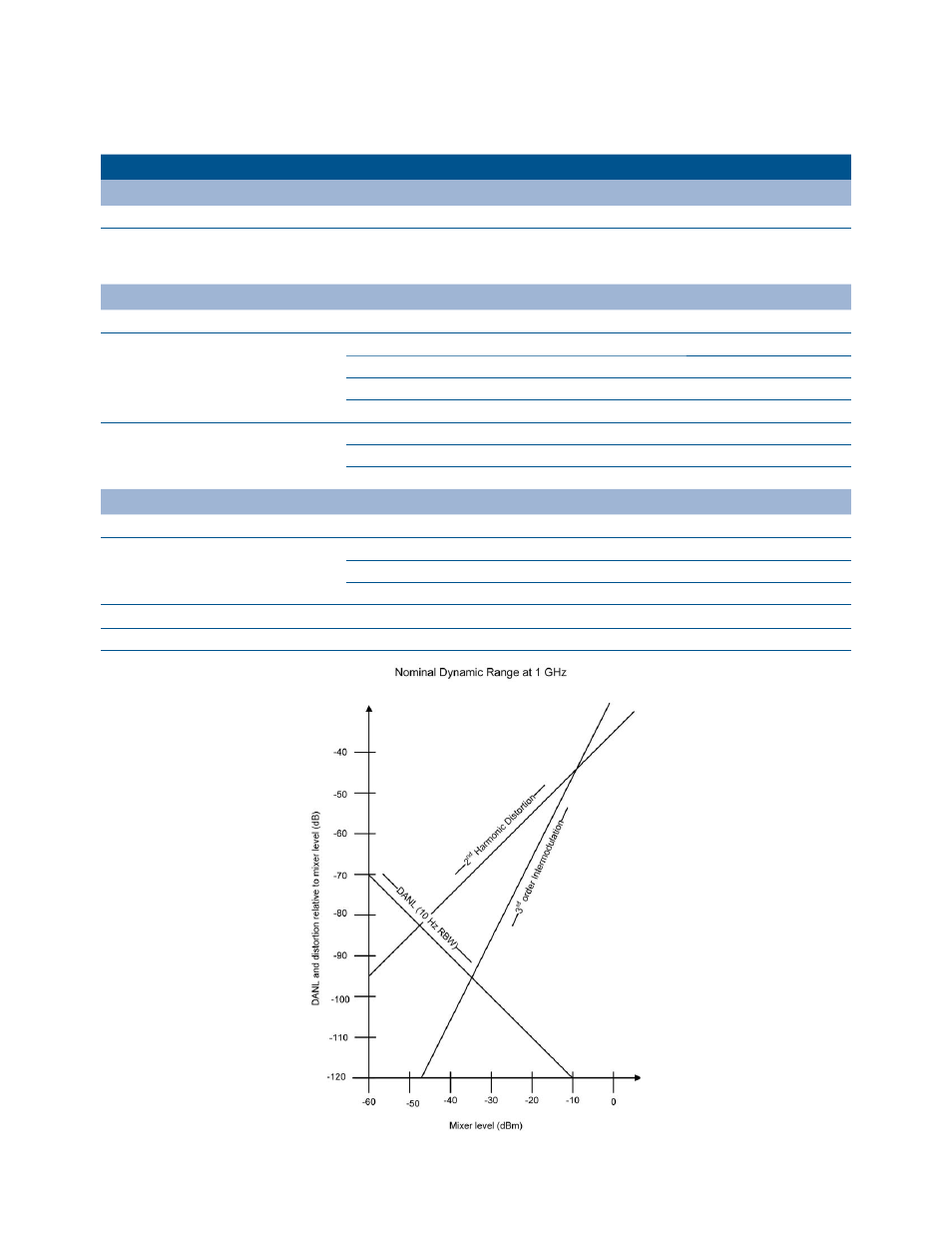

Dynamic Range Specifications
Supplemental information
1 dB gain compression
Preamp off 50 MHz to 3.0 GHz > 0 dBm, typical; total power at input mixer
Preamp on 50 MHz to 3.0 GHz > -20 dBm, typical; total power at the preamp
Total power at the preamp = total power at the input
(dBm) - input attenuation (dB)
Displayed average noise level (DANL)
Input terminated, 0 dB RF attenuation, RBW = 10 Hz, VBW = 1 Hz, sample detector
Preamp off 9 to 100 kHz < -90 dBm, nominal
100 kHz to 1 MHz < -90 dBm – 3 x (f/100 kHz) dB
1 to 10 MHz < -124 dBm
10 MHz to 3 GHz < -130 dBm + 3 x (f/1 GHz) dB
Preamp on 100 kHz to 1 MHz < -108 dBm – 3 x (f/100 kHz) dB
1 to 10 MHz < -142 dBm
10 MHz to 3 GHz < -148 dBm + 3 x (f/1 GHz) dB
Spurious response
Preamp off, signal input -30 dBm, 0 dB RF attenuation
Second harmonic distortion 10 to 200 MHz +30 dBm
200 to 500 MHz +35 dBm
500 MHz to 3 GHz +43 dBm
Preamp off, signal input -30 dBm, 0 dB RF attenuation
Third-order intermodulation (TOI) 300 MHz to 3 GHz +10 dBm; +13 dBm nominal
