6

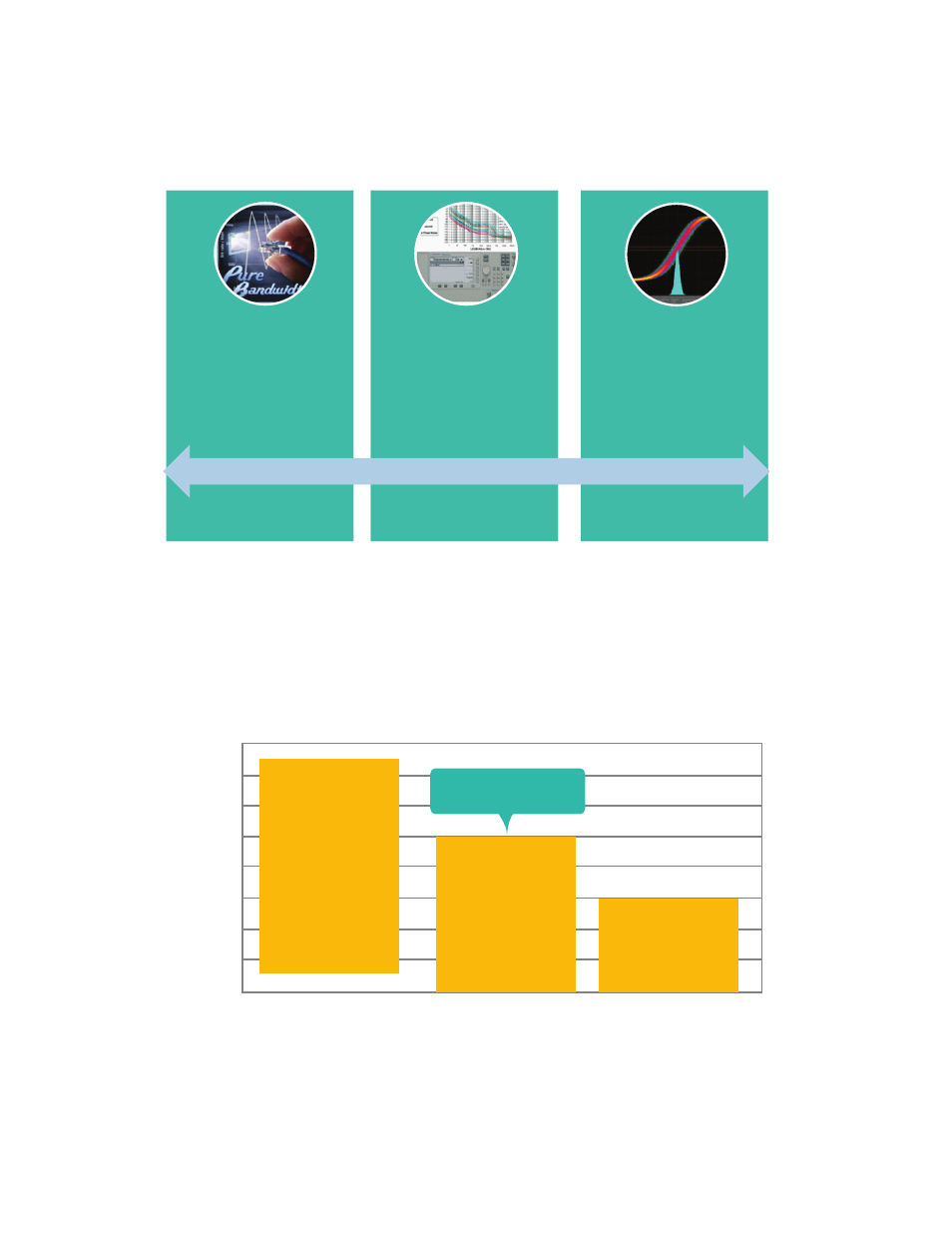

Choose the best amplifier to optimize your signal characteristics
Optimized for for
direct
RF/IF applications
-5 dBm to +5 dBm
single-ended output;
AC coupled;
flatness: ±1 dB
up to 1 GHz
Bandwidth (MHz)
1600
1400
1200
1000
800
600
400
200
0
Optimized for
purest signal in I/Q
applications
with a vector PSG
Up to 500 mVpp
differential output;
DC coupled;
harmonic distortions 1
less than -56 dBc
SFDR less than -64 dBc
Time domain
DC amp
Maximum
bandwidth
RF amp Direct DAC
IQ applications
Optimized for time
domain applications
Up to 2 Vpp amplitude,
± 1.5 V offset differential
output; DC coupled;
600 ps transition times
1 GHz per channel
= 2 GHz I/Q modulation BW
Time domain
measurements
Low jitter
Maximum
bandwidth
1.5 GHz
Time domain
measurements
Low jitter
81180A AWG with 3 optional amplifiers
Optimized for different signal characteristics
Different applications call for different signal characteristics. You can choose from three different amplifiers with different
characteristics. You can switch between the amplifiers using your software application, the programming interface or the
instrument’s front panel.
Figure 7.
Figure 8.
