20

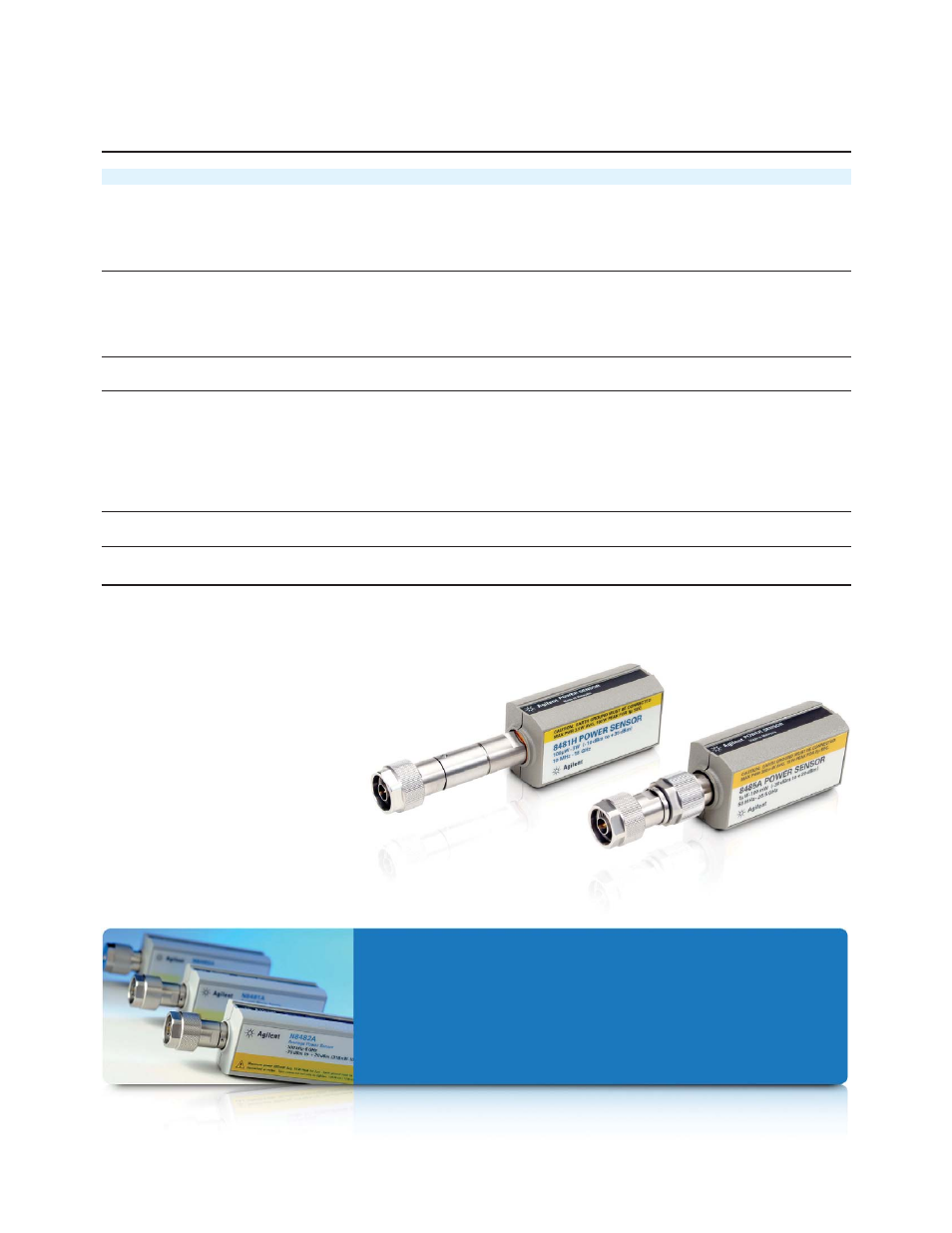

8480 Series diode and thermocouple power sensor specifications (continued)
Model
8481D 3
8485D 3
Option
8485D-033
8487D 3
R8486D 3
Q8486D 3
Frequency range
10 MHz to 18 GHz
50 MHz to 26.5 GHz
50 MHz to 33 GHz
50 MHz to 50 GHz
26.5 GHz to 40 GHz
33 GHz to 50 GHz
High-sensitivity sensors, 100 pW to 10 μW (–70 dBm to –20 dBm)
Maximum SWR
10 MHz to 30 MHz: 1.40
30 MHz to 4 GHz: 1.15
4 GHz to 10 GHz: 1.20
10 GHz to 15 GHz: 1.30
15 GHz to 18 GHz: 1.35
0.05 GHz to 0.1 GHz: 1.19
0.1 GHz to 4 GHz: 1.15
4 GHz to 12 GHz: 1.19
12 GHz to 18 GHz: 1.25
18 GHz to 26.5 GHz: 1.29
26.5 GHz to 33 GHz: 1.35
0.05 GHz to 0.1 GHz: 1.19
0.1 GHz to 2 GHz: 1.15
2 GHz to 12.4 GHz: 1.20
12.4 GHz to 18 GHz: 1.29
18 GHz to 34 GHz: 1.37
34 GHz to 40 GHz: 1.61
40 GHz to 50 GHz: 1.89
26.5 GHz to 40 GHz: 1.40
33 GHz to 50 GHz: 1.40
Power linearity 1
–30 dBm to –20 dBm: (±1%)
–30 dBm to –20 dBm: (±2%)
–30 dBm to –20 dBm: (±2%)
–30 dBm to –20 dBm: (±2%)
–30 dBm to –25 dBm: (±3%)
–25 dBm to –20 dBm: (±5%)
–30 dBm to 25 dBm: (±3%)
–25 dBm to –20 dBm: (±5%)
Maximum power
100 mW avg, 100 mW pk
100 mW avg, 100 mW pk
100 mW avg, 100 mW pk
100 mW avg, 100 mW pk
10 W.μs per pulse
100 mW avg, or pk
40 V dc max
100 mW avg, or pk
40 V dc max
Connector type
Type-N (m)
APC-3.5mm (m)
APC-3.5mm (m)
2.4 mm (m)
Waveguide flange
UG-599/U
Waveguide flange
UG-383/U
Weight
0.16 kg (0.37 lb)
0.2 kg (.38 lb)
0.2 kg (.38 lb)
0.2 kg (0.38 lb)
0.26 kg (0.53 lb)
0.26 kg (0.53 lb)
1. Negligible deviation except for those power ranges noted.
2. For pulses greater than 30 W, the maximum average power (Pa) is limited by the energy per pulse (E) in W.μs according to Pa = 30-0.02 E.
3. Includes 11708A 30 dB attenuator for calibrating against 0 dBm, 50 MHz power reference. The 11708A is factory set to 30 dB ±0.05 dB at
50 MHz, traceable to NIST. SWR < 1.05 at 50 MHz.
N8480 Series thermocouple power sensor
specifications
The N8480 Series power sensors are replacing the 8480 Series
thermocouple range. Detailed specifications on the N8480 Series can be
found in the “Agilent N8480 Series Power Sensors Data Sheet”, literature
number 5989-9333EN.
