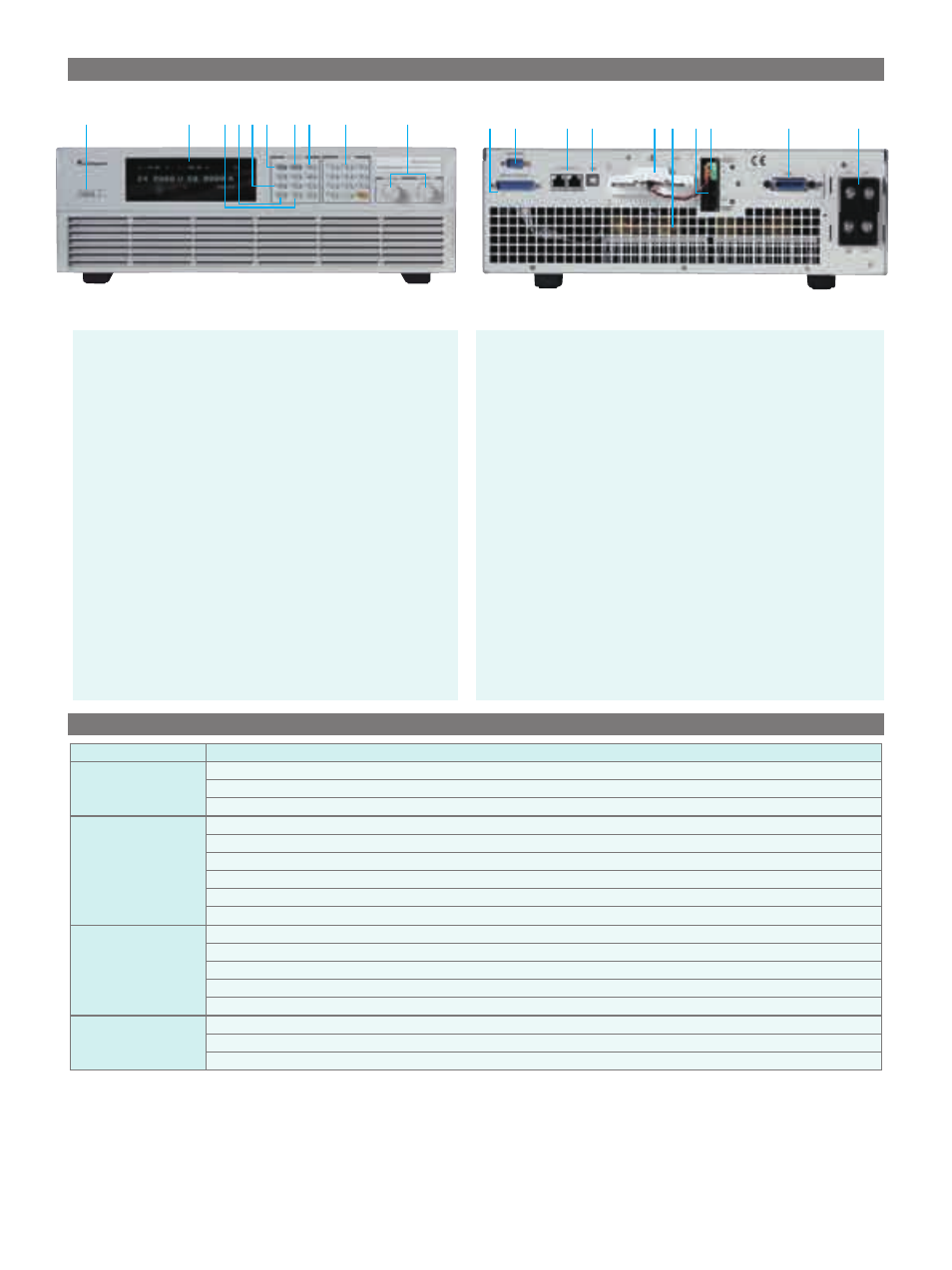

PaNEl DEScriPtiON
1. POWER Switch
2. VFD Display
Display setting, readings and operating status
3. LOCK Key
Lock all settings
4. OUTPUT Key
Enable or disable the output
5. CONFIG Key
Set the system configuration
6. VOLTAGE Key
Set the output voltage
7. CURRENT Key
Set the output current
8. PROG Key
Program the sequence
9. NUMERIC Key
Set the data
10. ROTARY Key
Adjust the V&I and set the parameter
11. Analog programming interface
For analog level to program and monitor output
voltage & current
12. RS-232 or RS-485 Interface (alternative)
13. System Bus
For master/slave parallel and series control
14. USB Interface
15. OUTPUT Terminal
Connect the output cable to a UUT
16. System Fan
With fan speed control
17. Current Sharing Terminal
Connect the cable to slave unit
18. Sense Terminal
Connect the UUT for voltage compensation
19. GPIB or ETHERNET Interface (optional)
20. AC Input Terminal
OrDEriNg iNFOrMatiON
Note :
Please specify the input voltage level at time of order.
GPIB or Ethernet Interface (alternative). Please specified at time of order.
*Call for Availability.
Power Rating 62000H Series Programmable DC Power Supply
5KW
62050H-40 : Programmable DC Power Supply 40V/125A/5KW
*62050H-450 : Programmable DC Power Supply 450V/11.5A/5KW
62050H-600 : Programmable DC Power Supply 600V/8.5A/5KW
10KW
62075H-30 : Programmable DC Power Supply 30V/250A/7.5KW
62100H-30 : Programmable DC Power Supply 30V/375A/11KW
62100H-40 : Programmable DC Power Supply 40V/250A/10KW
*62100H-450 : Programmable DC Power Supply 450V/23A/10KW
62100H-600 : Programmable DC Power Supply 600V/17A/10KW
*62100H-600S: Programmable DC Power Supply 600V/17A/10KW with Solar Array Simulation
15KW
62150H-40 : Programmable DC Power Supply 40V/375A/15KW
62150H-450 : Programmable DC Power Supply 450V/34A/15KW
62150H-600 : Programmable DC Power Supply 600V/25A/15KW
62150H-600S : Programmable DC Power Supply 600V/25A/15KW with Solar Array Simulation
*62150H-1000S:Programmable DC Power Supply 1000V/15A/15KW with Solar Array Simulation
Options
GPIB Interface for 62000H Series (Factory installed)
Ethernet Interface for 62000H Series (Factory installed)
Rack Mounting Kit for 62000H Series
