3.0 Installation,

continued

3.2

Service Power Inserter Connections, continued

10. Insert the Black wire into the Output 1-4 + (positive) terminal and tighten the clamping

screw.

11. Insert the White wire into the Output 1-4 - terminal (negative) terminal and tighten the

clamping screw.

OUTPUT 1

+ -

OUTPUT 2

+ -

+ -

OUTPUT 3

OUTPUT 4

+ -

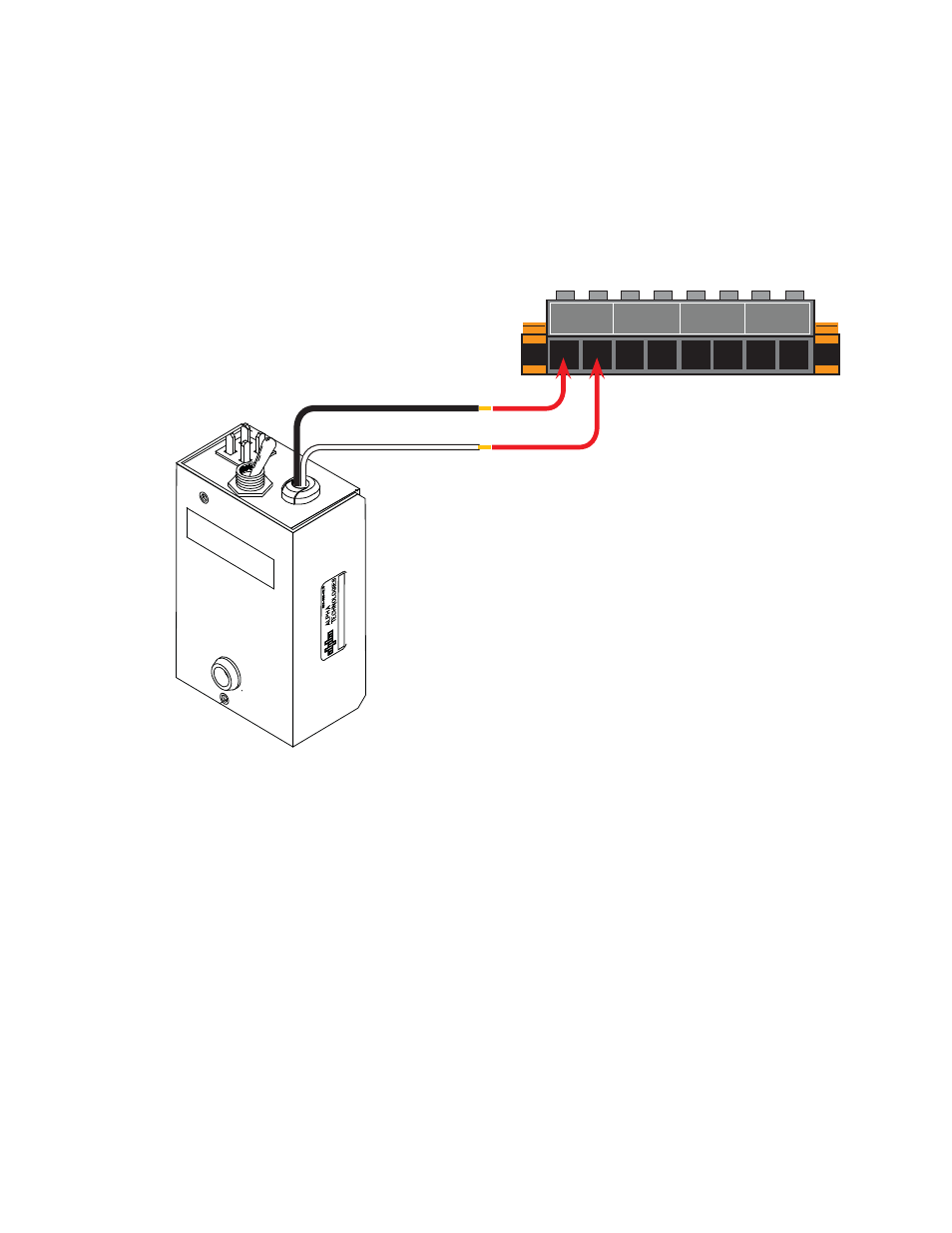

Fig 3-7, SPI to Output 1-4 Connection
