23 031-295-B0-001 Rev.A
2.0 Installation
2.4 Floor-mounted version
2.4.1 Dimensions and features

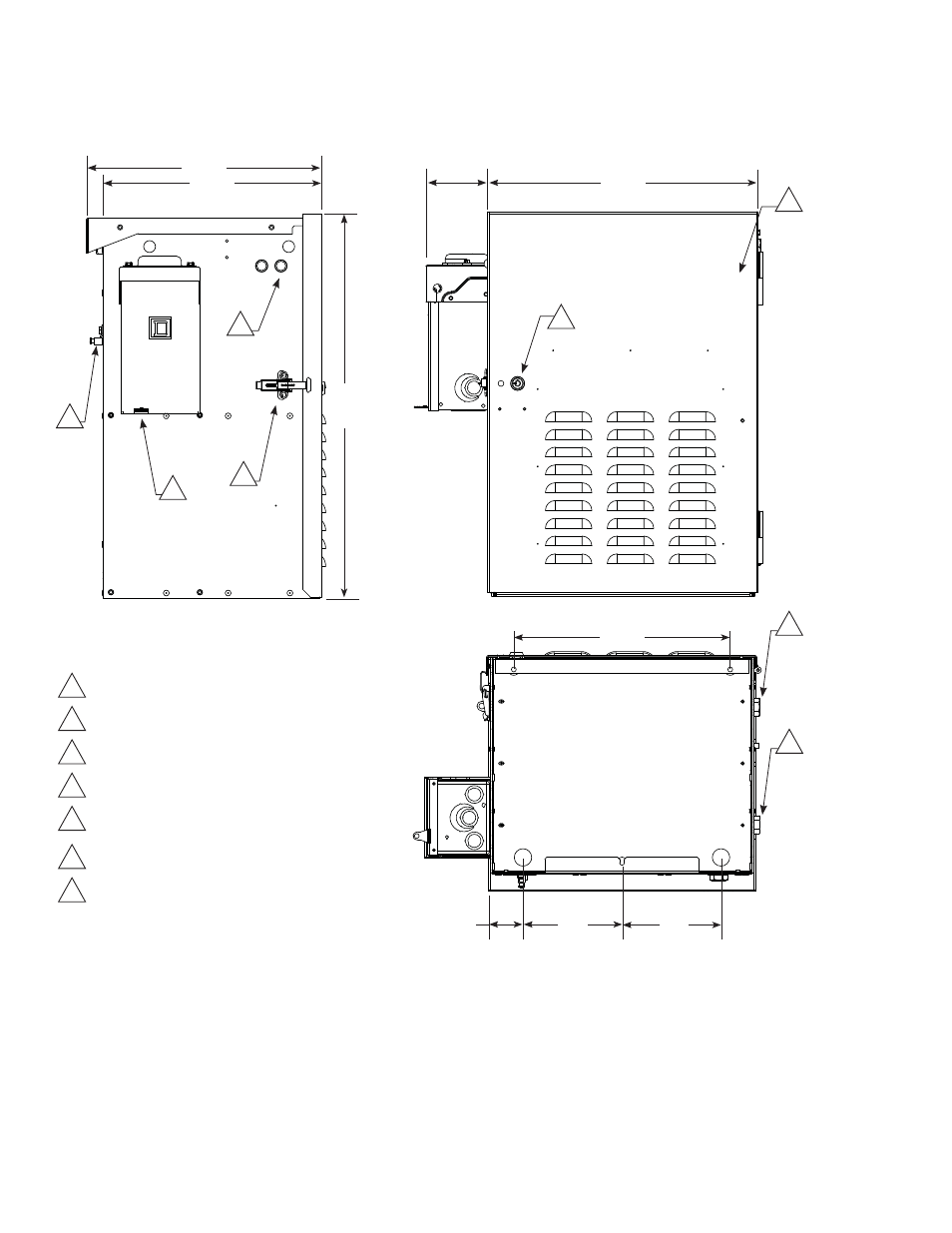

Fig. 2-6, Dimensions, Floor-mounted NPS Enclosure
4.0" 17.00" 14.10"
15.20"
14.10"
2.00" 6.50" 6.50"
24.85"
5
2
1
4
3
Lockable door latch
Knockouts for ACI/LRI Indicator lamps
Service Entrance
Enclosure ground point
Optional GEM lock
Hinged, removeable door
Mounting locations for SPI
6
2
1
3
4
7
5
6
7
7
