Alpha Technologies Node Power Supply - Manual (Page 21)

21 031-295-B0-001 Rev.A
2.0 Installation
2.3 Wall-mounted version
2.3.1 Dimensions and features
16.00"
5.00"
17.75"
3.20"
17.00" 4.0"
24.85"

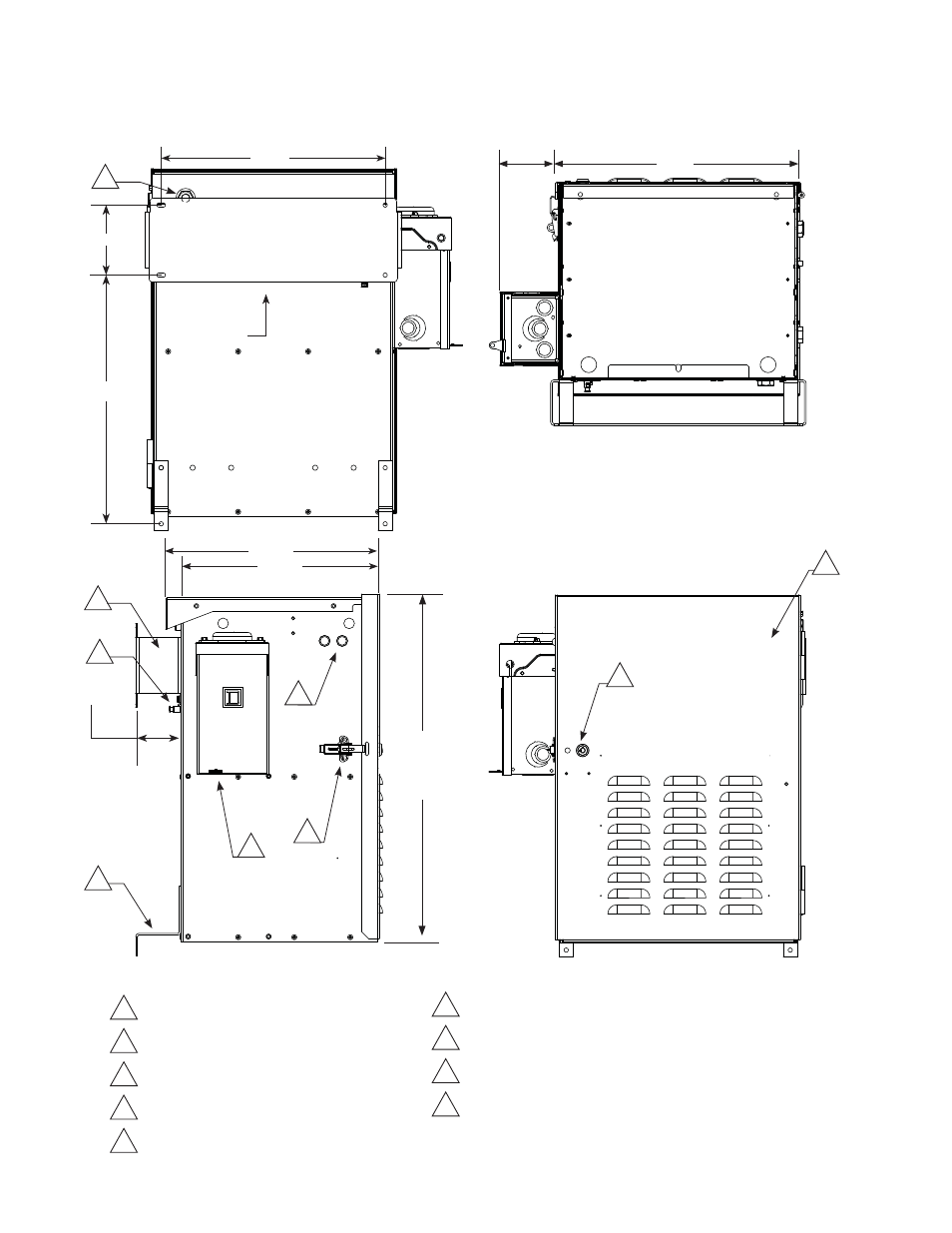

Fig. 2-5, Dimensions, Wall-mounted NPS Enclosure
14.10"
15.20"
8
6
7
3
5
1
2
4
9
Mounting location, SPI
Upper mounting bracket
Enclosure ground point
Lower mounting bracket
Service entrance
Knockouts for optional ACI, LRI indicator Lamps
Lockable door latch
Optional GEM lock
Hinged, removeable door
6
2
1
3
4
7
8
9
5
