2.0 Installation

2.2 Rack-mounted version

2.2.1 Dimensions and features

24.85"

1.0"

1.0"

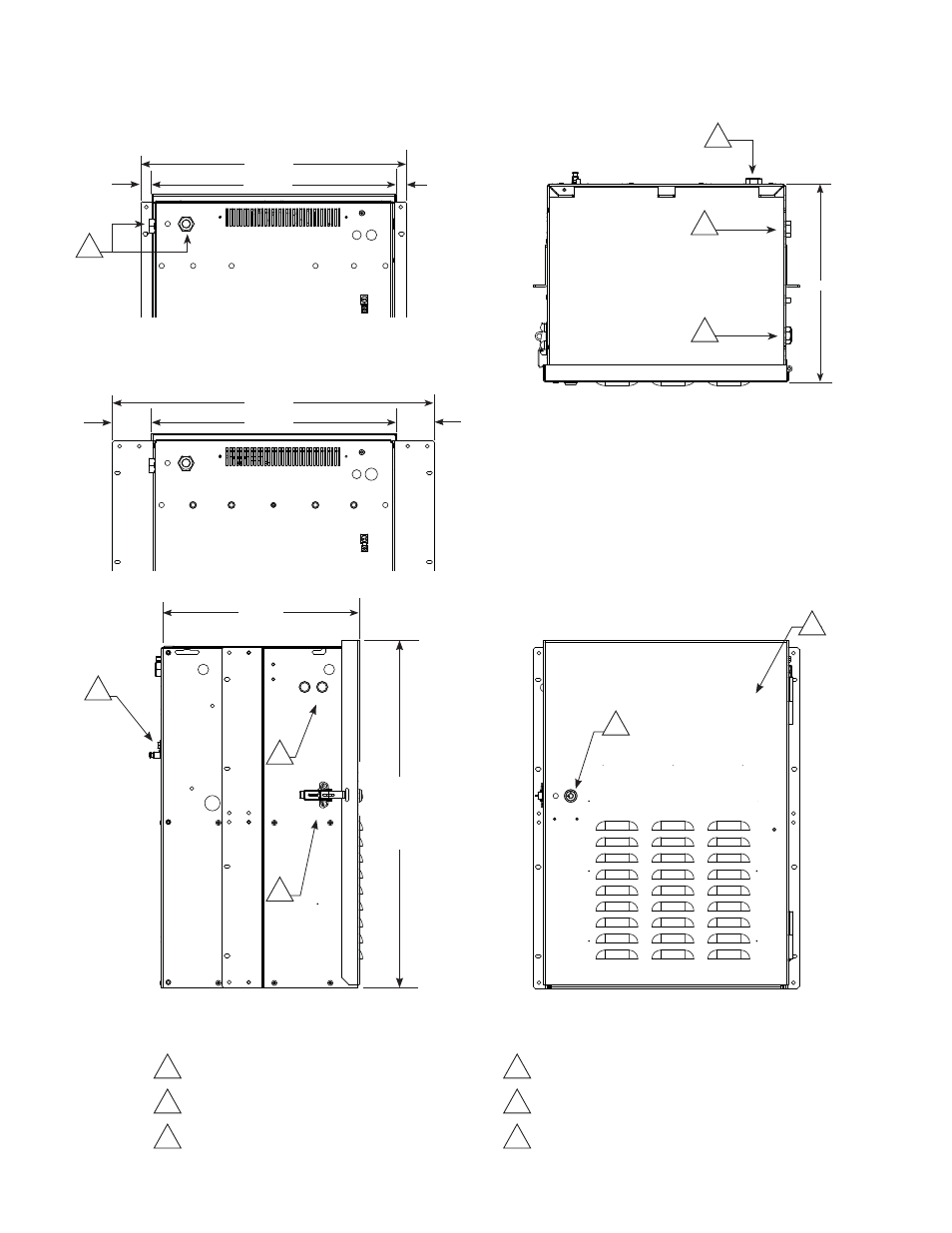

Fig. 2-4, Dimensions, Rack-mounted NPS Enclosure

14.1"

Mounting locations for SPI

Enclosure ground point

Knockouts for ACI, LRI Indicator lamps

Lockable door latch

Optional GEM lock

Hinged, removeable door

6

2

1

5

3

6

3

4

5

2

Mounting tabs set for 19" rack

Mounting tabs set for 23" rack

17.00"

19.00"

2.0"

2.0"

17.00"

23.00"

14.1"

1

1

1

1

4
