10 031-295-B0-001 Rev. A
1.0 Introduction
1.1 Node Power Supply (NPS) Enclosures
The NPS enclosures are equipped with AC service entrances, AC distribution and are supported with
a wide range of accessories, including Alpha’s XM Series 2 Model 906 power supply, AlphaCell
TM
85GXL batteries and HPL-FT front terminal batteries providing extended standby runtime and life. An
optional Fan Kit is available for the NPS enclosure (see Section 2.9, Cooling Fan Kit Installation).
The NPS is specifi cally designed for indoor or outdoor installations requiring lower power, a smaller
footprint and embedded DOCSIS
® or proprietary status monitoring capability. The NPS is available
in pole-, rack-, wall- or fl oor-mount confi gurations. The NPS is an ideal solution for back-up power
where traditional equipment is too large and bulky.

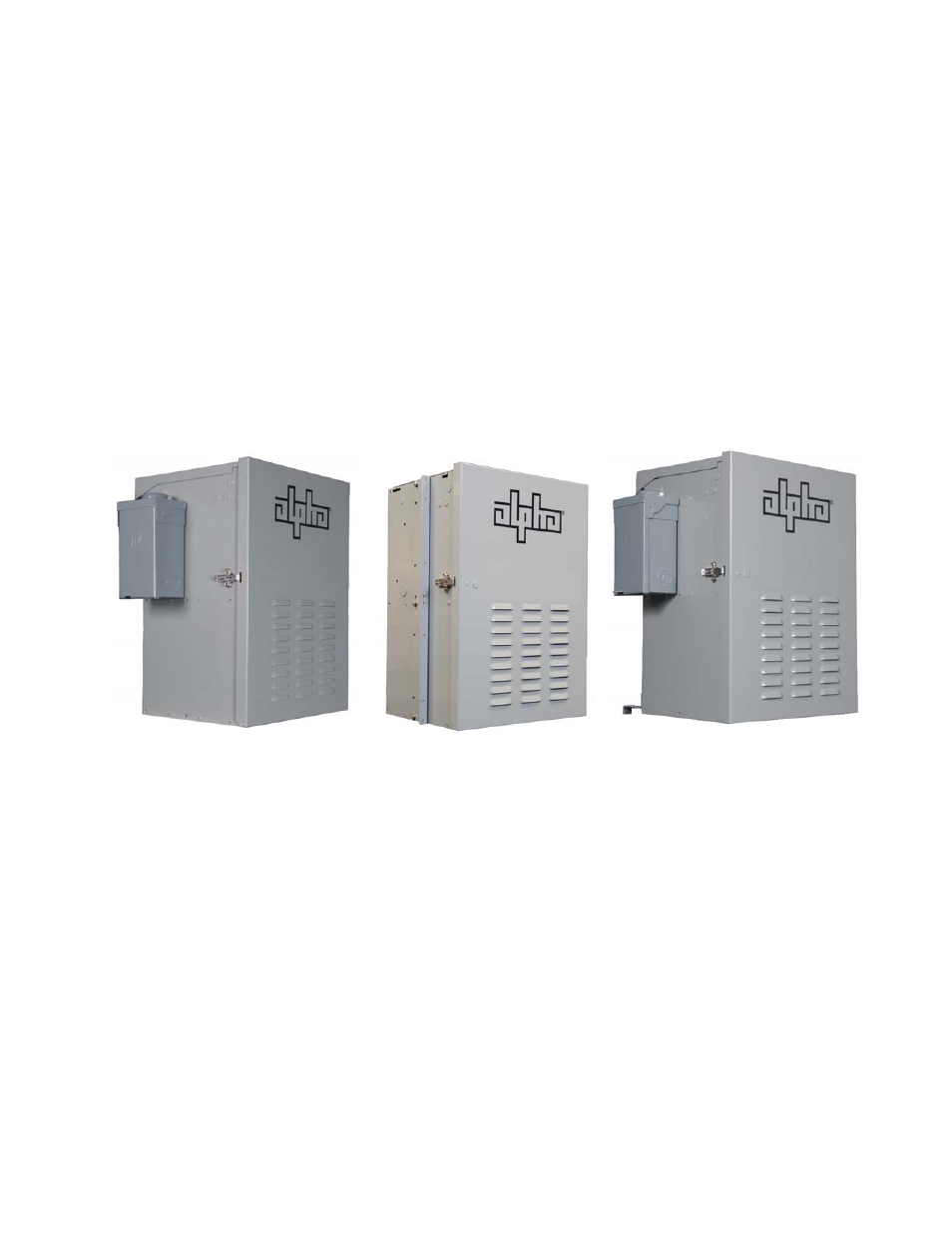

Fig. 1-1, Node Power Supply Enclosures, pole-mount, rack-mount, and wall-mount confi gurations
