Alpha Technologies Node Power Supply - Manual (Page 17)

17 031-295-B0-001 Rev.A
2.0 Installation

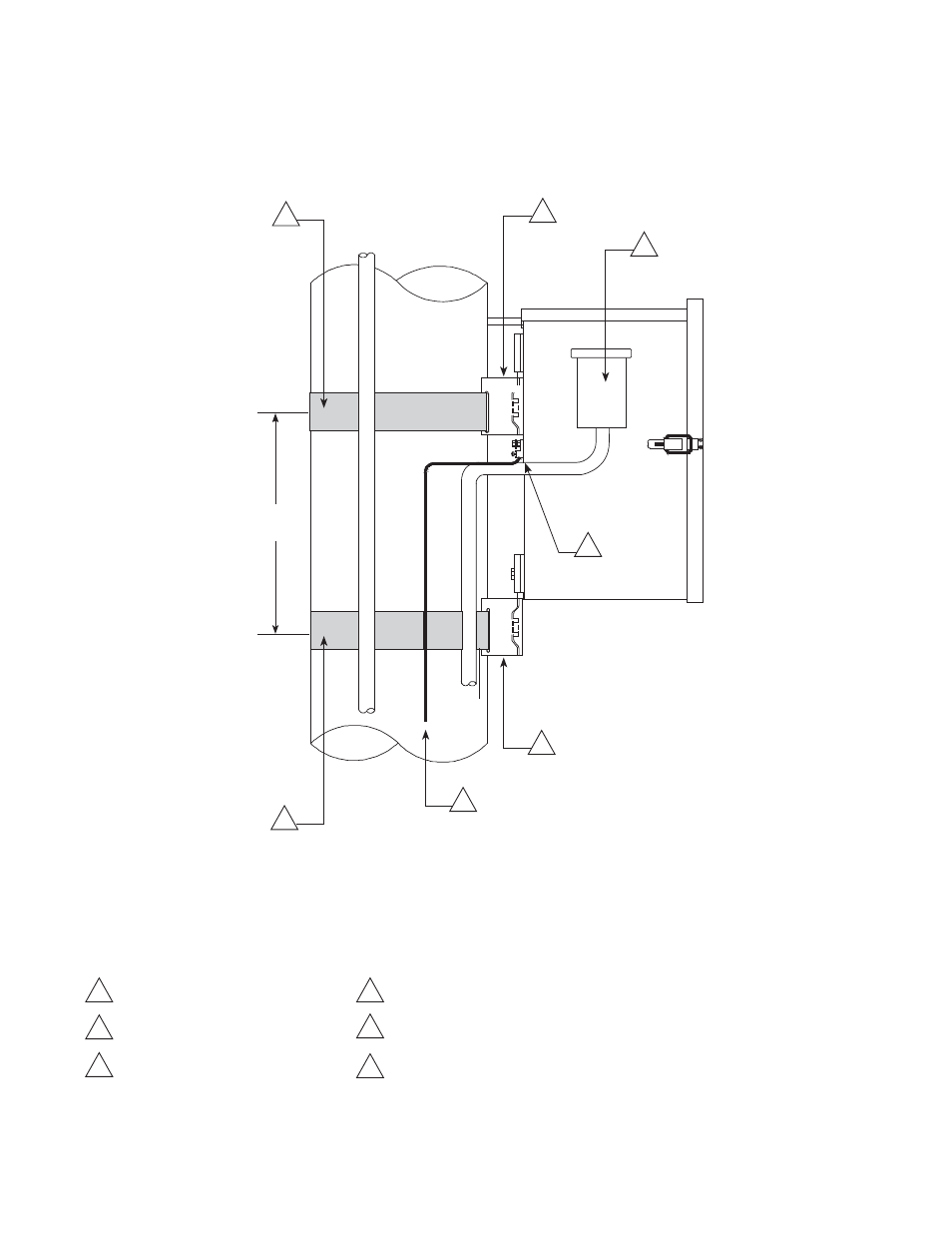

Fig. 2-3, Steel/Concrete Pole Installation
2.1 Pole-mounted version, coninued
2.1.3 Installation on Steel/Concrete Pole, continued
Upper Mounting Bracket
Service Entrance
Enclosure Grounding Point
5 2
1
3
4
Lower Mounting Bracket
#8 AWG (minimum) Copper Ground Wire to 8' Ground Rod
Customer-supplied Mounting Strap (2 plcs)
6
24.85"
on center
2
1 6
6
4
3
5
