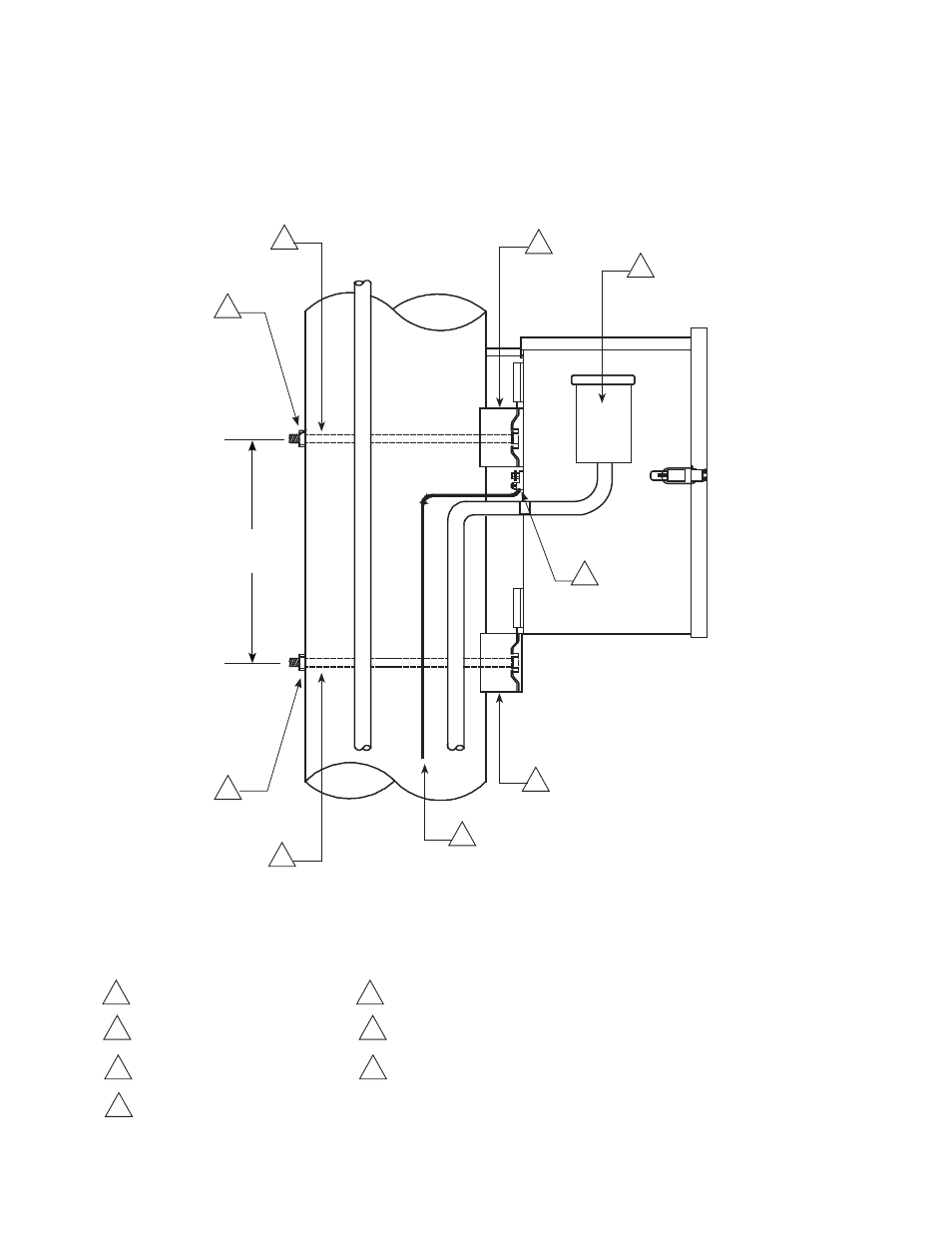

Fig. 2-2, Wooden Pole Installation
Upper mounting bracket
Service entrance
Enclosure ground fi tting
Lower Mounting bracket
#8 AWG (minimum) Copper Ground Wire to 8' Ground Rod
5/8" through bolt (2 places)
Nut and washer (2 places)
15 031-295-B0-001 Rev.A
2.0 Installation
2.1 Pole-mounted version, continued
2.1.2 Installation on Wooden Pole, continued
5
2
1
3
4
6
7
16.25"
2
1
6
7
6
7
4
3
5
