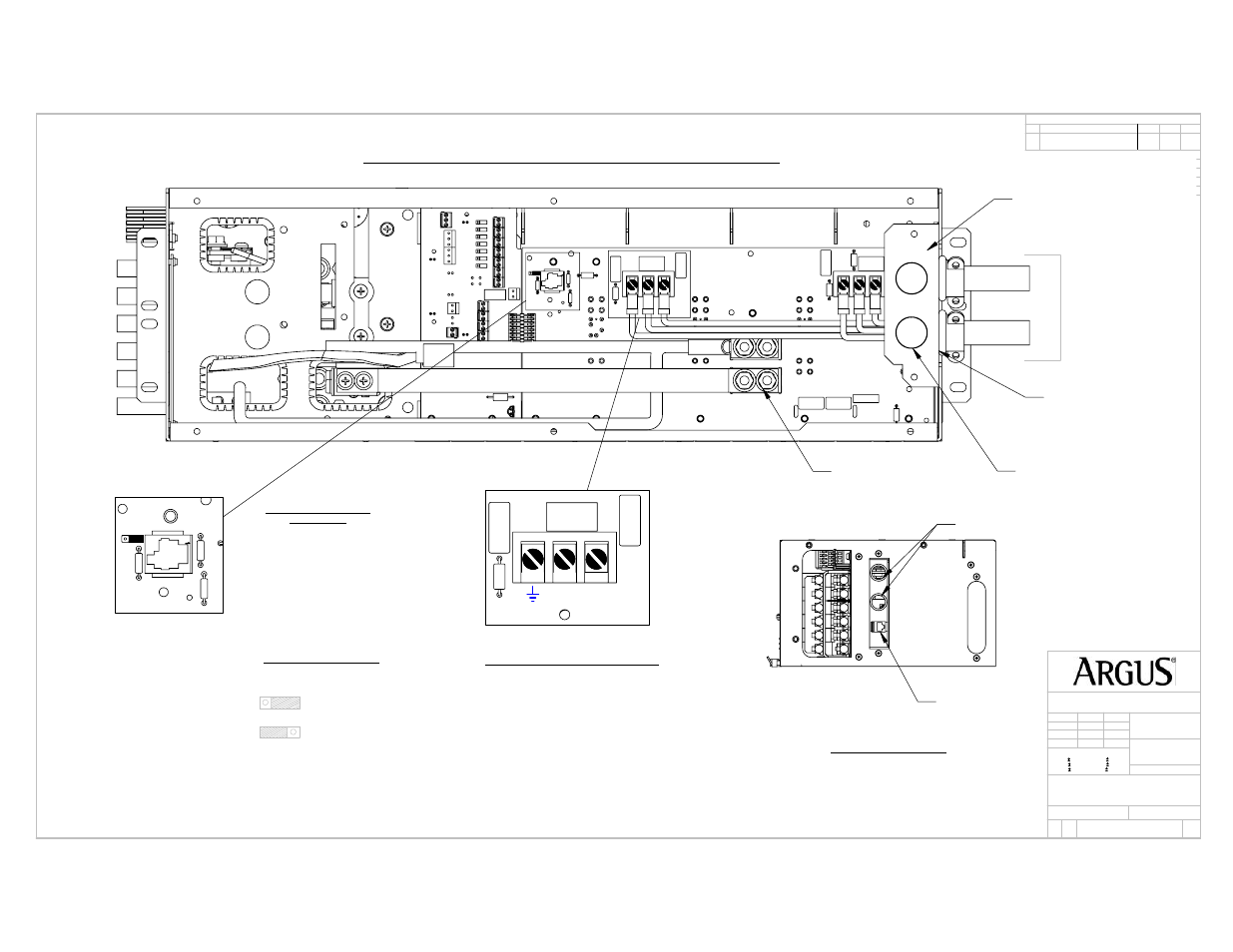

AC INPUT KNOCKOUT PLATE
(REVERSIBLE)
AC
INPUTS
1.125" KO
ACCEPTS 1" CONDUIT
.875" KO
ACCEPTS 3/4" CONDUIT USES 1/4"-20 HARDWARE
TIGHTEN TO 8 FT-LB
TB1 TB2
CAN UNTERMINATED
CAN OUT RJ12 OFFSET
PIN OUT (J3)
1. GND
2. CAN H
3. NOT CONNECTED
4. CAN L
5. NOT CONNECTED
6. NOT CONNECTED
JUMPER SETTING FOR P1
CAN TERMINATED
LIST 0,6 - 4 MODULE WITH CXC CONTROLLER & DISTRIBUTION
J3
E2 - COMMON (+)
E1 - LIVE (-)
J3
P1
P1
LINE
2
LINE
1
TB1
TYPICAL AC INPUT TERMNINAL BLOCK
( TB1 SHOWN )
RIGHT SIDE VIEW
SCALE 1 : 4
TB1 FEEDS RECTIFIERS 2,4
TB2 FEEDS RECTIFIERS 1,3
