A RGUS T ECHNOLOGIES C ORDEX 48-1 K W 23" S HELF FOR S YSTEMS UP TO 4000W WITH D ISTRIBUTION
4.7.1 DC Distribution Options
Consult the foldout drawings located at the rear of the manual.
4.7.1.1 Circuit Breaker Distribution Module
The shelf is factory-equipped with distribution of six AM-style bullet-type circuit breakers. See
1.3.
Remove the front panel of the distribution module to access the breaker positions and their
associated terminals, see Figure 2 below:
GMT fuse distribution
Circuit breaker distribution terminals

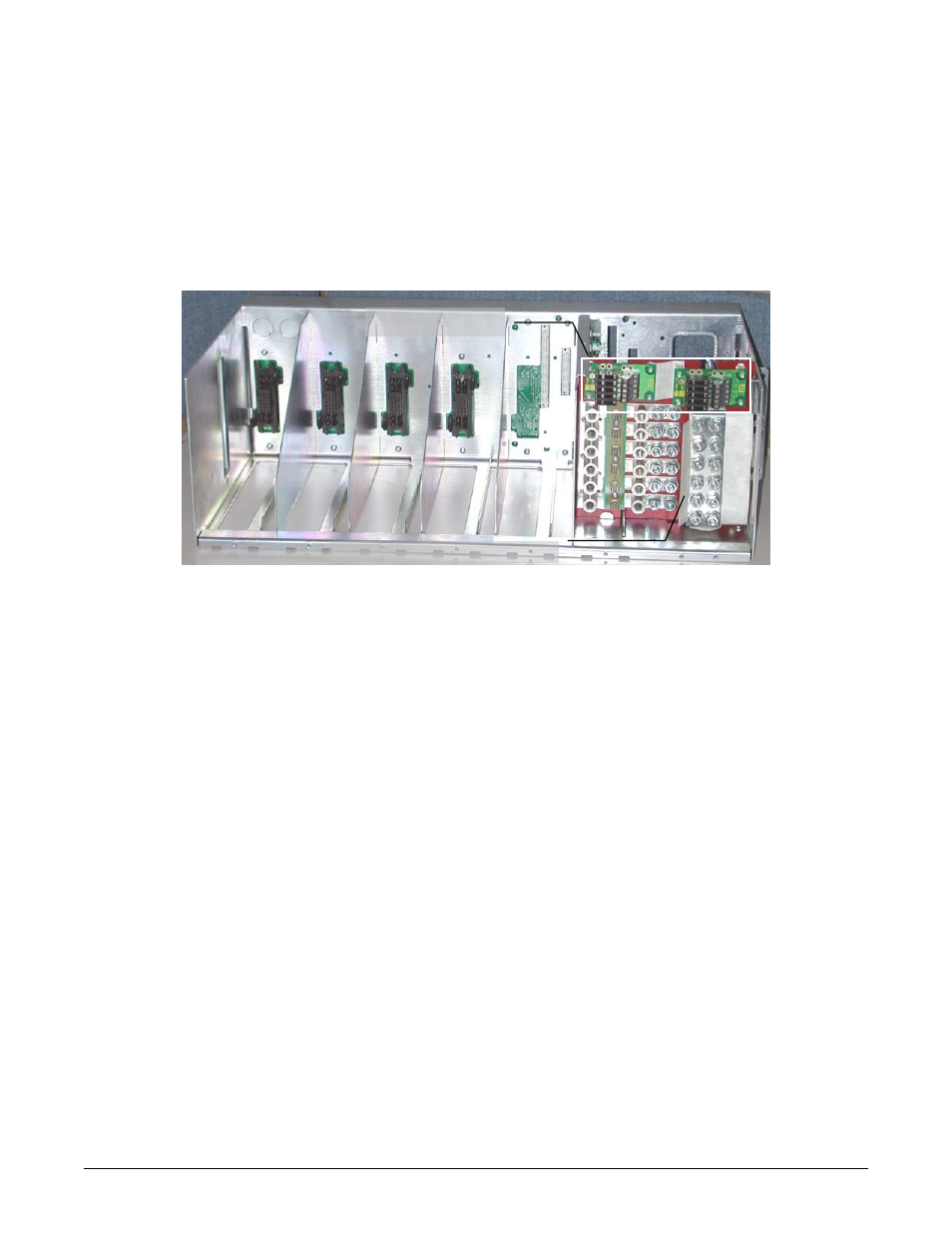

Figure 2–Front view of shelf with distribution (terminals exposed)
Caution: Battery breakers should be series-trip to achieve effective alarm
operation. In the case where there is no power on rectifiers, and if only one battery
breaker is used, when the breaker trips there will be no alarm.
4.7.1.2 Fuse Distribution (List Option 88)
The shelf may also be factory-equipped with ten GMT-style fuses as shown in Figure 2 above.
Remove the front panel of the distribution module to access fuses and the associated terminal
blocks.
4.8 CAN Serial Port
A single CAN Serial port, for communications with Argus’ Cordex rectifiers and other CAN-enabled equipment,
is located on the shelf backplane. A jumper allows setting of the CAN OUT to be open or terminated.
4.9 Ethernet Side Access (List Option 93)
The Ethernet port can be ordered mounted on the side of the shelf for front access.
4.10 Network Connection and Remote Communications via CXCM
The Cordex 48-1kW system can be set up, monitored and tested via ETHERNET 10/100 Base-T or with a RS-232
serial data connection. Some standard scenarios are described below:
• Network (TCP/IP secured by user) to (rear shelf) Ethernet port.
• Laptop to CXC via direct Ethernet connection.
• Computer to CXC (front panel) Craft port via RS-232 serial data connection.
