3. Features and functions

Pan/tilt/zoom network camera (PTZ)

20x motorized zoom lens

8 tours with up to 32 preset positions per tour

Dual stream: recording in HD, lower resolution for app access

Good pictures in low light (3D DNR noise reduction)

Control of the direction of view via network and RS-485

Privacy masking for hiding of third-party areas

Watchman and alarm functions (7 alarm inputs and 2 alarm outputs)

Protection class IP66 and integrated heating (outdoor dome only)
4. Device description
Model number TVIP81000 TVIP81100 TVIP82000 TVIP82100
Resolution 1280 x 720 (720p) 1920 x 1080 (1080p)
Outdoor area √ √

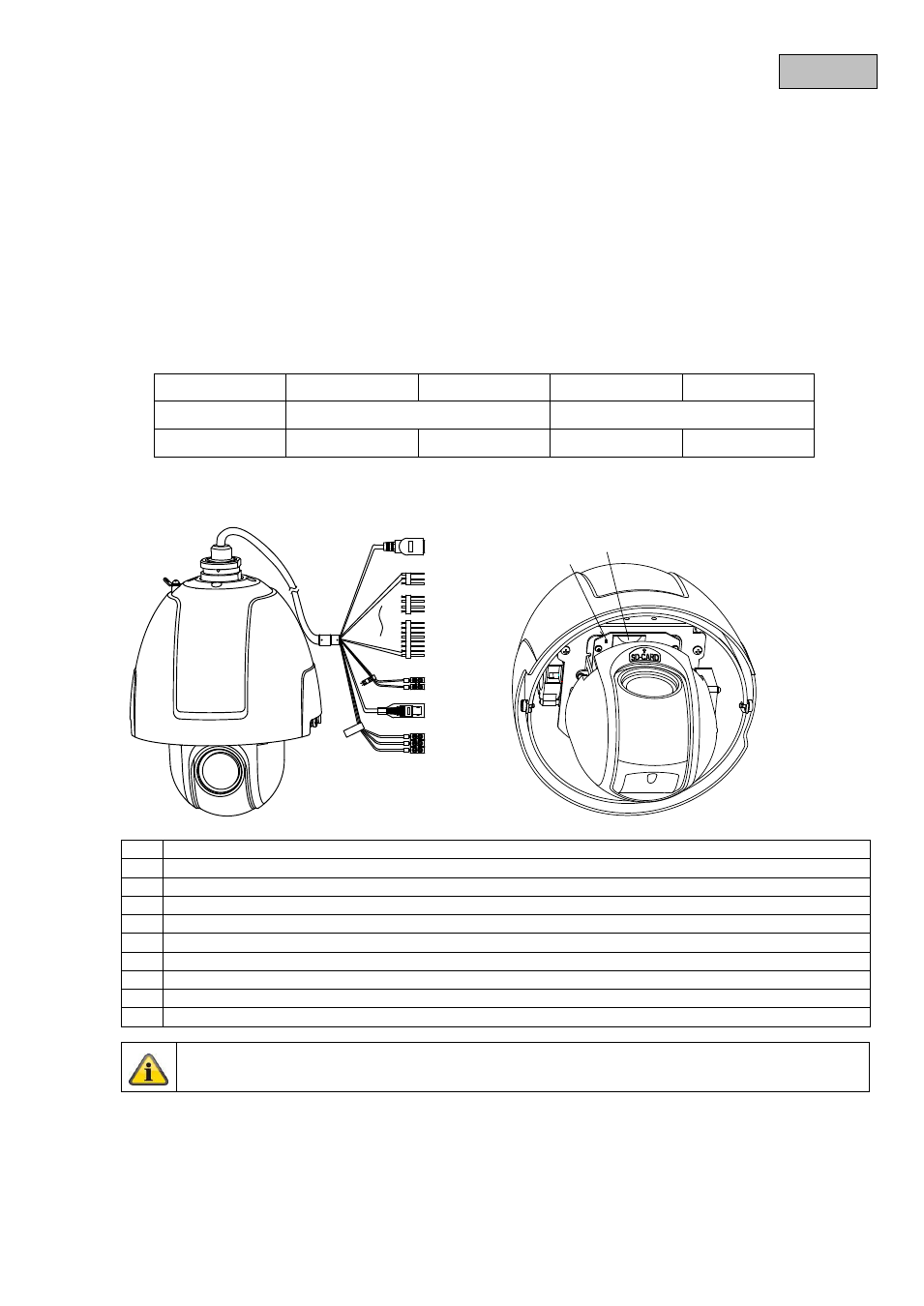

5. Description of the connections
6. Mounting / installation
Instructions and installation variants for the network dome cameras can be found in the quick guide
No. Description
1
Network cable
2 Audio
3 Alarm output
4 Alarm input
5 RS-485
6 BNC
7 Power supply
8 Slot SD card (not used)
9 Power LED
Please note that the connections for TVIP81000/TVIP81100/TVIP82000/TVIP82100 are all
identical.
1
RED
A C24 V
YEL LO W/ GR EEN
BLA CK
A C24 V
VI EO D
2
3
6
7
4
5
