Caratteristiche, Descrizione dei componenti, Montaggio – ABUS AZ4120 Terxon MX 8-zone Wireless Extension User Manual
Page 27
27
1. Caratteristiche
• 8 zone programmabili
• Controllo
manomissione
• Tecnologia
antenna
Duplex
• Collegamento semplice tramite BUS a 4 fili
• Compatibile con Terxon M / MX
• Frequenza di sicurezza 868MHz FM

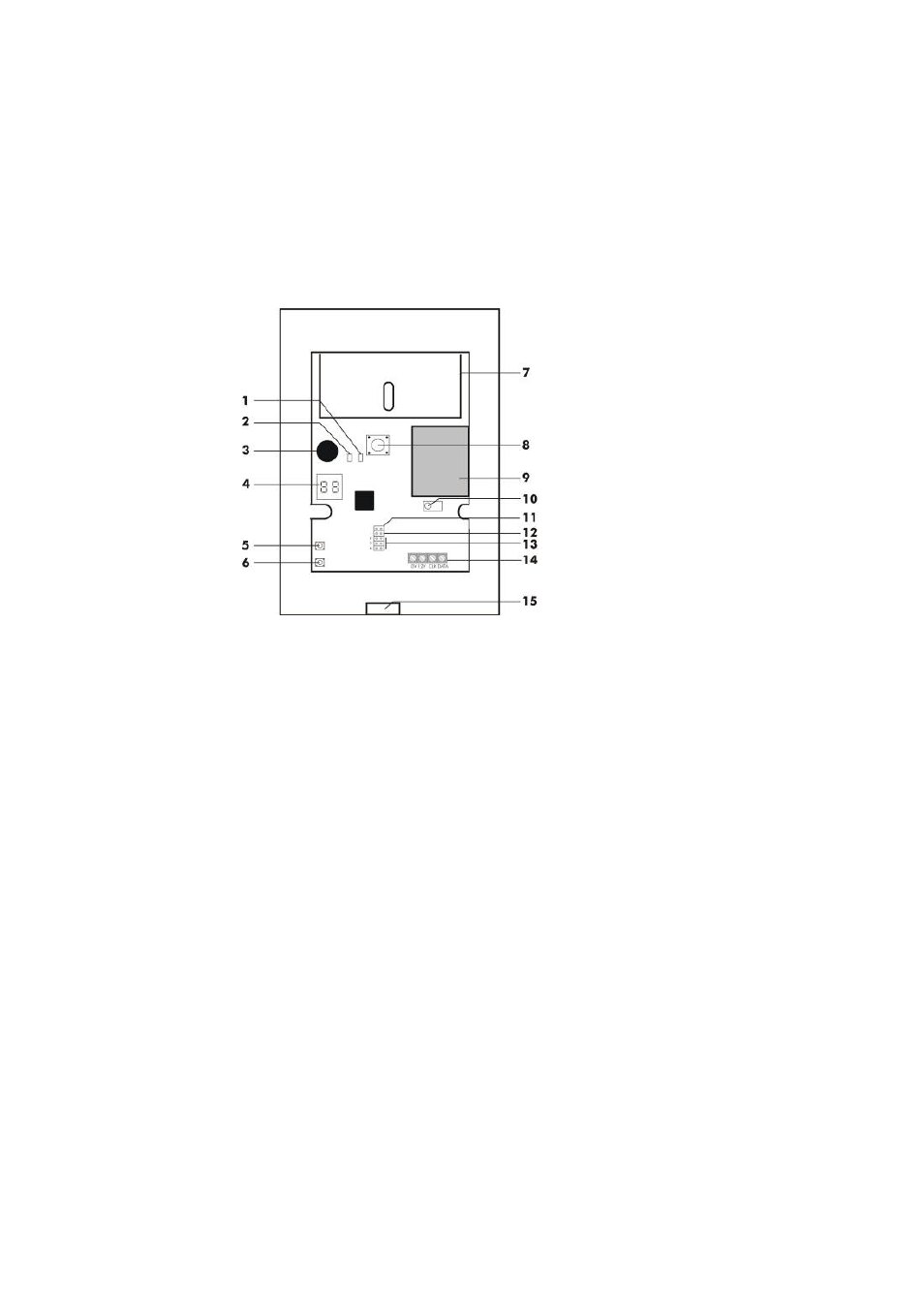

2.
Descrizione dei componenti
3. Montaggio
1. Aprire l'alloggiamento di ampliamento radio.
2. Allentare le 3 viti e rimuovere la scheda dalla parete
posteriore dell'apparecchio.
3. Utilizzare la parete posteriore del modulo di
ampliamento radio per contrassegnare i fori sul punto di
montaggio desiderato. Forare e inserire i tasselli
corrispondenti nei fori.
4. Inserire il cavo del BUS a 4 fili nell'apertura posta sul
lato posteriore del modulo.
1 LED guasti (Fail)
2 LED OK (Pass)
3 Generatore di segnale
4 Display
5 Tasto „Seleziona“ (Select)
6 Tasto „Elimina“ (Delete)
7 Antenna
8 Interruttore manomissione
9 Scheda radio
10 Sensore di inizializzazione
11 Ponticello di supervisione
12 Ponticello jamming
(mascheramento radio)
13 Ponticello di indirizzamento
14 Collegamento BUS
15 Apertura per cavo
