Karakteristiske træk, Beskrivelse af komponenterne, Montage – ABUS AZ4120 Terxon MX 8-zone Wireless Extension User Manual
Page 22
22
1. Karakteristiske
træk
• 8 programmerbare zoner
• Sabotageovervågning
• Dupleks-antenne-teknologi
• Nem tilslutning vha. 4-tråds BUS
• Kompatibel med Terxon M / MX
• 868 MHz FM sikkerheds-frekvens
2.

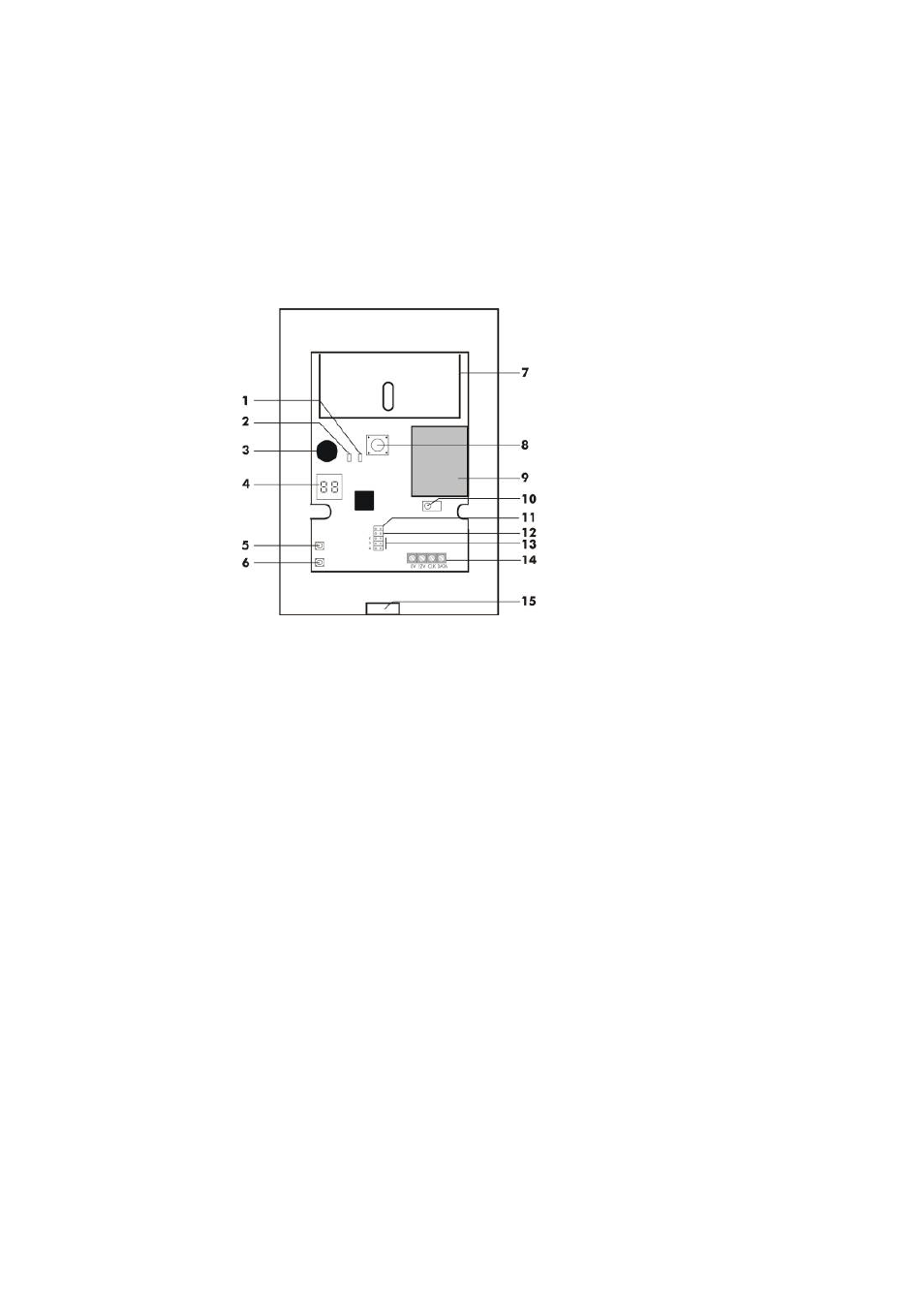

Beskrivelse af komponenterne
3. Montage
1. Åbn kabinettet af radioudvidelsen.
2. Løsn de 3 skruer og fjern printpladen fra apparatets
bagvæg.
3. Brug bagsiden af radioudvidelsen til at markere
borehullerne på det ønskede montagested. Bor de
tilsvarende huller og sæt plugs i borehullerne.
4. Stik kablet fra 4-tråds BUS'en gennem åbningen på
bagsiden af modulet.
5. Fastgør kabinettets bagside med passende skruer på
det ønskede monteringssted og isæt printkortet igen.
1 Fejl-LED (Fail)
2 OK-LED'er (Pass)
3 Signalgiver
4 Display
5 Knap "Vælg" (Select)
6 Knap "Slet" (Delete)
7 Antenne
8 Sabotageafbryder
9 Radio-printkort
10 Indlærings-sensor
11 Supervision-jumper
12 Jamming-jumper
(radiooverlejring)
13 Adresserings-jumper
14 BUS-tilslutning
15 Kabelåbning
