ABUS AZ4250 Terxon LX 8-zone Wired Extension with PSU User Manual
Page 28
28

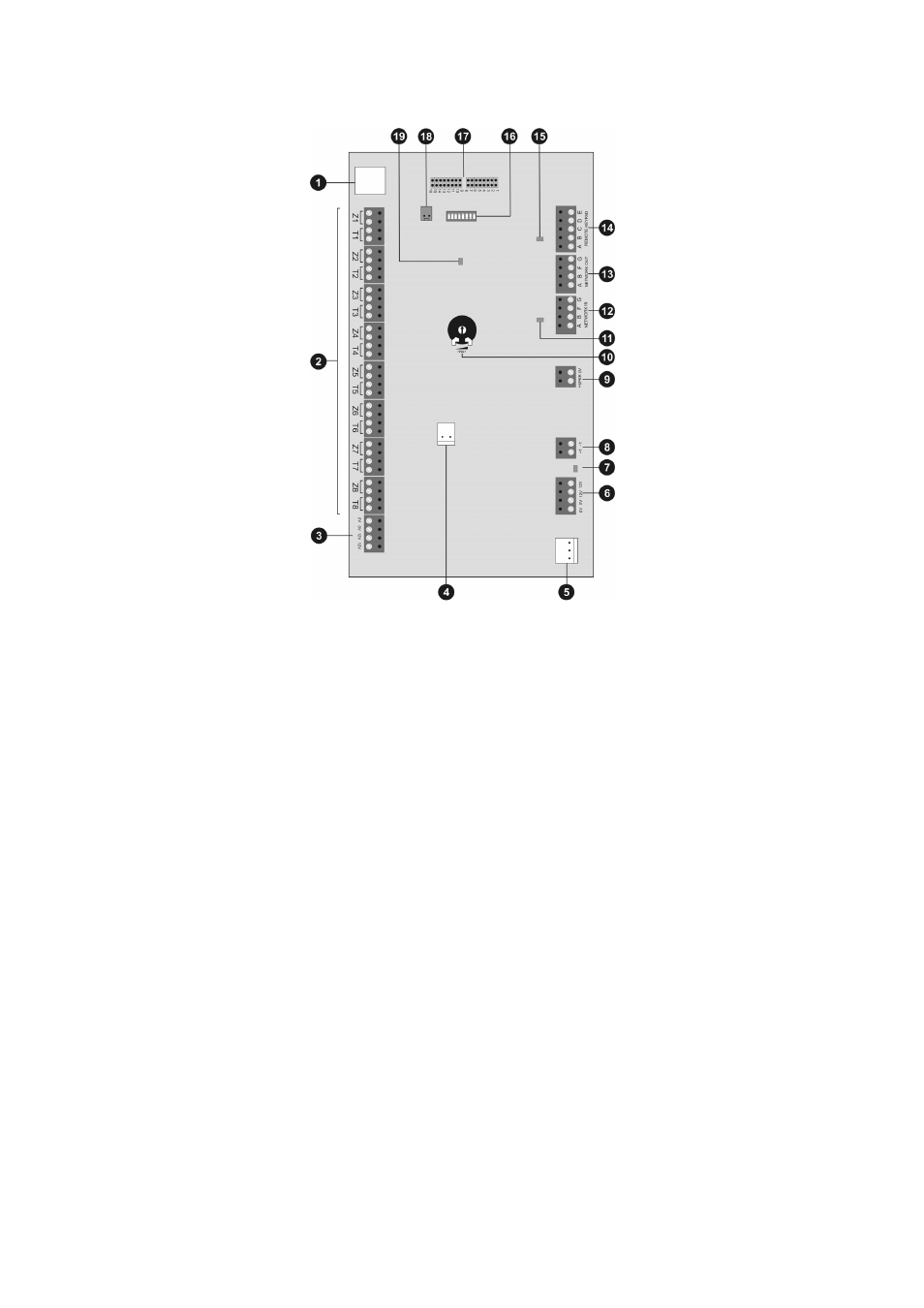

3.
Descrizione delle componenti e programmazione
1.) Non utilizzato
2.) CABLAGGIO ZONE
Ogni zona può essere cablata diversamente. Generalmente, i contatti
dei rivelatori sono NC (chiusi normalmente); nel caso in cui preferiate la
modalità NO (normalmente aperto) dovete invertire le zone.
Nota: L’alimentazione di tensione dei rivelatori è fornita tramite due linee
supplementari da allacciare ai collegamenti AUX (+12 V DC / 0 V).
- cablaggio NC (CCL)
- cablaggio FSL (DEOL)
- cablaggio antimascheramento:
