ABUS AZ4250 Terxon LX 8-zone Wired Extension with PSU User Manual
Page 23
23
3.

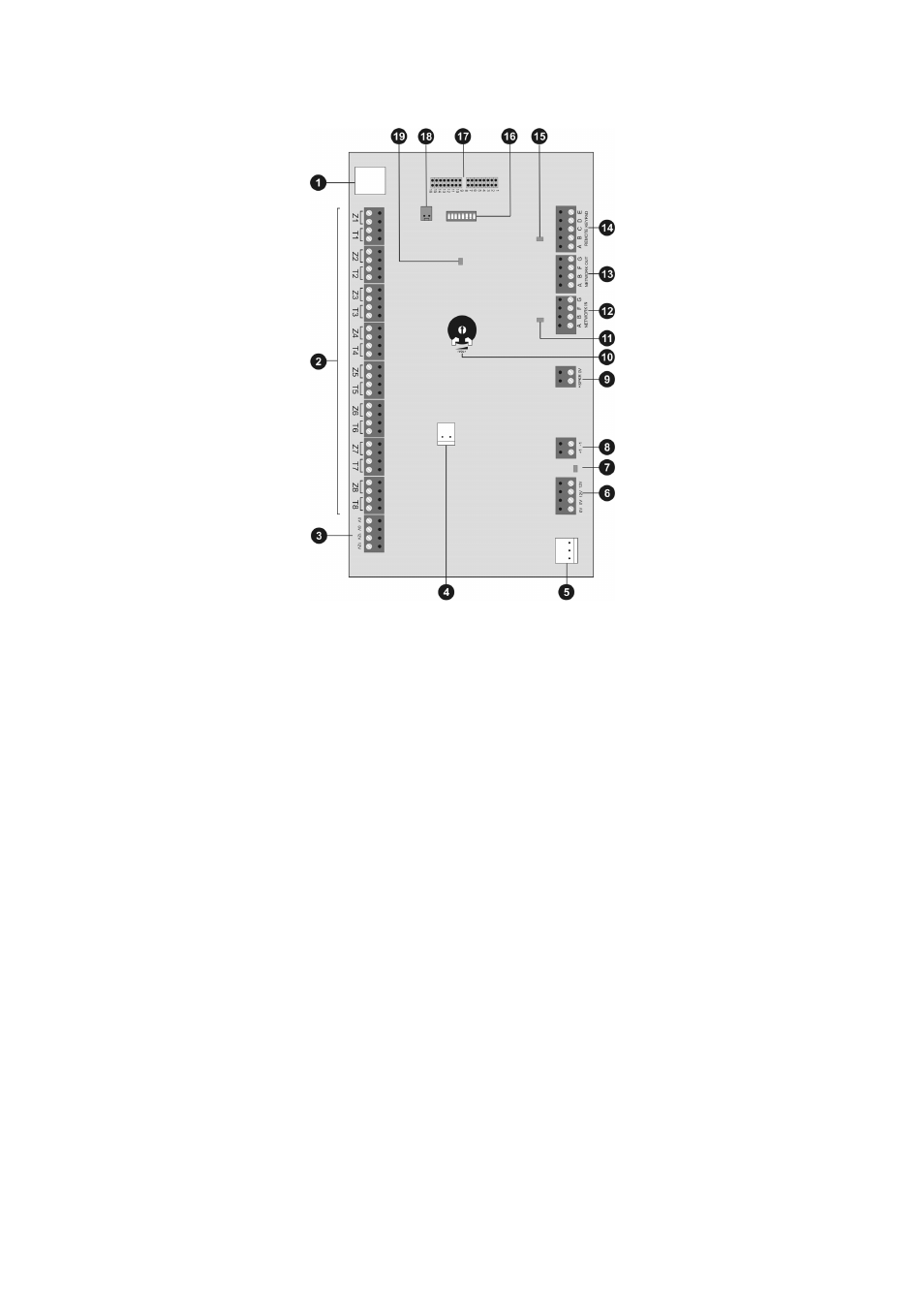

Beschrijving van de onderdelen en programmering
1.) Niet in gebruik
2.) ZONEBEDRADING
Elke zone kan verschillend aangesloten worden. De contacten van de
melder zijn zoals gewoonlijk NC (normaal gesloten); indien u het procé-
dé NO (normaal open) wenst, moet u de zones inverteren.
Opmerking: de spanningsvoorziening van de melder gebeurt via twee
extra leidingen voor de verbindingen naar de aansluitingen AUX
(+12 V DC / 0 V).
- NC-bedrading (CCL)
- FSL-bedrading (DEOL)
- Anti-maskering-bedrading:
