ABUS AZ4250 Terxon LX 8-zone Wired Extension with PSU User Manual
Page 18
18
3.

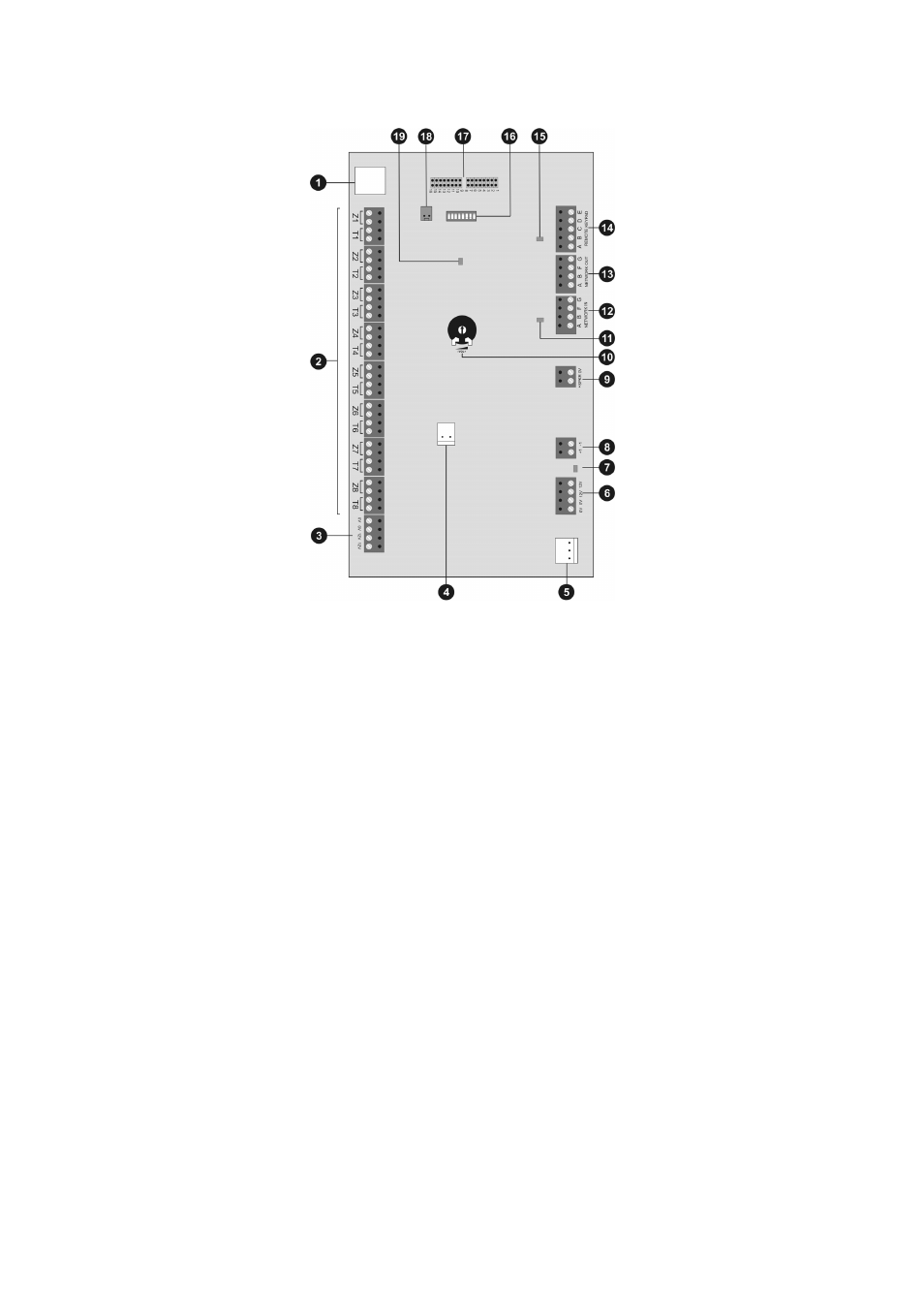

Beskrivelse af komponenter og programmering
1.) Ikke anvendt
2.) LEDNINGSFØRING FOR DE ENKELTE ZONER
Hver zone kan have en forskellig ledningsføring. Meldernes kontakter
er normalt NC (normal lukket); hvis du ønsker reaktionen NO (normal
åben), skal zonerne inverteres.
Henvisning: Spændingsforsyningen til melderne sker via to ekstra
ledninger til forbindelserne til tilslutningerne AUX (+12 V DC / 0 V).
- NC-ledningsføring (CCL)
- FSL-ledningsføring (DEOL)
- Anti-maskeringsledningsføring:
