LFVRS 9-BUTTON CONTROL INSTRUCTIONS (Sold separately)
A 9-button external driver control can be purchased from Acuity Brands Lighting Controls Group (Part:
LFVRS). The Ethernet cable from the LFVRS will be plugged into the “Network DMX512 In” port of the LED
driver(s) you wish to control.

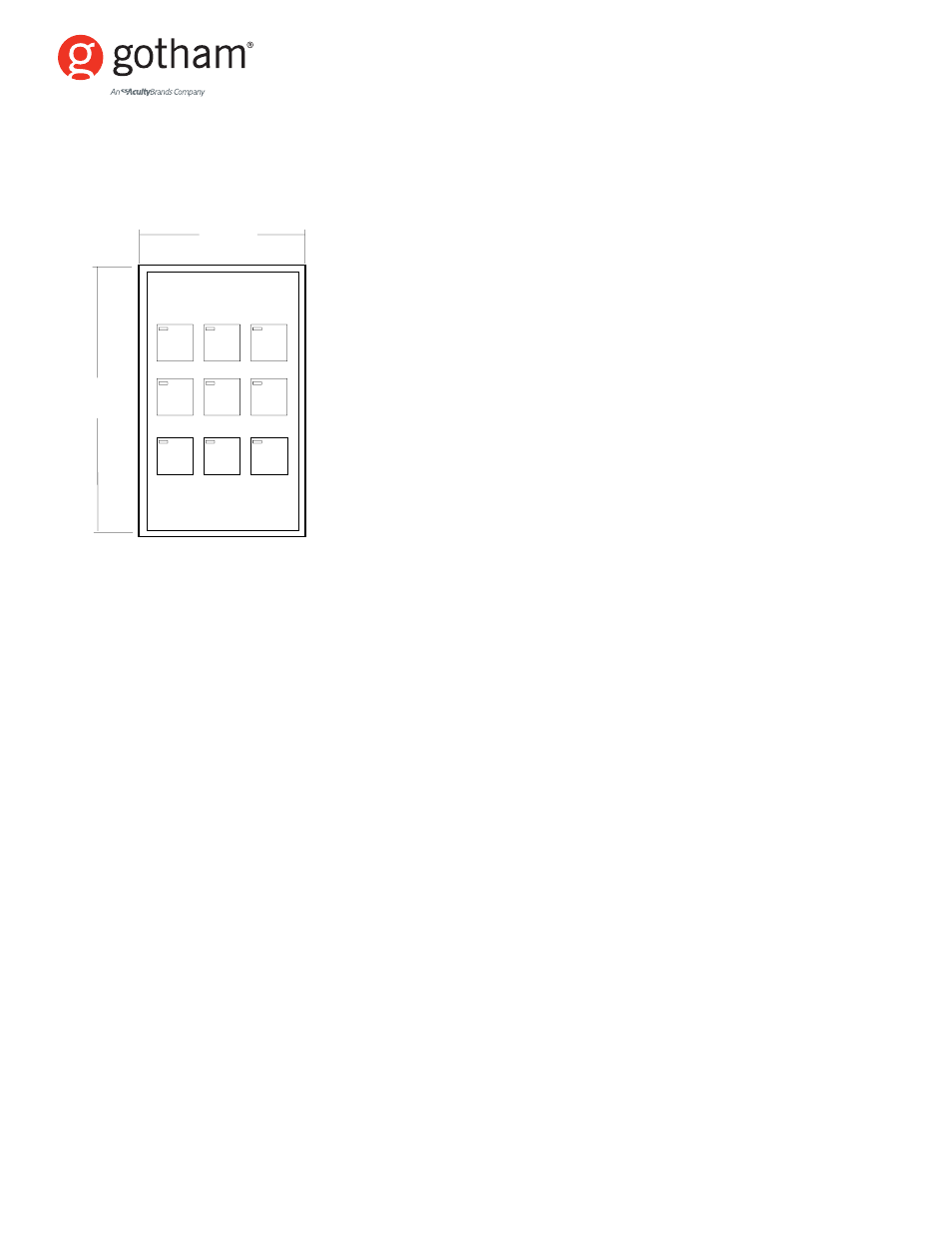

Figure 8
LFVRS 9-BUTTON CONTROL COLOR CYCLE
Depress buttons 1-3-7-9 simultaneously (see Figure 8) until the indicator lights on the buttons flash, then
select a color cycle by pressing:
1. Red-Green-Blue Triangle
2. Red-White-Green-White-Blue-White
3. Red-Off-Green-Off-Blue-Off
4. Red-Green Oscillate
5. Red-Blue Oscillate
6. Green-Blue Oscillate
7. Red Oscillate
8. Green Oscillate
9. Blue Oscillate
LFVRS 9-BUTTON CONTROL CYCLE TIMING
1. Hold button of color cycle (1-9 above) down for 3 seconds to bring the driver into timing mode.
2. After 3 seconds, tap the button until desired timing is achieved. The LED indicator light on the button
will flash the following sequences to indicate timing of the color cycle.
3. To save the timing, hold button down for three seconds.
4
1 2 3
4 5 6
7 8 9
2 -7/8
(73)
4 -5/8
(117)
*All dimensions are inches (millimeters)
1 LED flash - 5 seconds
2 LED flashes - 15 seconds
3 LED flashes - 30 seconds
4 LED flashes - 45 seconds
5 LED flashes - 1 minute
6 LED flashes - 5 minutes
7 LED flashes - 30 minutes
8 LED flashes - 1 hour
9 LED flashes - 6 hours
10 LED flashes - 12 hours
11 LE
D flashes - 24 hours
No LED flashes - Static
