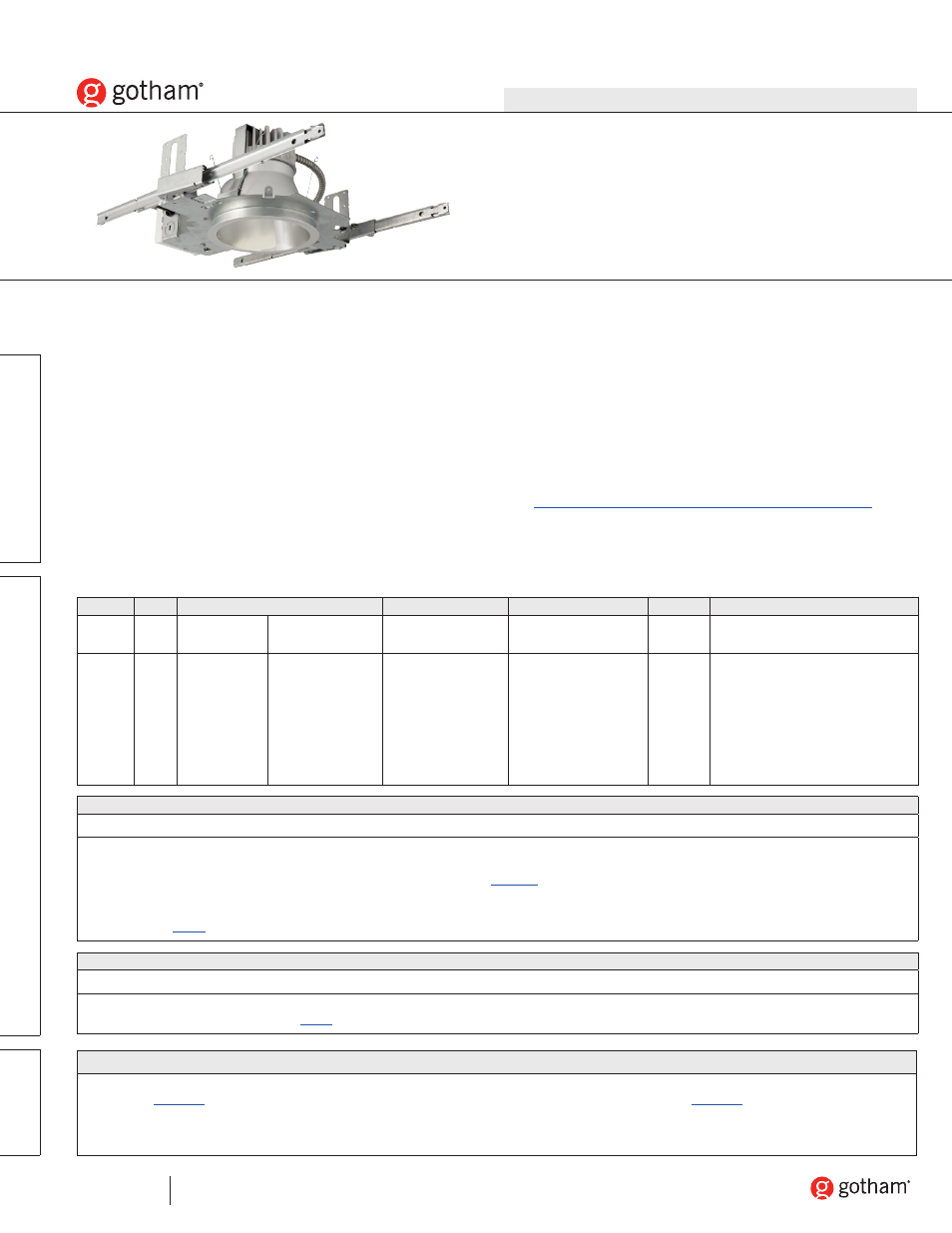

6” evo
Luminaire Type:
Catalog Number
(autopopulated):
© 2010-2013 Acuity Brands Lighting, Inc. All Rights Reserved. Rev. 10/31/13. Specifications subject to change without notice.
PAGE 1 OF 3
EVO-WW-6
Gotham Architectural Downlighting
LED Downlights
6” Evo
®
Open Wallwash
Solid-State Lighting
FE
AT
U
RE
S
OR
DER
ING
IN
FO
RM
AT
ION
N
OT
ES
OPTICAL SYSTEM
•
Self-flanged semi-specular, matte-diffuse or specular lower reflector
•
Patented Bounding Ray™ optical design (U.S. Patent No. 5,800,050)
•
45° cutoff to source and source image
•
Anodized kicker reflector
MECHANICAL SYSTEM
•
16-gauge galvanized steel construction; maximum 1-1/2” ceiling thickness
•
Telescopic mounting bars maximum of 32” and minimum of 15”, preinstalled,
4” vertical adjustment
•
Toolless adjustments post installation
•
Junction box capacity: 8 (4 in, 4 out ) 12AWG rated for 90°C
•
Light engine and driver accessible through aperture
ELECTRICAL SYSTEM
•
Fully serviceable and upgradeable LED light engine
•
70% lumen maintenance at 60,000 hours based on IESNA LM-79-2008
•
120-277VAC, 50/60hz power supply with 0-10V dimming (10-100%); rated for
50,000-hour life
•
Overload and short circuit protected
LISTINGS
•
Fixtures are CSA certified to meet US and Canadian standards; wet location,
covered ceiling
WARRANTY
•
5-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
EXAMPLE: EVO WW 35/10 6AR 120
Series
Type
Color
temperature
Nominal
lumen values
Aperture/Trim color
Finish
Voltage
Driver
EVO
WW
27/
2700 K
30/
3000 K
35/
3500 K
41/
4100 K
10
1000 lumens
14
1400 lumens
18
1800 lumens
22
2200 lumens
6AR
Clear
6PR
Pewter
6WTR
Wheat
6GR
Gold
6WR
1
White
(blank)
Semi-specular
LD
Matte diffuse
LS
Specular
MVOLT
120
277
347
(blank)
2
0-10V dimming driver. Mini-
mum dimming level 10%
ECOS2
3,4
Lutron
®
Hi-Lume
®
2-wire
forward-phase dimming driver.
Minimum dimming level 1%
ECOS3
2,3
Lutron
®
Hi-Lume
®
3-wire or
EcoSystem
®
dimming driver.
Minimum dimming level 1%
Options
SF
Single fuse
RRL
RELOC
®
-ready luminaire. Provides compatibility with Lithonia RELOC system. Access above ceiling required.
NEPP
Interface for Sensor Switch
®
nLight
®
network with integral power supply
TRW
5
White painted flange
NSD
Sensor Switch
®
nLight
®
dimming relay. One 5A relay with one 0-10 VDC dimming output, shipped installed.
TRBL
Black painted flange
EL
6,8
Emergency battery pack with integral test switch
ELR
6,8
Emergency battery pack with remote test switch
CP
7
Chicago plenum
BGTD
Bodine generator transfer device
ACCESSORIES order as separate catalog numbers (shipped separately)
CTA4-8 YK
Ceiling thickness adapter (extends mounting frame to accommodate ceiling thickness up to 2”).
ISD BC
0-10V wallbox dimmer
ORDERING NOTES
1.
Not available with finishes.
2.
3.
Not available with NEPP option.
4.
120V only.
5.
Not available with white reflector.
6.
7.
Not available with EL or ELR options.
8.
Must specify 120 or 277V.
