Extron Electronics TPS150 User Guide User Manual
Page 33
4-5
TPS150 Switching and Transmission System • Serial Communications
9
.

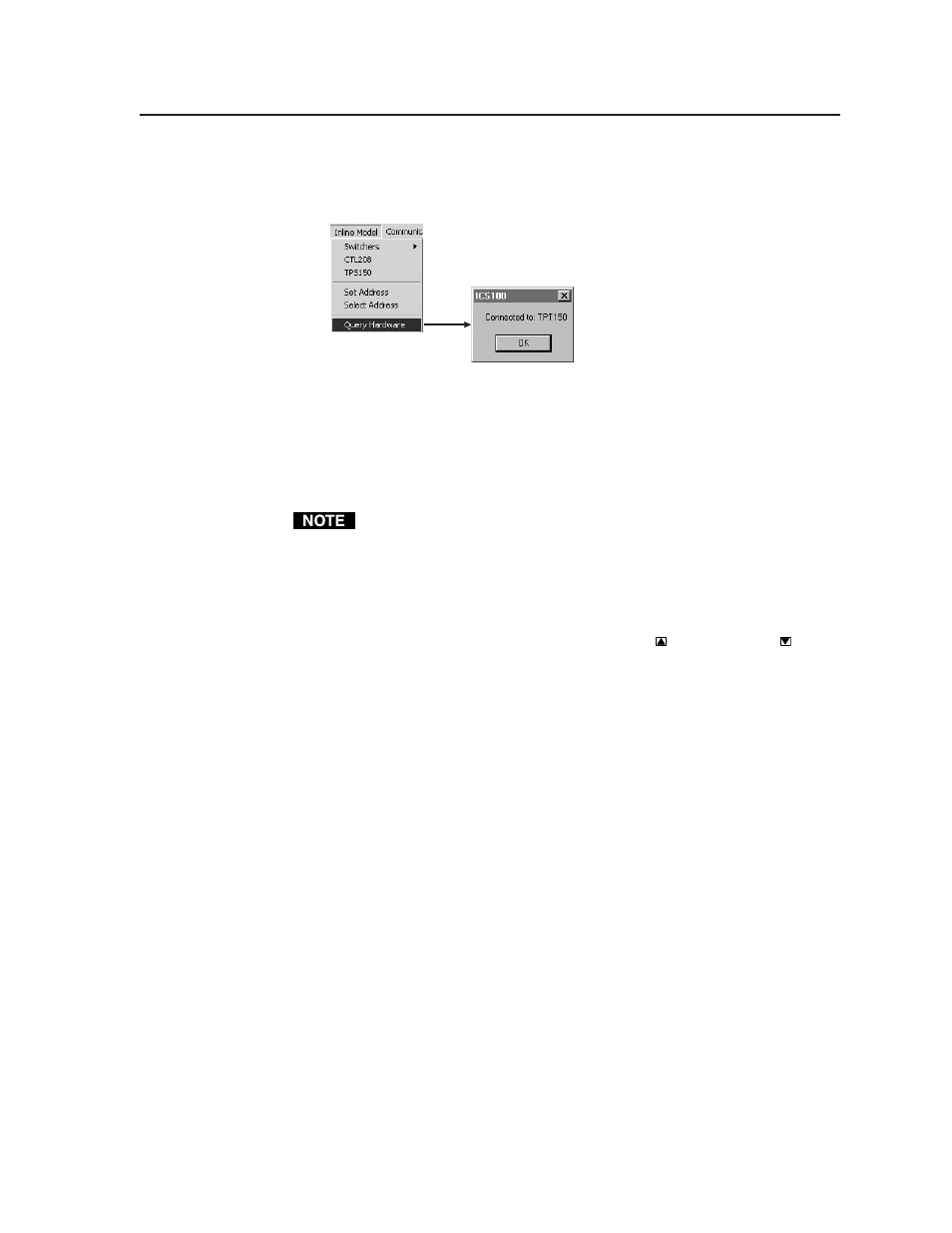

Click Inline Model > Query Hardware to configure the ICS100 program to
communicate with the TPT150 and to confirm that communications have been
established with the transmitter. The connected window appears (figure 4-5).
Figure 4-5 — Connected window
10
.
Click OK.
11
.
Use the software to configure serial port settings, program the input and
projector codes, and/or operate the transmission system. See the procedures
on the following pages.
After you are finished sending commands to the transmitter, always end the
session by selecting a different address from the one assigned to the TPT150.
This prevents the transmitter from responding to commands meant for another
unit.
12
.
Click Inline Model > Select Address. The Addresses window (figure 4-4)
appears.
13
.
Click and drag on the slider or click the scroll up ( ) or scroll down ( )
button until an address other than the transmitter’s address is visible.
14
.
Click on the desired address.
15
.
Click OK.
