Page 15
2-3
TPS150 Switching and Transmission System • Installation
3
.
Insert the transmitter into the rack, aligning the holes in the mounting bracket
with those of the rack.
4
.
Secure the transmitter to the rack using the supplied machine screws.
Projector mounting the receiver
If desired, projector mount the receiver as follows:
1
.
Remove the rubber feet from the bottom of the receiver.
2
.
Attach the supplied 992547-2 projector pole mounting bracket to the receiver
with the four provided #8 machine screws.
3
.
Place a locally-obtained U-bolt around the projector pole and through the
slotted holes in the bracket (figure 2-2). Secure the bracket in place with
locally-obtained bolts.
CABLE EQ
U
ALIZA
TION
- ADJUST +
SELECT
LO
W FREQ
.
HIGH FREQ
.
PO
WER
TPR150
T
wisted P
air Video Receiver
Projector Mounting
Bracket

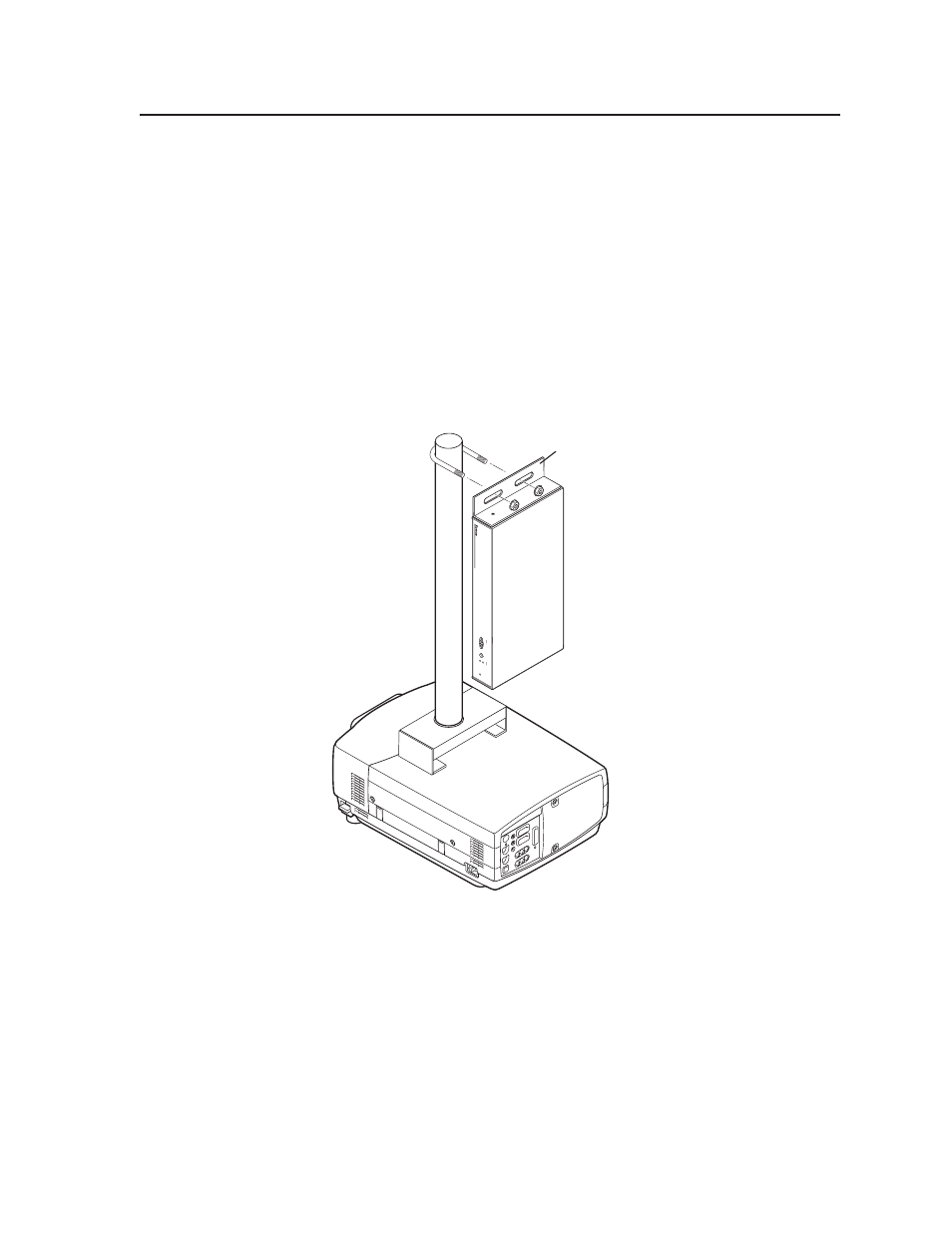

Figure 2-2 — Projector mounting the receiver
