4-3
TPS150 Switching and Transmission System • Serial Communications
Establishing communications with the program
The TPT150 transmitter will not operate properly unless it is connected to a
powered TPR150 receiver.
Start the control program and establish communications with the TPT150 as
follows:
1
.
Click Start > Programs > Extron > ICS100. The control program window
appears.
The TPS150 does not respond until it has been contacted with the valid
address.
If you have previously connected to the transmitter and have not addressed
any other device since then, after a moment, the program reports that it has
connected to a TPT150 (figure 4-1). Proceed to step 10.

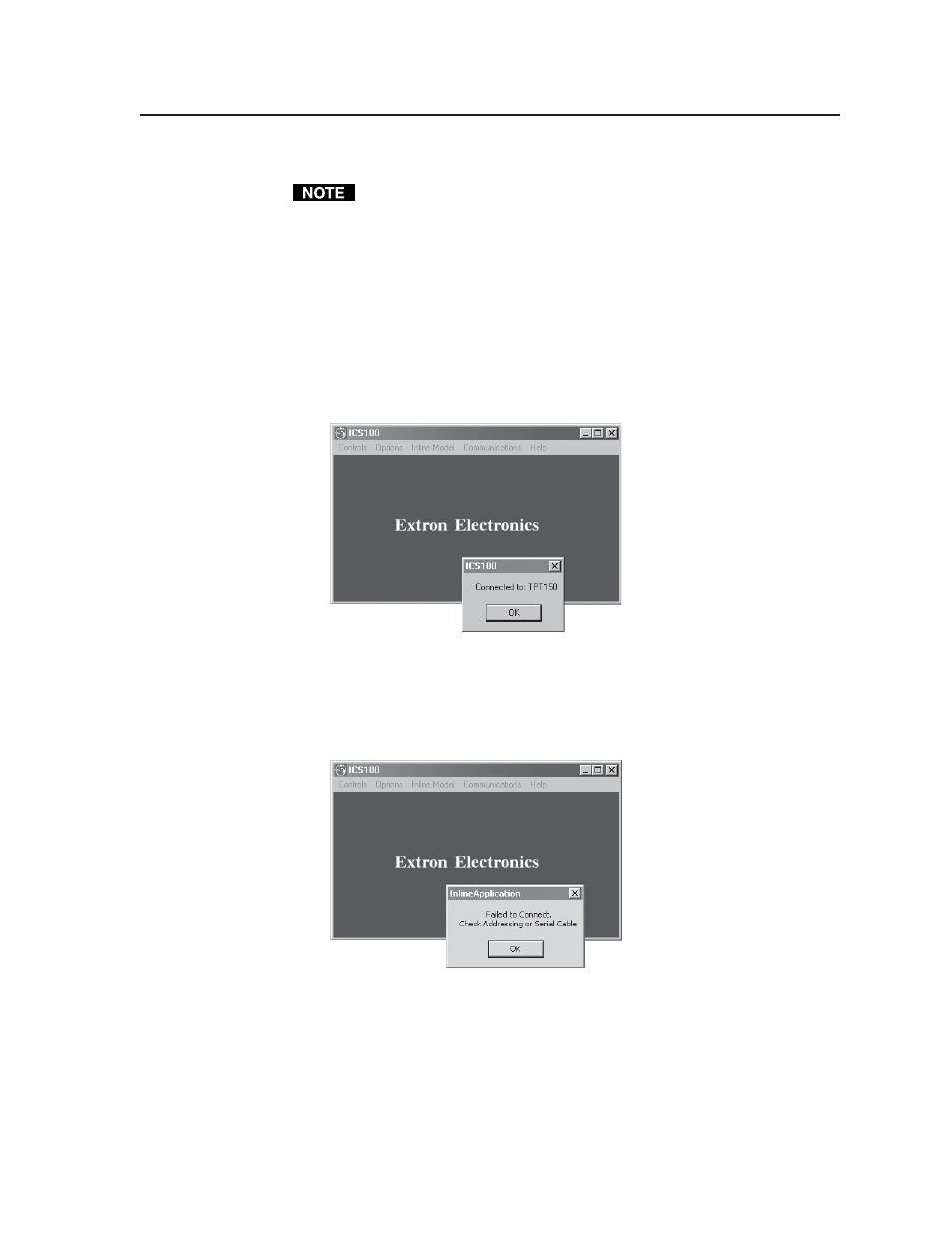

Figure 4-1 — ICS100 program window and connected message
If you have not connected to the transmitter before or if you have connected
to a different device since then, after a moment, the program reports a failure
to connect (figure 4-2). Continue to step 2.
Figure 4-2 — ICS100 program window and warning
