Front Panel Security Lockout (Executive Mode)
To prevent accidental or unauthorized changes to settings, the PVS switcher has
a front panel security lockout (executive mode) that limits users’ access to front
panel controls. When the executive mode is active, all functions are locked, and
a red lockout LED (next to the power LED) lights to indicate that executive mode
is on. When a button is pressed (or an encoder turned) during lockout mode, the
associated LED blinks three times at approximately 0.3 second intervals to indicate
lockout.
To turn executive mode on or off via the front panel:
1 . Press and hold input selection buttons 1 and 4 simultaneously for 4 seconds
(see figure 3-8).
2 . Release the buttons when the input selection #1 LED and the Lockout LED
blink once. The switcher has enabled or disabled the executive mode.
INPUTS
1 2 RGB 3 4 VIDEO
Press and hold buttons 1 and 4
simultaneously for 4 seconds.
The Lockout LED and the Input #1 LED blink once to
indicate that executive mode has been enabled/disabled.
Release the buttons.
INPUTS
1 2 RGB 3 4 VIDEO
A
UT
O SW
LOCK
OUT

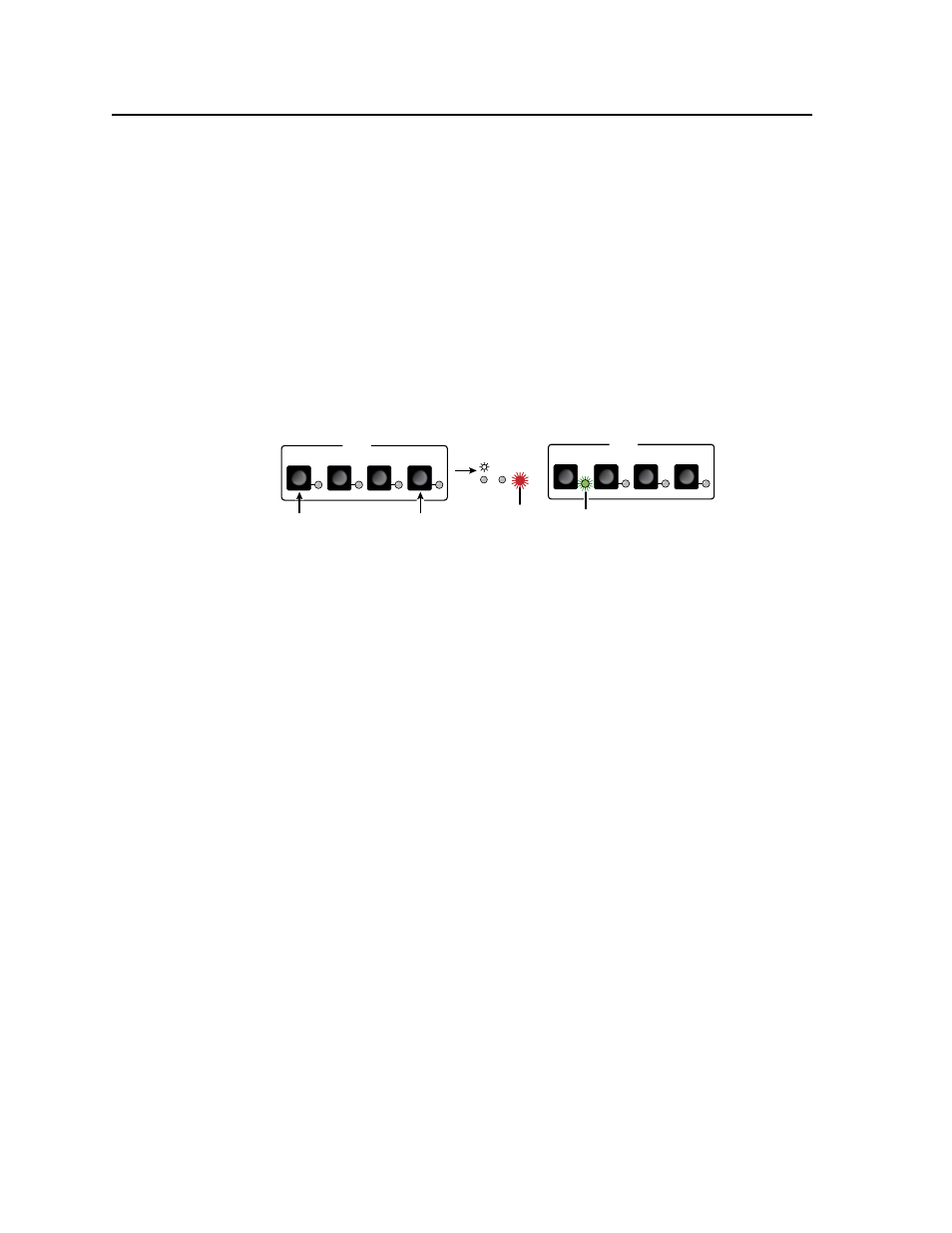

Figure 3-8 — Setting the executive mode via the front panel
N The lockout LED lights red when the executive mode is on.
This mode can also be turned on or off through RS-232 control. For details on
RS-232 control, see chapter 4, “Serial Communication”.
