Front panel features, Rear panel features – Extron Electronics PA 300 User Manual
Page 15
PA 300 Peaking Amplifier • Installation and Operation
2-7

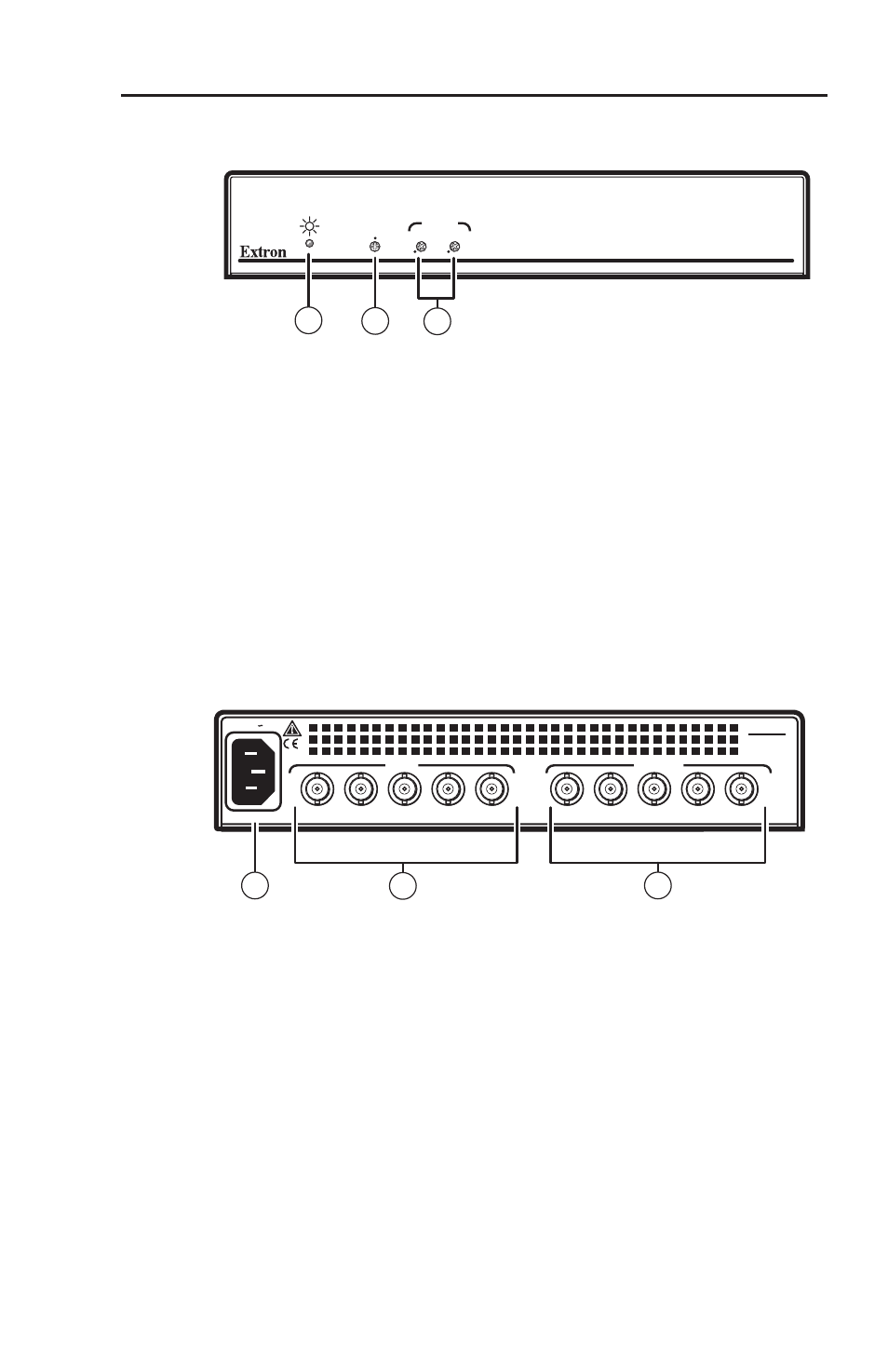

Front Panel Features
GAIN
PEAKING
PA 300
PEAKING AMPLIFIER
LF
HF
1
2
3
a
Power LED — Lights when the PA 300 is receiving power.
b
Gain control potentiometer — Adjusts the amount of
compensation for amplitude losses caused by cable resistance.
c
Peaking control potentiometers — provide optimum signal
compensation. Separate high and low frequency controls.
LF
— Provides adjustment to minimize image streaking.
HF
— Provides adjustment for achieving the best image detail.
Rear Panel Features
R
G
B
H/HV
V
PA 300
INPUT
OUTPUT
50/60 Hz
100-240V .3A
R
G
B
H/HV
V
1
3
2
a
AC power input connector — Attach a standard IEC power
cord (100 VAC to 240 VAC, 50 or 60 Hz).
b
Input BNC connectors — Connect to the input device.
c
Output BNC connectors — Connect to the output device.
