Video loop-back application – Extron Electronics LANCIAxi User Guide User Manual
Page 20
Extron • SENTOSA
xi
LQ & LANCIA
xi
LD • User’s Manual
Sentosa or Lancia
Installation and Operation
Page 2-9
Video Loop-Back Application

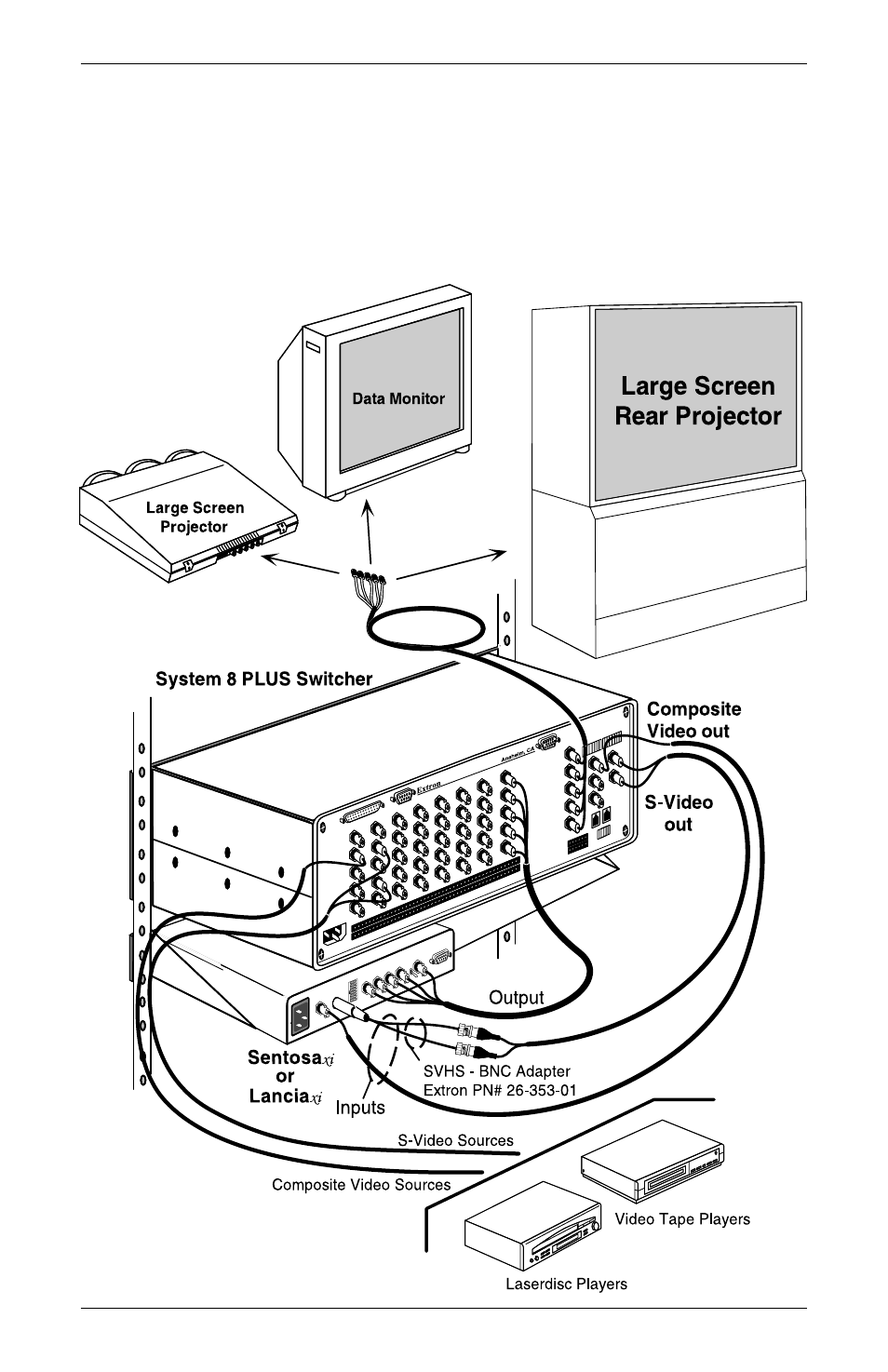

Pictured below is an application using the Video Loop Back output
from a System 8/10 PLUS Switcher as the input to a Sentosa
xi
LQ
or a Lancia
xi
LD. The output of the Sentosa
xi
/Lancia
xi
is
connected back to the last input (input 8 or 10) of the System 8/10
PLUS Switcher. This technique enables Line Doubling/Line
Quadrupling for all inputs to the System 8/10 PLUS.
