Extron • SENTOSA xi LQ & LANCIA xi LD • User’s Manual
Installation and Operation
Page 2-1
Installing the Sentosa xi xixi xixi /Lancia xi xixi xixi
If rack mounting is required it should be done before cabling,
otherwise, skip to “Cabling” below.
Rack Mounting
The Sentosa xi /Lancia xi can be rack mounted using one side of an
optional 19” 1U Universal Rack Shelf (Extron PN# 60-190-01).
To rack mount the Sentosa
xi /Lancia xi , do the following:
1. If feet were previously installed on the bottom of the case,
remove them.

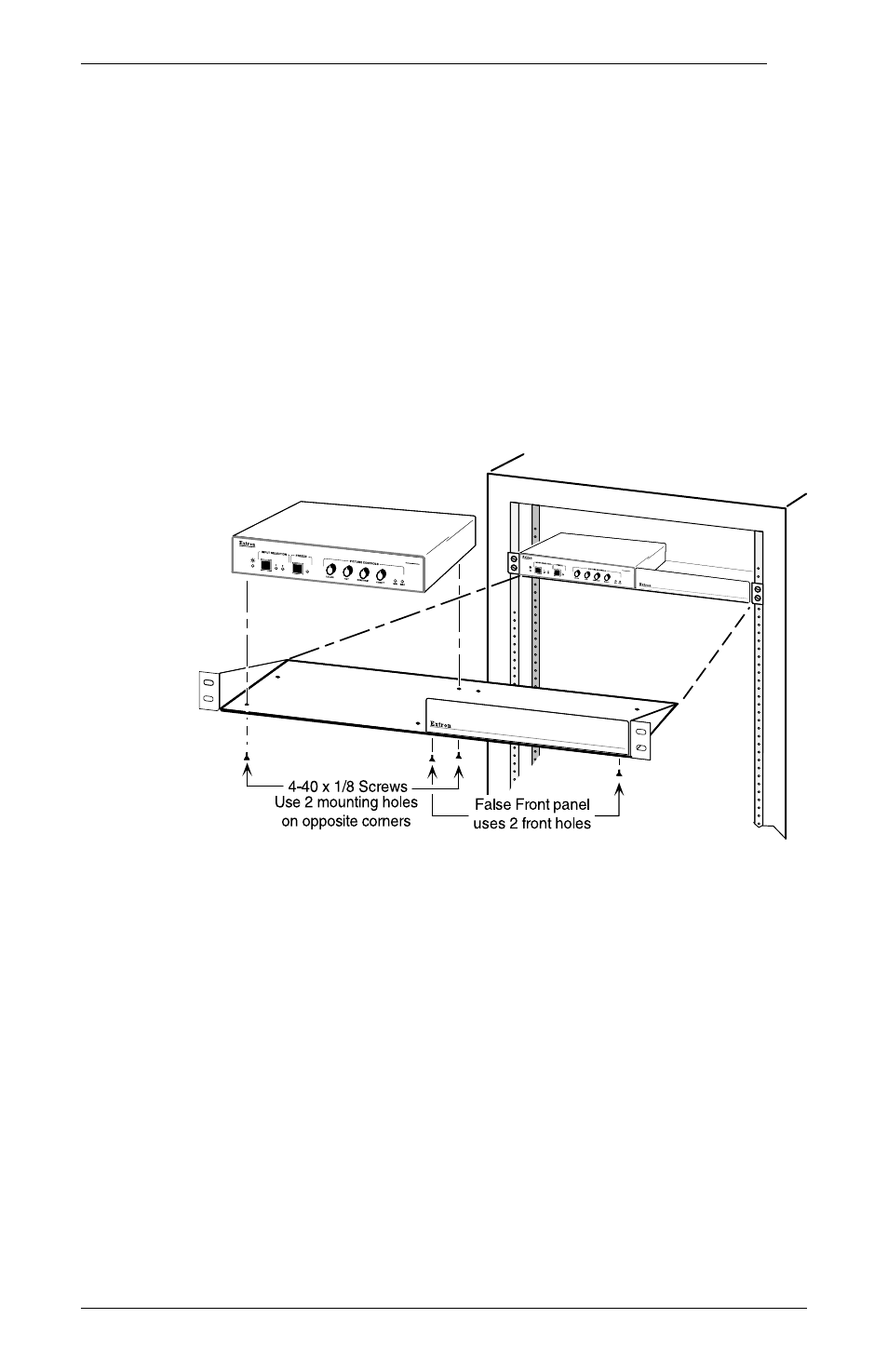

2. Mount the Sentosa xi /Lancia xi on the rack shelf as shown
below using two 4-40 x 1/8 screws in opposite (diagonal)
corners to secure the case to the shelf.
3. Upon completion of the rack mounting procedure, go to
“Cabling” below.
Cabling
The Sentosa xi /Lancia xi is capable of switching between two
inputs, one composite and one S-Video. Therefore, one of each
video input type may be connected.
Connecting the Input/Output Cables
1. Connect the input devices to the Sentosa xi /Lancia xi using the
appropriate cables as described below. Use the diagram on the
next page as a general guide.
A. If the input device to be connected has an S-Video output,
an S-Video cable will be used to connect it to the S-Video
input connector of the Sentosa
xi /Lancia xi .
B. If the input device to be connected has a composite video
output, a BNC cable will be used to connect it to the BNC
input of the Sentosa
xi /Lancia xi . The composite video output
from a VCR or Laser Disc Player will most likely require an
RCA to BNC adapter. An adapter of this type can generally
be purchased at a local electronics store.
