Extron Electronics LANCIAxi User Guide User Manual
Page 13
Extron • SENTOSA
xi
LQ & LANCIA
xi
LD • User’s Manual
Installation and Operation
Page 2-2
2. The BNC output connectors of the Sentosa
xi
/Lancia
xi
should
be connected to the display device using high resolution
coaxial cable such as Extron’s BNC-4 or BNC-5.

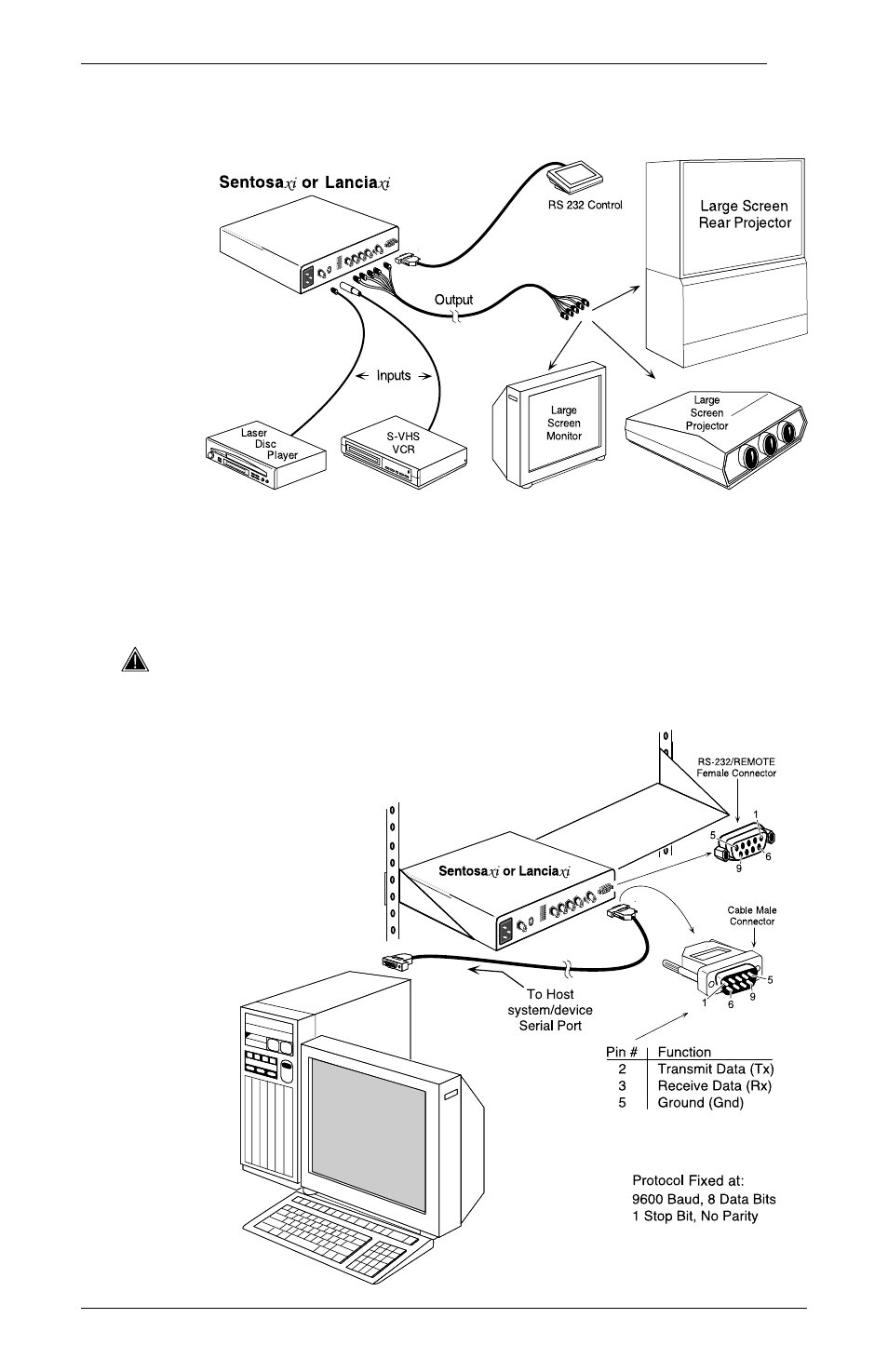

Connecting the RS-232 Cable
To connect the Sentosa
xi
/Lancia
xi
to a computer, refer to the
picture below and connect the user supplied RS-232 cable from
the Host system/device serial port to the Sentosa
xi
/Lancia
xi
connector labeled RS-232.
___ When connecting to the RS-232 port, connect only pins 2, 3 and 5.
Pins 1, 4 and 6 - 9 must be left unconnected as they are reserved
for “Remote Contact Closure Operation” – see page 3-5.
PC
Computer
