MTP T 15HD A Architectural Series • Introduction

3

NOTES:

The transmitters are for use with, and perform best with Extron Enhanced
Skew-Free AV cable terminated in accordance with the TIA/EIA T 568 A wiring
standard. CAT 5 cables are acceptable but less preferable. We also recommend
the use of pre-terminated and tested cables. Cables terminated on site should be
tested before use to ensure that they comply with Category 5 specifications.

The recommendations shown in the table on the previous page apply for a single
transmitter connected to a MTP receiver and for a daisy chain. For example, the
maximum suggested range for 1024 x 768 video is 300 feet (90 m) with
Pre-Peak off and 500 feet (150 m) with Pre-Peak on whether the system consists
of one transmitter and one receiver or a transmitter and three daisy-chained
receivers.

About the MTP T 15HD A WM

The MTP T 15HD A WM Twisted Pair Transmitter is a wall or furniture mountable version of
the MTP T 15HD A, and can be mounted into any standard Underwriters Laboratories (UL)
listed one-gang electrical wall box or by using the included mud ring.

AUDIO IN

MTP T 15HD A

COMPUTER IN

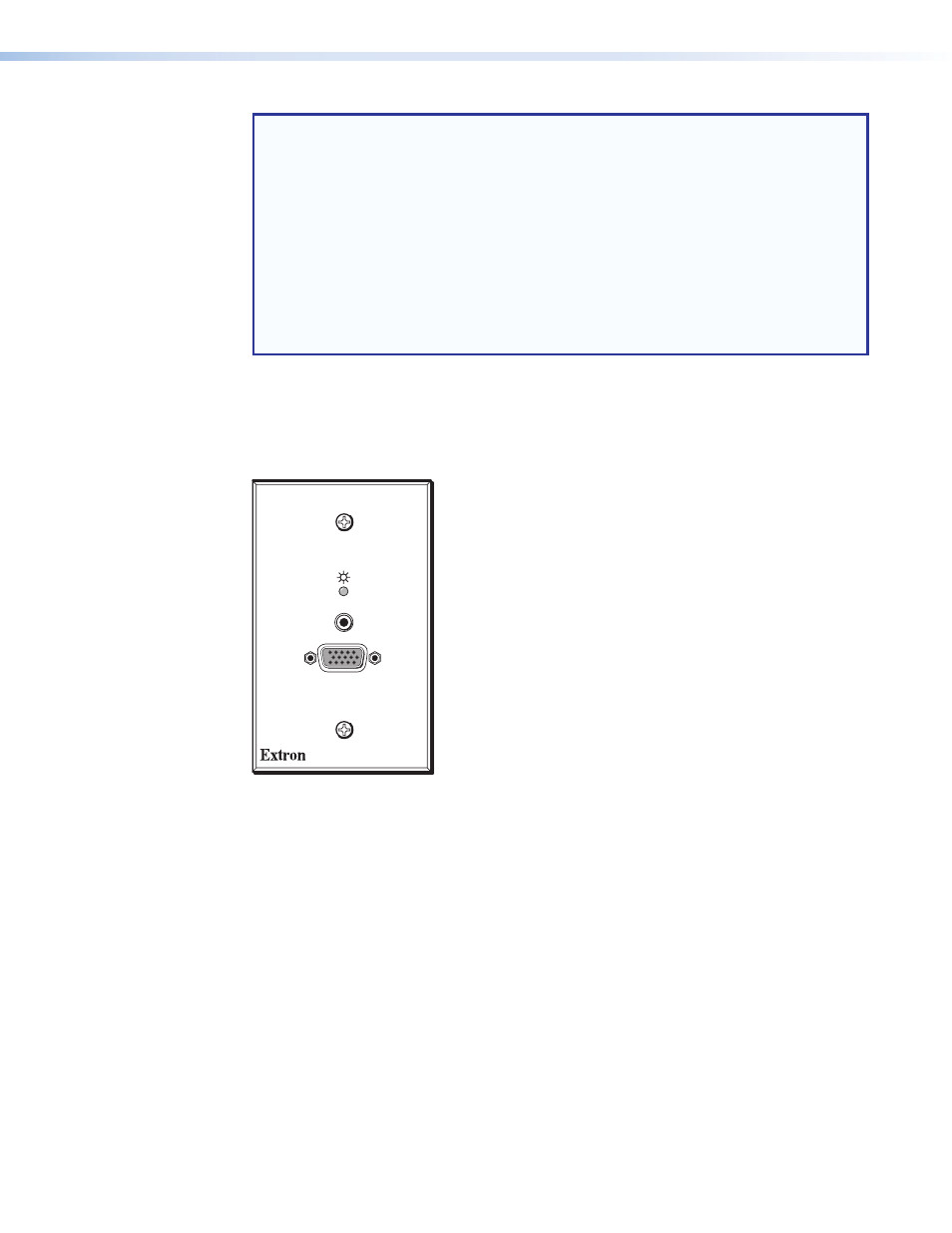

Figure 2.

MTP T 15HD A WM Face
